Full Engine Views

Component Locations:

A/C CLUTCH DIODE
A/C CLUTCH FIELD COIL
ASSEMBLY
BLOWER MOTOR
BLOWER MOTOR RESISTOR ASSEMBLY
BRAKE FLUID LEVEL SWITCH
BRAKE WARNING DIODE/RESISTOR
CLUTCH CYCLING PRESSURE SWITCH
COOLANT TEMPERATURE SENDER
DAYTIME RUNNING LAMPS (DRL) MODULE
ENGINE COMPARTMENT FUSE/RELAY BOX
ENGINE COMPARTMENT LAMP
FOG LAMP
FOG LAMP RELAY
FUEL PUMP RELAY
IGNITION CONTROL MODULE (ICM)
LEFT FRONT PARK/TURN LAMP
LEFT HEADLAMP
LEFT HORN
PCM POWER DIODE
POWER RELAY
RABS TEST CONNECTOR
REAR LAMP HARNESS-TO FRAME RAIL WIRING
RIGHT FOG LAMP
RIGHT FRONT PARK/TURN LAMP
RIGHT HEADLAMP
RIGHT HORN
SPEED CONTROL SERVO LOCATION
SPOUT CHECK CONNECTOR
WINDSHIELD WASHER PUMP
WINDSHIELD WIPER MOTOR
WOT CUTOUT RELAY

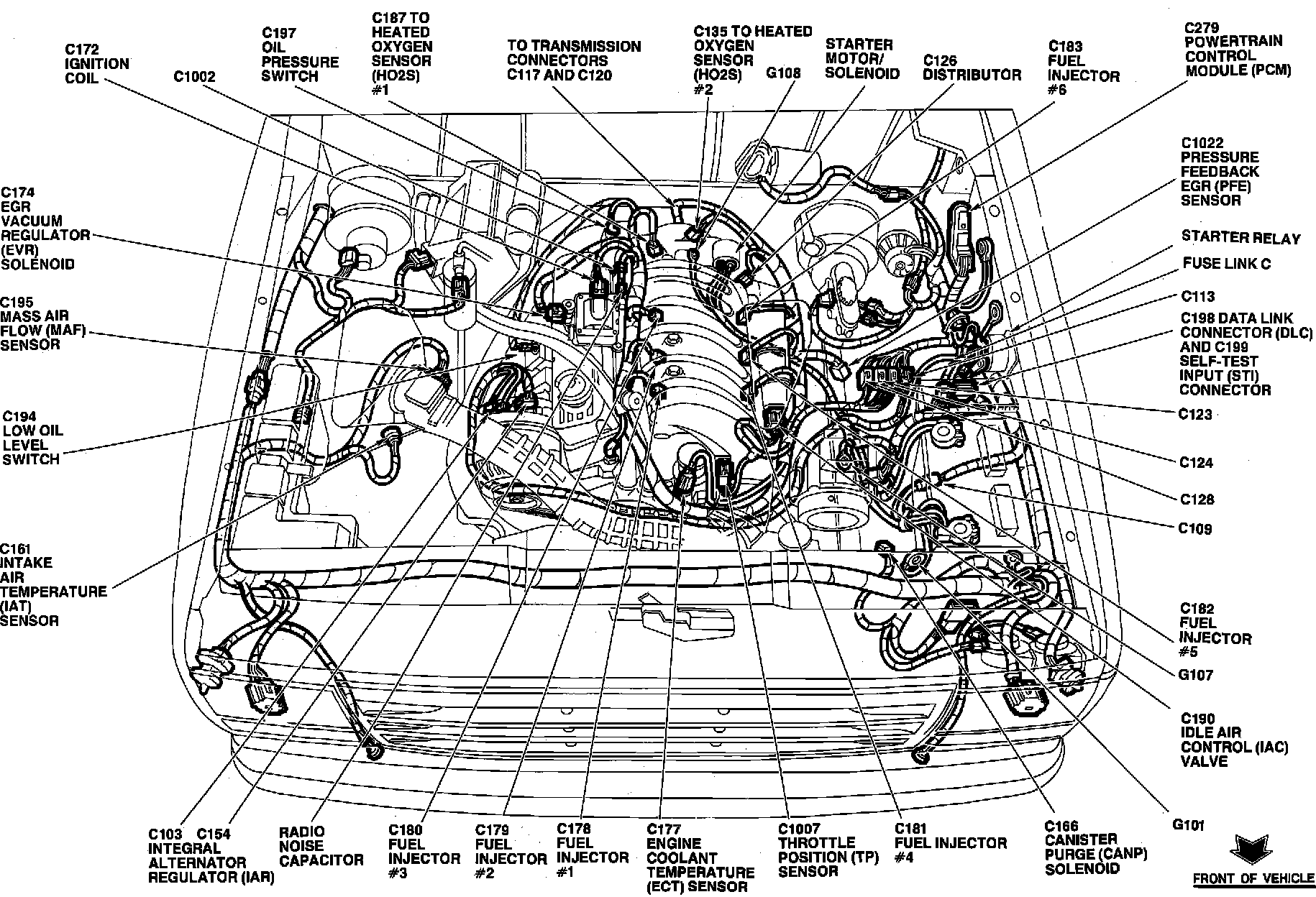

Component Locations:

CANISTER PURGE (CANP) SOLENOID
DATA LINK CONNECTOR (DLC)
DISTRIBUTOR
EGR VACUUM REGULATOR (EVR) SOLENOID
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
FUEL INJECTOR #4
FUEL INJECTOR #5
FUEL INJECTOR #6
FUSE LINK C
HEATED OXYGEN SENSOR (HO2S) #1
HEATED OXYGEN SENSOR (HO2S) #2
IDLE AIR CONTROL (IAC) VALVE
IGNITION COIL
INTAKE AIR TEMPERATURE (IAT) SENSOR
INTEGRAL ALTERNATOR REGULATOR (IAR)
LOW OIL LEVEL SWITCH
MASS AIR FLOW (MAF) SENSOR
OIL PRESSURE SWITCH
POWER TRAIN CONTROL MODULE (PCM)
PRESSURE FEEDBACK EGR (PFE) SENSOR
RADIO NOISE CAPACITOR
SELF-TEST INPUT (STI) CONNECTOR
STARTER MOTOR/SOLENOID
STARTER RELAY
THROTTLE POSITION (TP) SENSOR
