Turn Signal Switch: Testing and Inspection

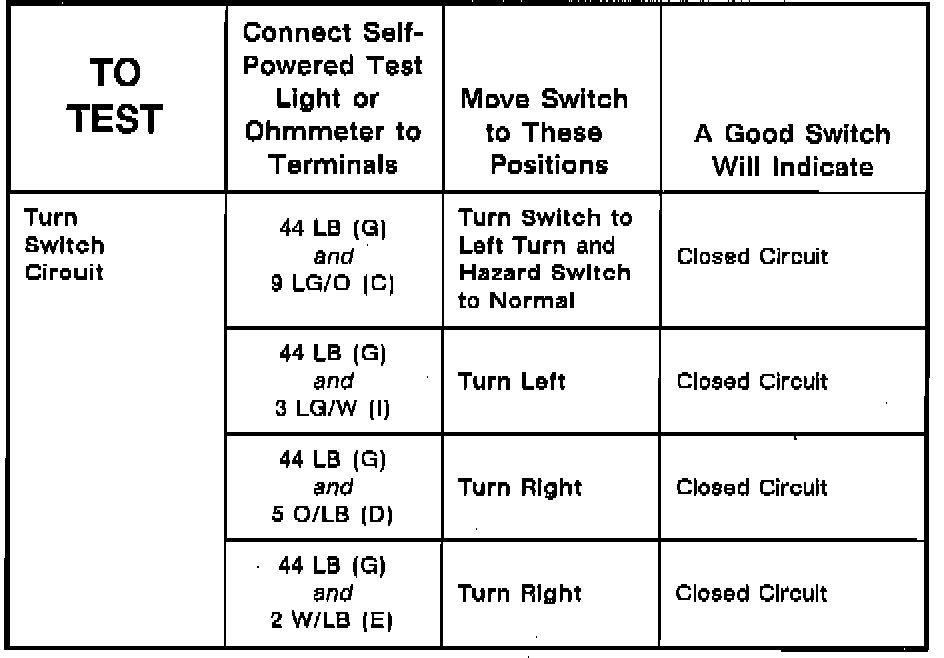

Component Testing Procedure:

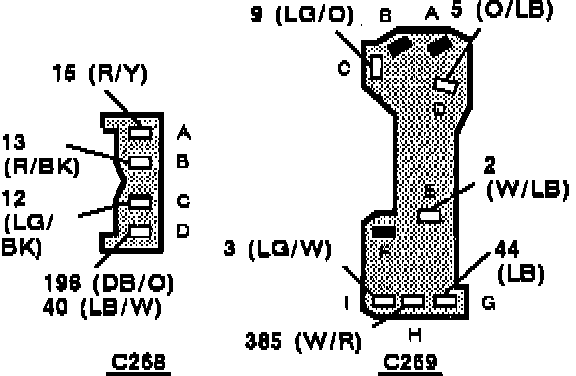

Pinout:

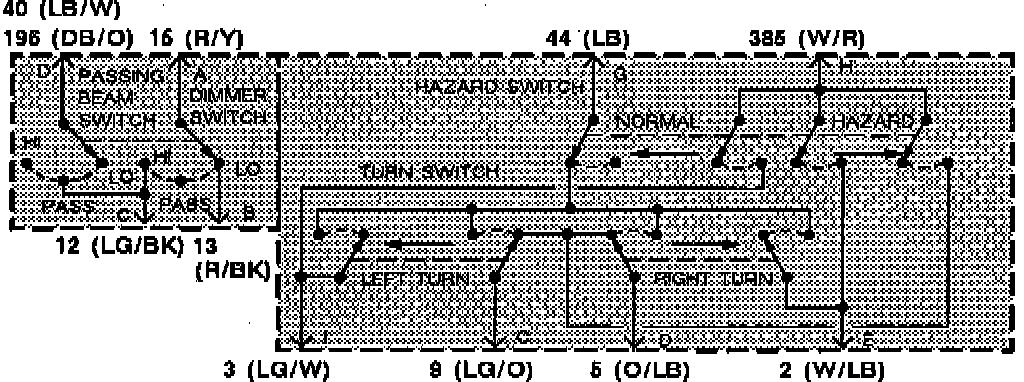

Schematic, Multifunction Switch:
