Ford Truck
>>
1993
>>
Ranger 4WD V6-183 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
Four Wheel Drive Selector Switch
Four Wheel Drive Selector Switch

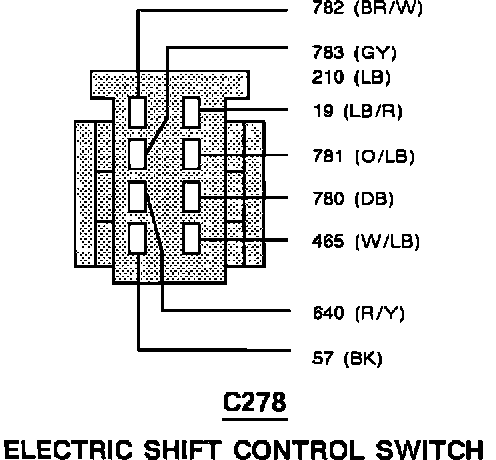

Electric Shift Control Module C278:
