NC - EDIS Ignition Diagnostic Monitor
>>
NC11 - Check PCM For Short to Power
NC11 - Check PCM For Short to Power

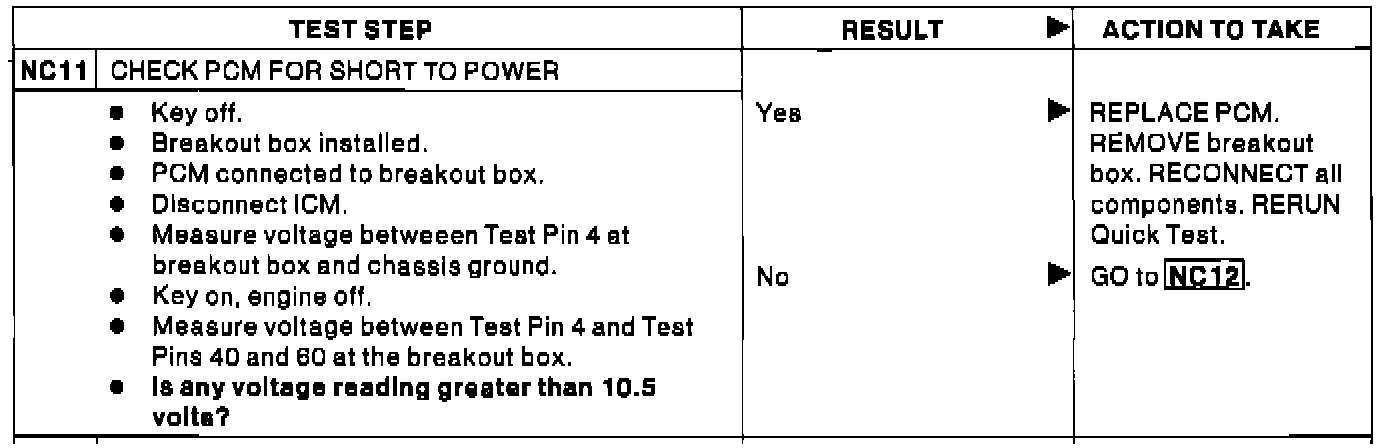

Pinpoint Test NC11:
