DL - PFE/DPFE Sensor; EVR Solenoid Testing
>>
DL - Testing Schematic
>>
California
California

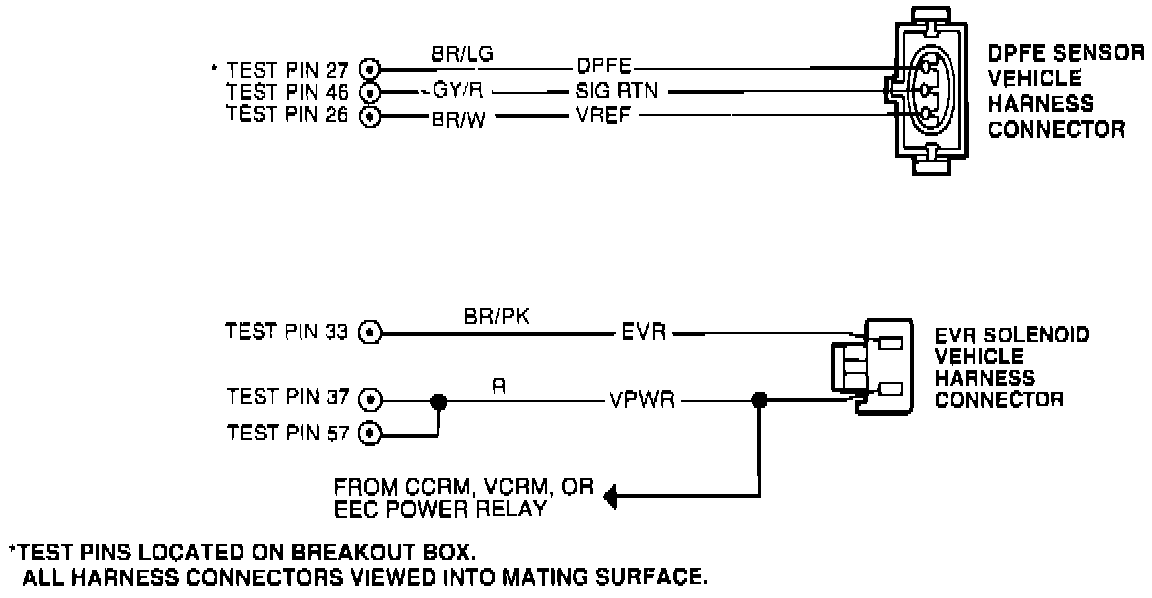

Schematic Diagram:
