Attachment II - Labor and Parts Information

1990 - 1992 and certain 1993 Model Year F-Series Vehicles With 4.9, 5.0, 5.8, or 7.5 liter engines and Dual Fuel Tanks

LABOR ALLOWANCES





Install new fuel pressure regulator and check valves (or new fuel lines with built-in check valves):

NOTE
Add 0.1 hour Administrative Allowance to the total repair time.

Add additional 0.3 hour if truck is equipped with fuel tank skid plates.

Add additional 0.1 hour if truck is over 8,500 lbs. and equipped with a 5.8L engine.

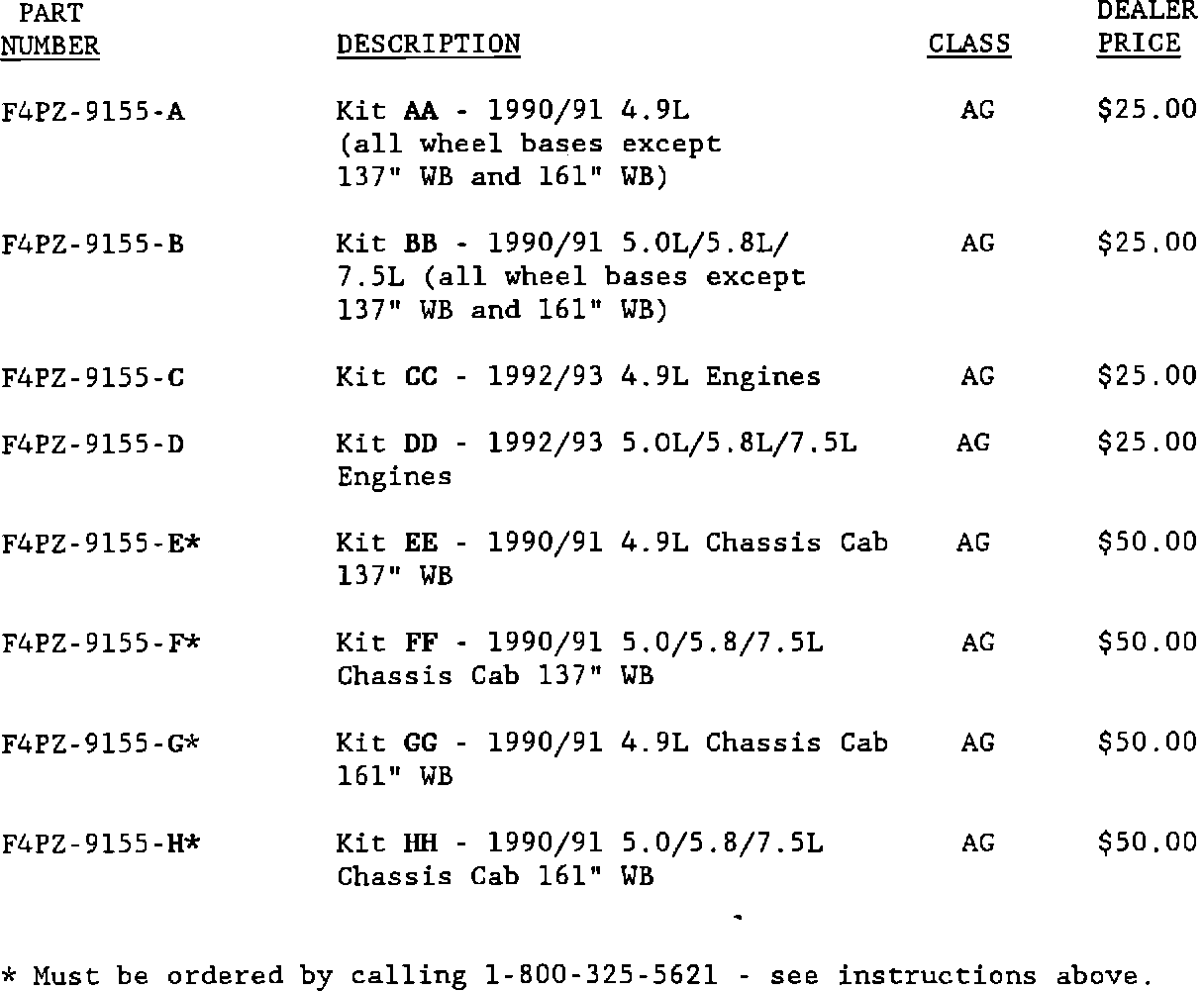

PARTS REQUIREMENTS

Parts will not be direct shipped for this recall.

For Kits AA, BB, CC, and DD, order your parts requirements through normal order processing channels.





For Kits EE, FF, GG, and HH, order your parts by calling Renkim Corporation at 1-800-325-5621. When calling, be prepared to announce Recall 93S68, give your name, dealer name, P&A code, the VIN number of the vehicle to be serviced, and the kit part number required (do not order Kits AA, BB, CC or DD by calling this number).

Parts prices current until next issue of Master Price Book. For latest prices, check or call your:

- Order Processing Center
- DOES II
- Updated Price Book
