Ford Truck
>>
1993
>>
F 150 2WD Pickup L6-300 4.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Electrical Diagrams
>>

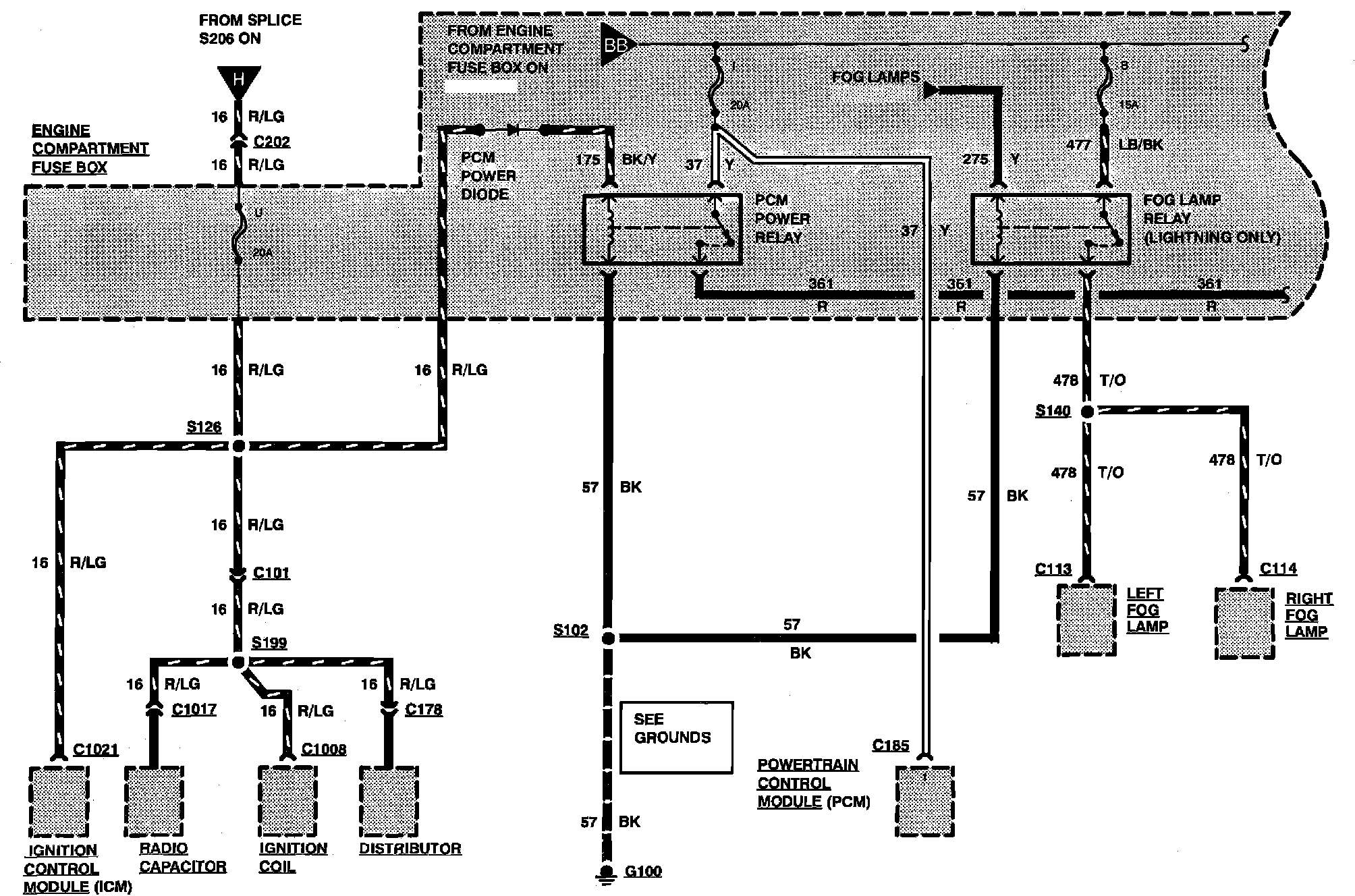

Fuse I
Fuse I
Power Distribution:
