Crew Cab

Component Locations:

BACK UP LAMP SWITCH
BACK UP LAMP SWITCH (T-18 BORG-WARNER, S5-42 ZF)
DIFFERENTIAL SPEED SENSOR
FRONT TANK FUEL PUMP/FUEL GAUGE SENDER UNIT
FUEL TANK SELECTOR VALVE
HEATED OXYGEN SENSOR
INERTIA FUEL SHUTOFF
RABS VALVE ASSEMBLY
REAR TANK FUEL PUMP/FUEL GAUGE SENDER UNIT

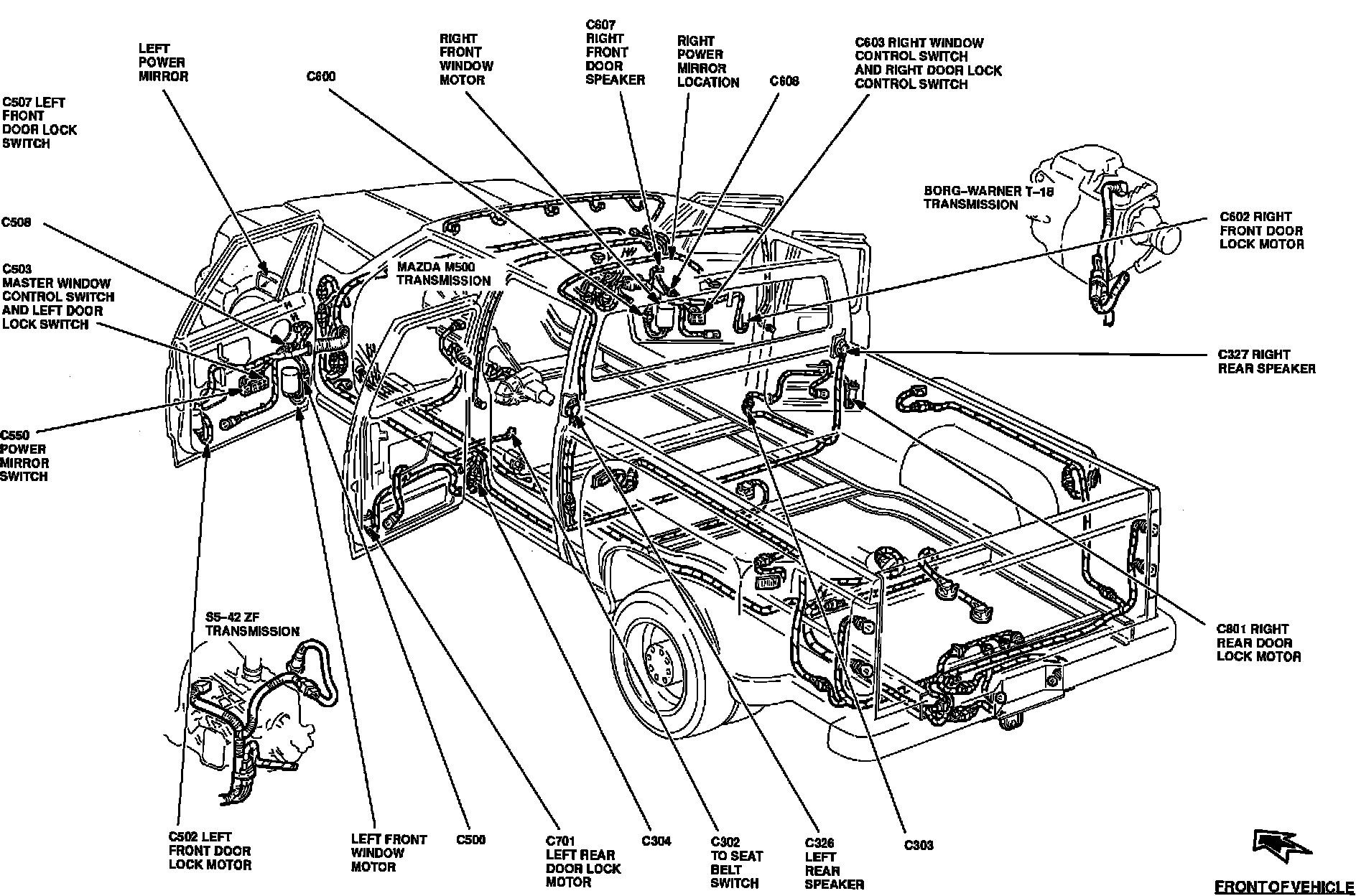

Component Locations:

LH FRONT DOOR LOCK MOTOR
LH FRONT DOOR LOCK SWITCH
LH FRONT POWER MIRROR
LH FRONT POWER WINDOW MOTOR
LH FRONT SPEAKER
LH REAR DOOR LOCK MOTOR
LH REAR SPEAKER
MASTER WINDOW CONTROL SWITCH AND LEFT DOOR LOCK SWITCH
POWER MIRROR SWITCH
RH FRONT DOOR LOCK MOTOR
RH FRONT SPEAKER
RH REAR POWER WINDOW MOTOR
RH REAR SPEAKER
RIGHT FRONT POWER MIRROR
RIGHT FRONT POWER WINDOW SWITCH
RIGHT REAR DOOR LOCK MOTOR
RIGHT WINDOW CONTROL SWITCH AND RIGHT DOOR LOCK SWITCH
SEAT BELT SWITCH

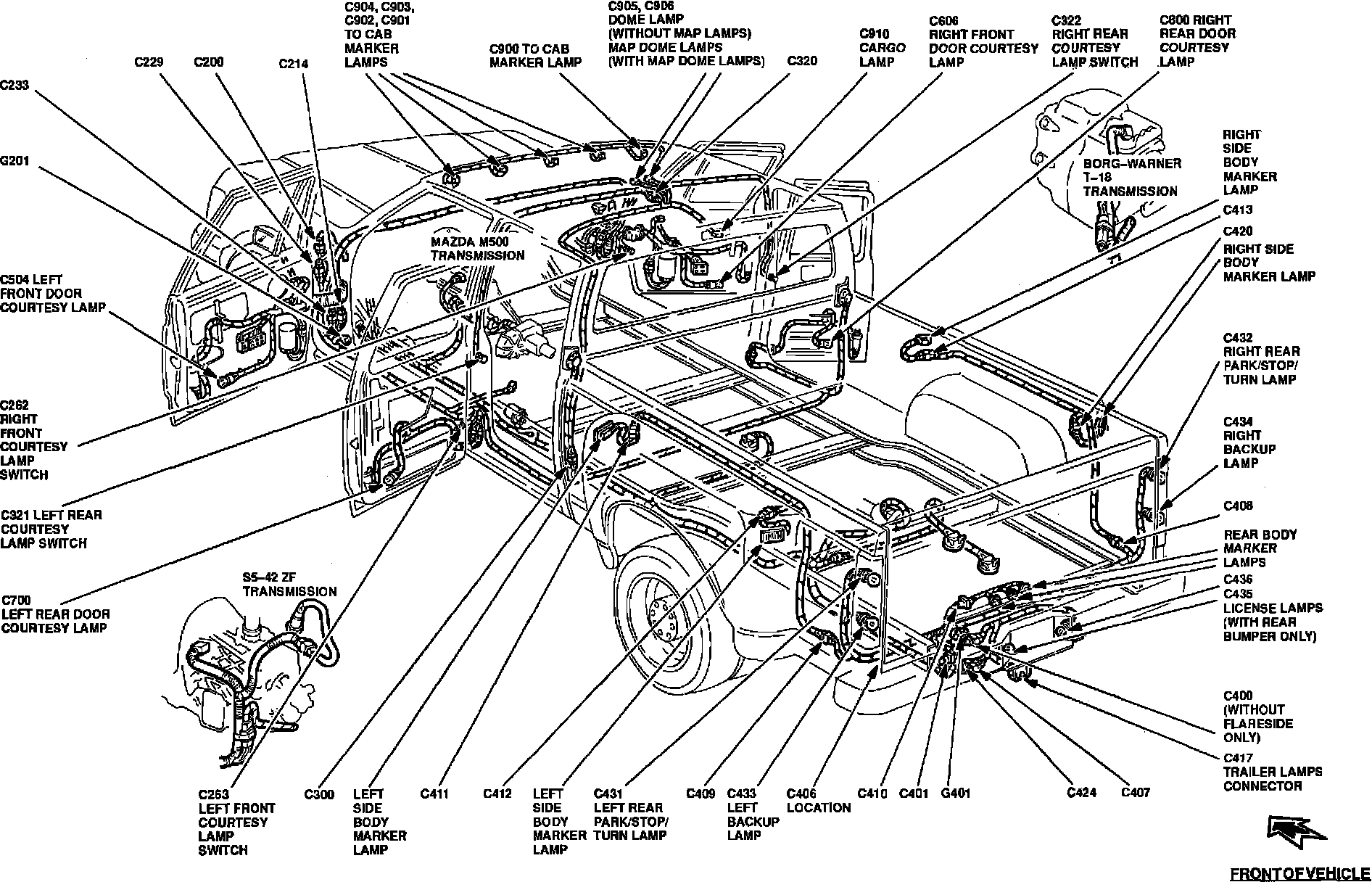

Component Locations:

CAB MARKER LAMPS
CARGO LAMP
DOME LAMP
LEFT BACKUP LAMP
LEFT SIDE BODY MARKER LIGHTS
LH FRONT DOOR COURTESY LAMP
LH FRONT DOOR COURTESY LAMP SWITCH
LH REAR DOOR COURTESY LAMP
LH REAR DOOR COURTESY LAMP SWITCH
LH REAR STOP/PARK/TURN LAMP
LICENCE LAMPS (WITH REAR BUMPER ONLY)
REAR BODY MARKER LIGHTS
RH REAR STOP/PARK/TURN LAMP
RIGHT FRONT DOOR COURTESY LAMP
RIGHT FRONT DOOR COURTESY LAMP SWITCH
RIGHT REAR DOOR COURTESY LAMP
RIGHT REAR DOOR COURTESY LAMP SWITCH
RIGHT SIDE BODY MARKER LIGHTS
RT BACKUP LAMP
TRAILER LAMP CONNECTOR
