Electrical Diagrams
Electrical Diagrams

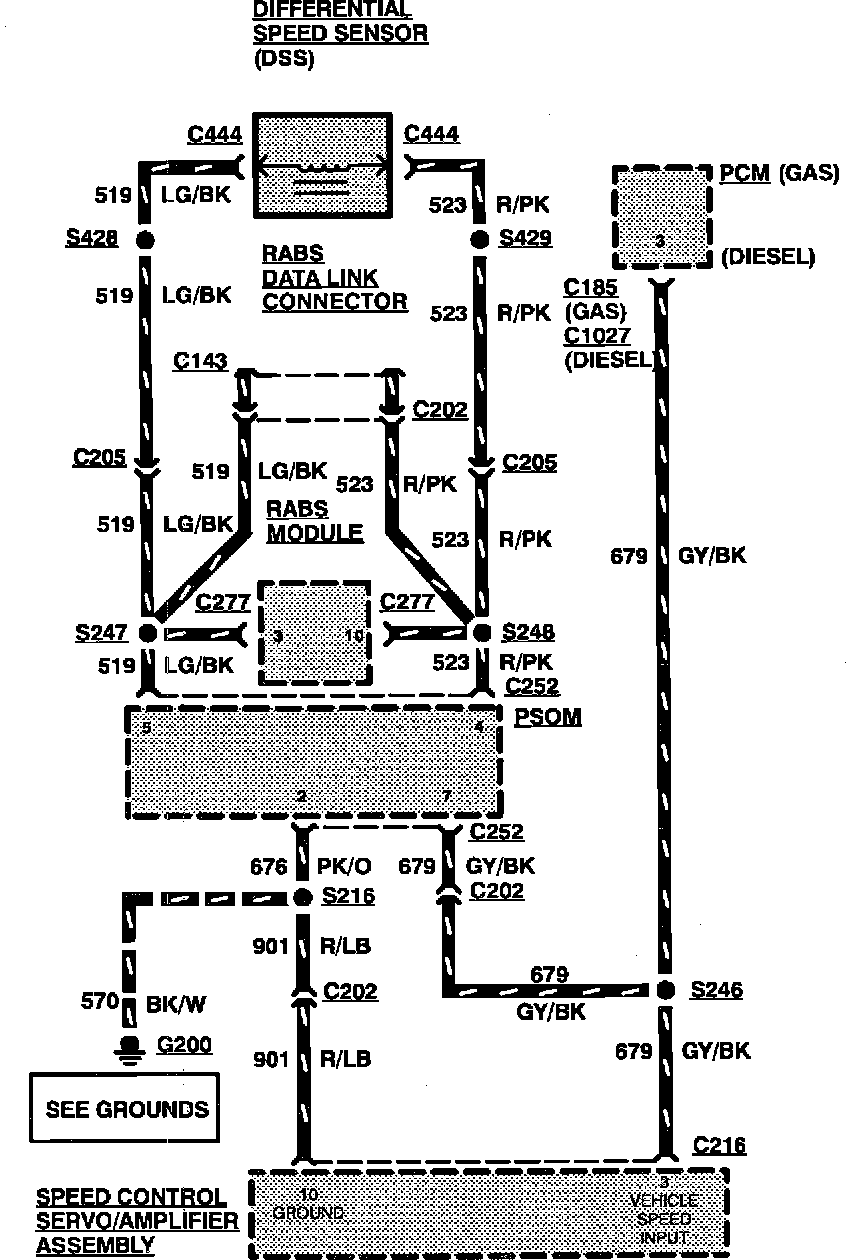

Fig. 4 Speed Control Wiring Diagram:
Speed Control:
Speed Control:
