Home >> Ford Truck >> 1993 >> Explorer 2WD V6-245 4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Testing and Inspection

Manual Transmission/Transaxle: Testing and Inspection

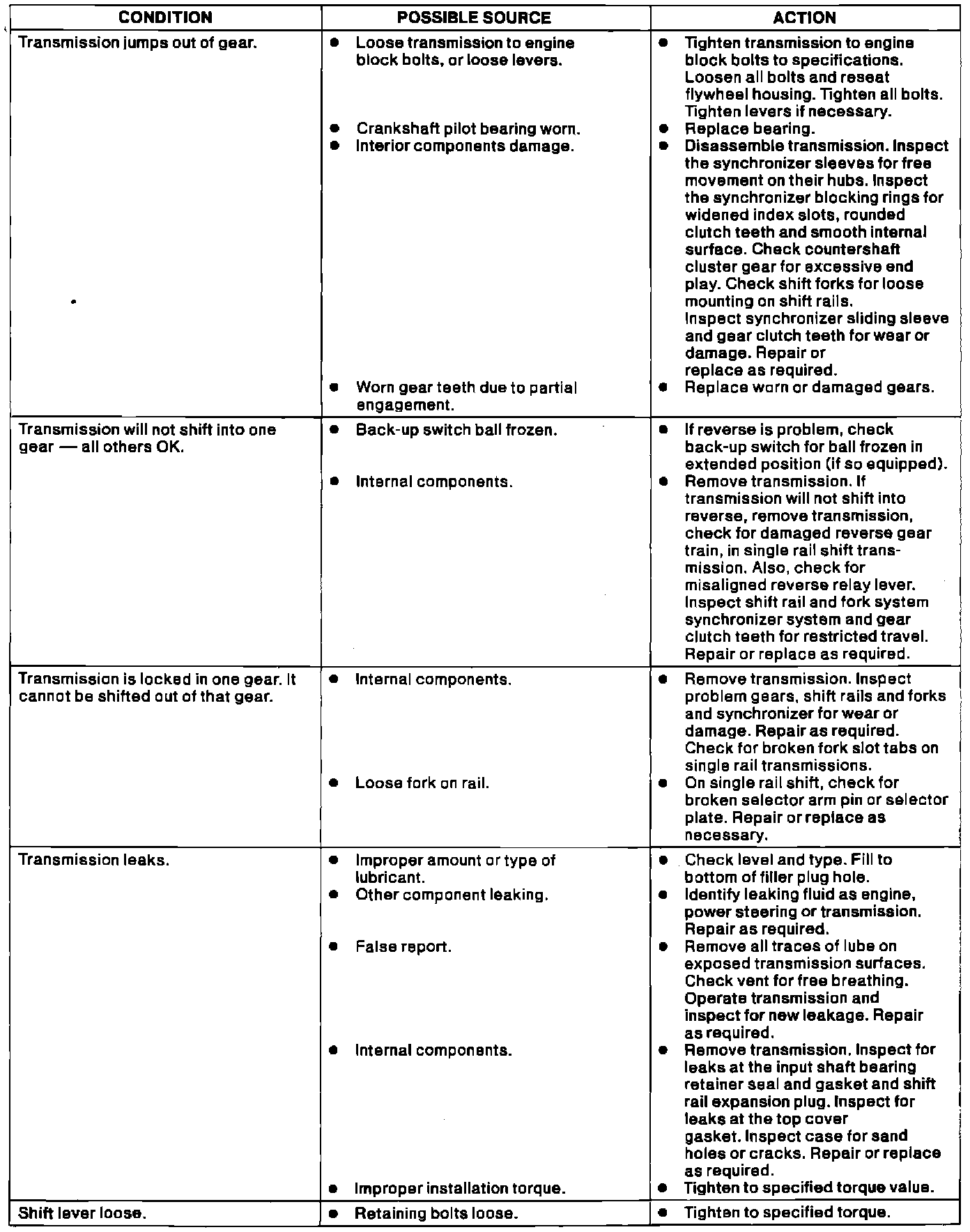

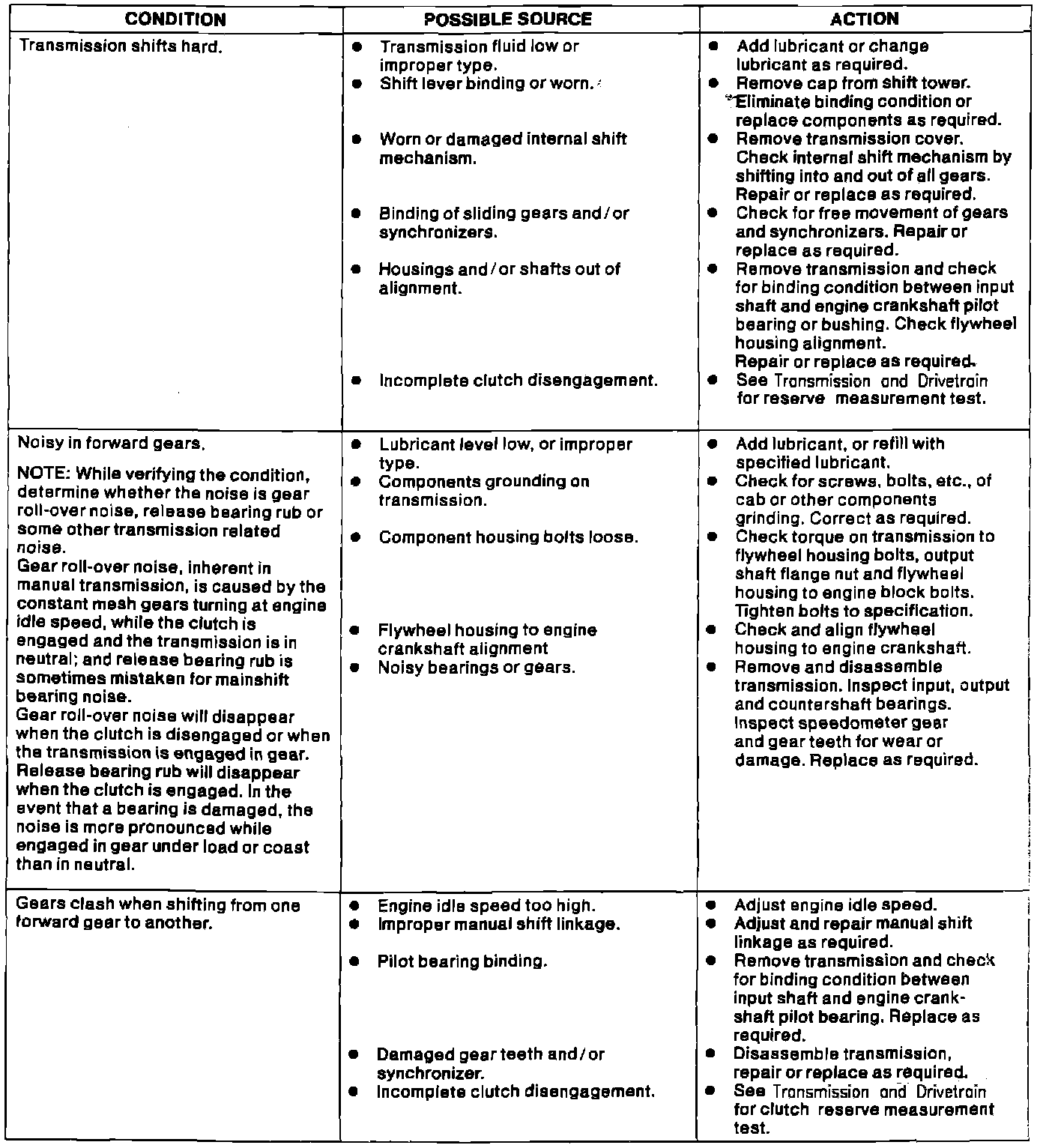

Under 8500 GVW - With T-18 and M5OD Transmission Part 1:



Under 8500 GVW - With T-18 and M5OD Transmission Part 2:



Under 8500 GVW - With T-18 and M5OD Transmission Part 3:

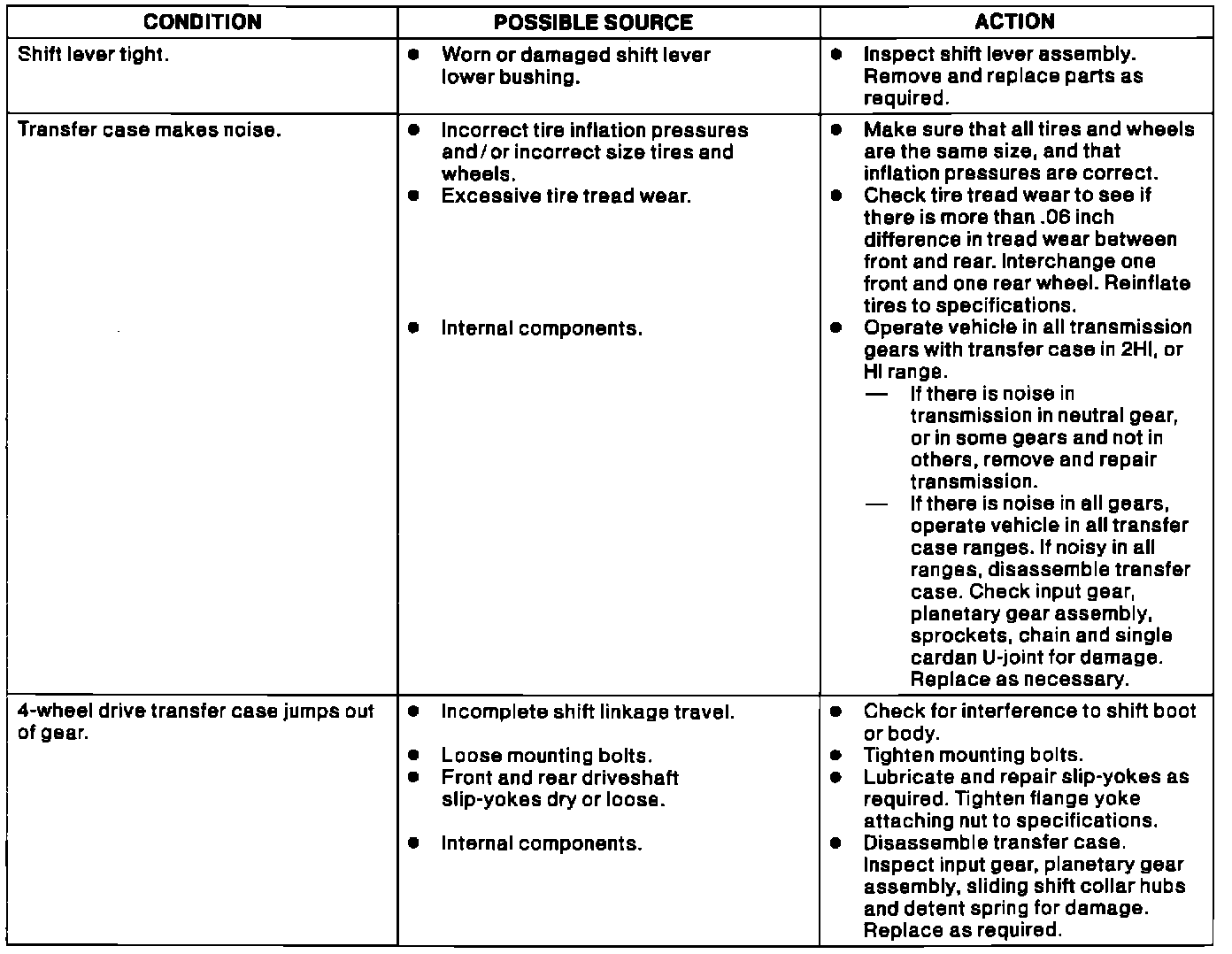

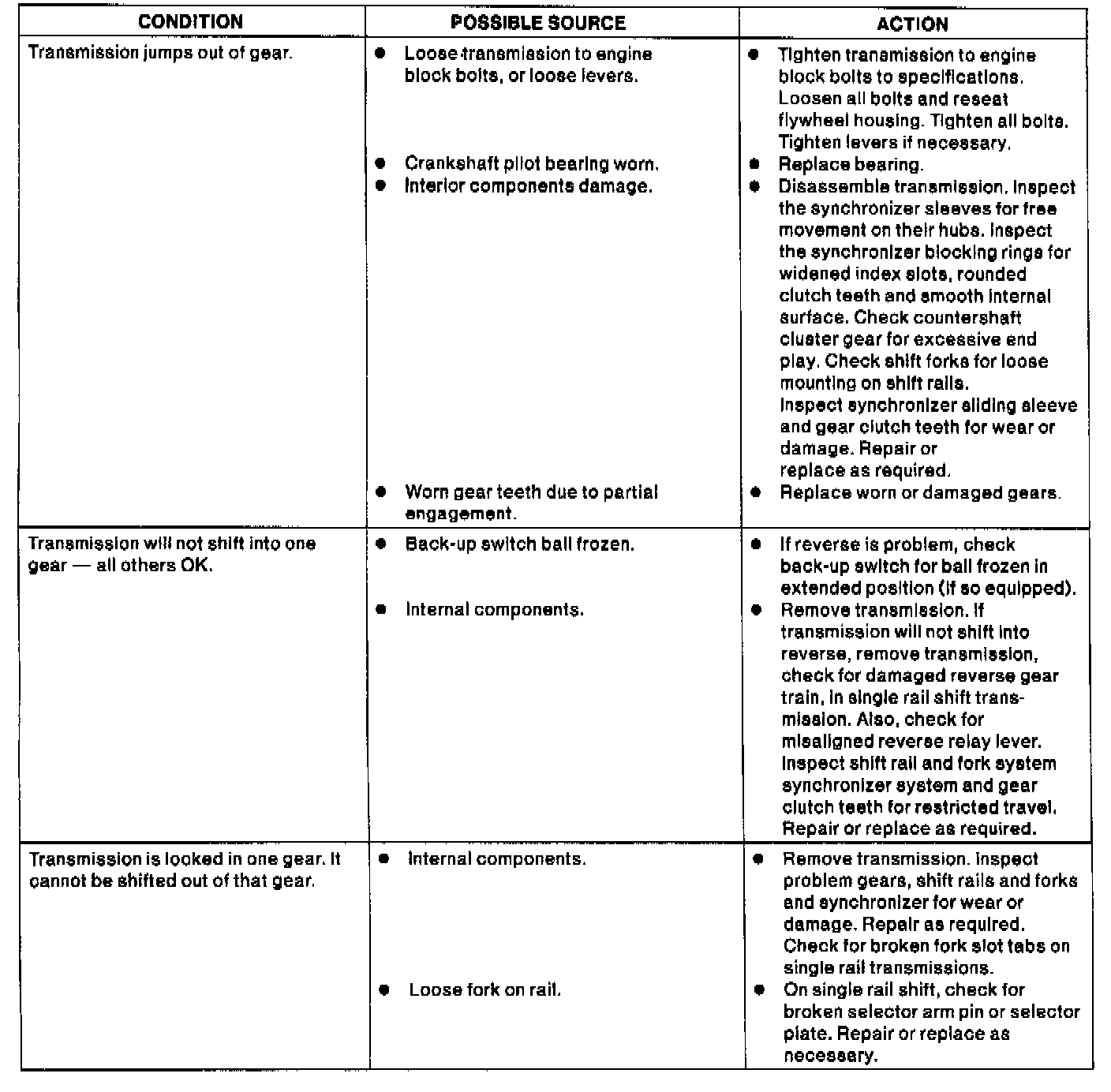

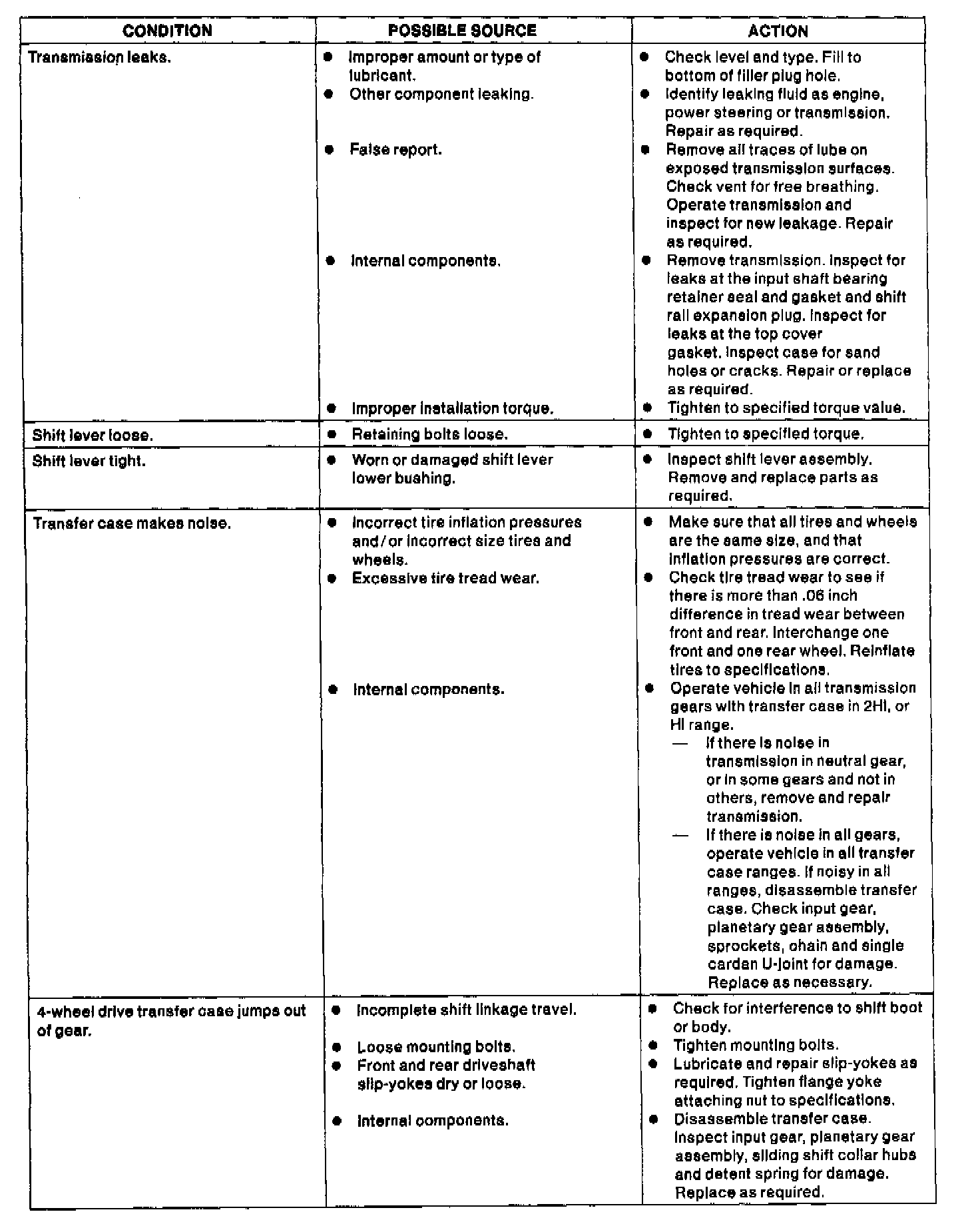

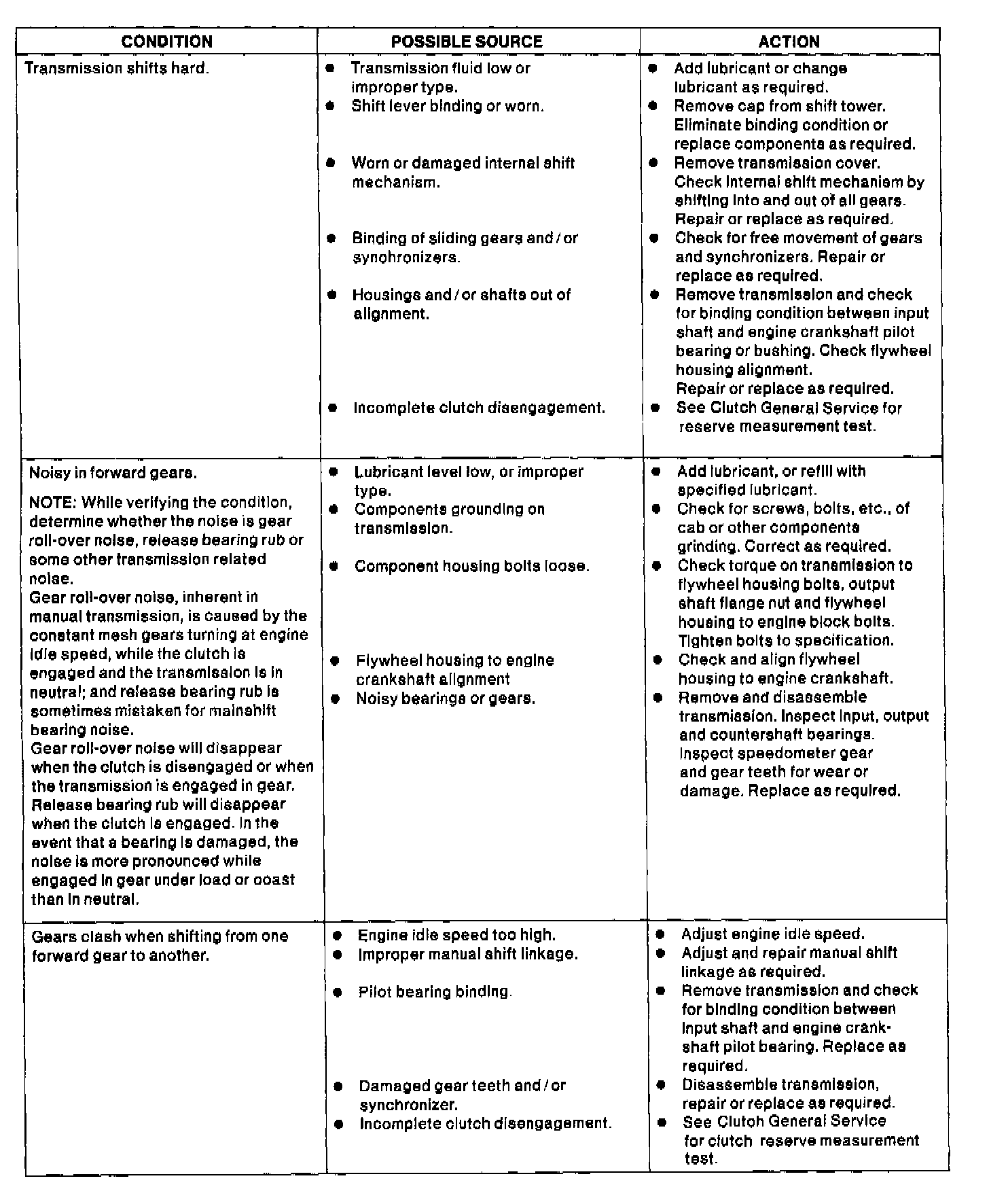

Manual Transmission Diagnosis:



Manual Transmission Diagnosis:



Manual Transmission Diagnosis:
