Rear Main Oil Seal Replacement - Service Tip

Article No.
95-1-8

01/16/95

^ LEAK - REAR MAIN OIL SEAL REPLACEMENT - VEHICLES WITH 4.0L ENGINES - SERVICE TIP

^ REAR MAIN SEAL - 4.0L - NEW INSTALLATION TOOL

LIGHT TRUCK:
1990-94 AEROSTAR, RANGER
1991-94 EXPLORER

ISSUE:
A redesigned tool for installation of rear main seals is available and must be used for all rear main seal replacements. Prior released tools (T72C-6165) and (T72C-6165-R) must not be used. Usage of obsolete tools may cause oil leaks due to seal damage, crankshaft journal damage or mispositioning of the seal.





ACTION:

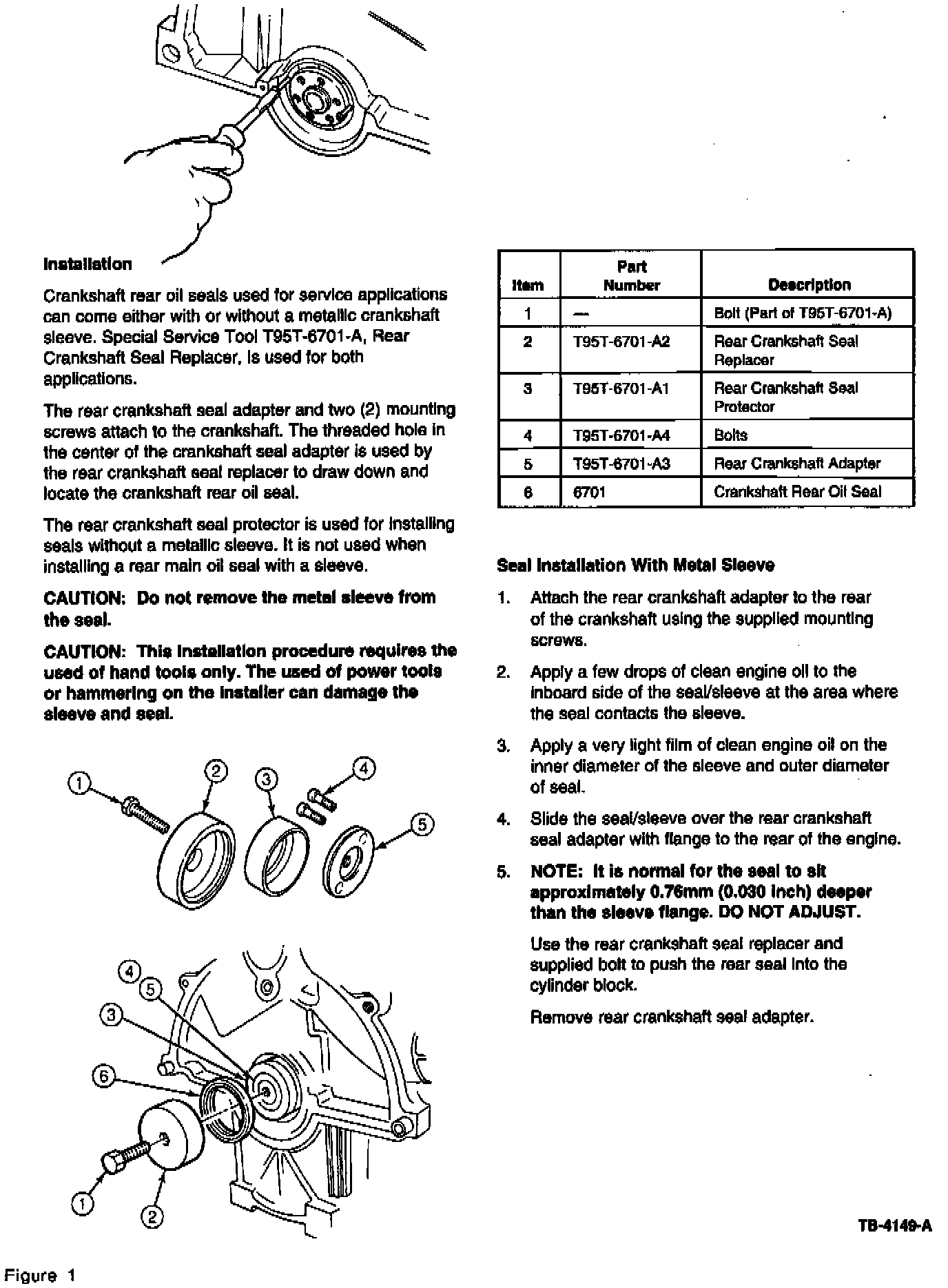

If an oil leak is detected, refer to TSB 94-12-13 for proper diagnosis of the oil leak. If, after diagnosis, it is determined that a new rear main seal needs to be installed, use the procedure found in TSB 94-12-13. Be sure to use the new Rear Oil Seal Replacer Tool (T95T-6701-A) when installing a new rear main seal. Refer to Figure 1 for more details.

OTHER APPLICABLE ARTICLES: 94-12-13
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 401000, 499000
