Antilock Brake System - Diagnostic Test Revision

Article No.
93-19B-31

09/29/93

SERVICE MANUAL - 1993 - PAGE 06-09B-9 - BRAKE, 4-WHEEL ANTI-LOCK - INTERMITTENT DIAGNOSIS TEST STEP ID2 REVISED

LIGHT TRUCK:
1993 EXPLORER





ISSUE:
Intermittent Diagnosis Procedure Test Step ID2 incorrectly directs the technician to "GO to ID7" as part of the action to take for a "Yes" result. This direction is incorrect and must be deleted. Page 06-09B-9 of the 1993 Ranger/Explorer/Aerostar Service Manual (Body/Chassis) is affected.

ACTION:

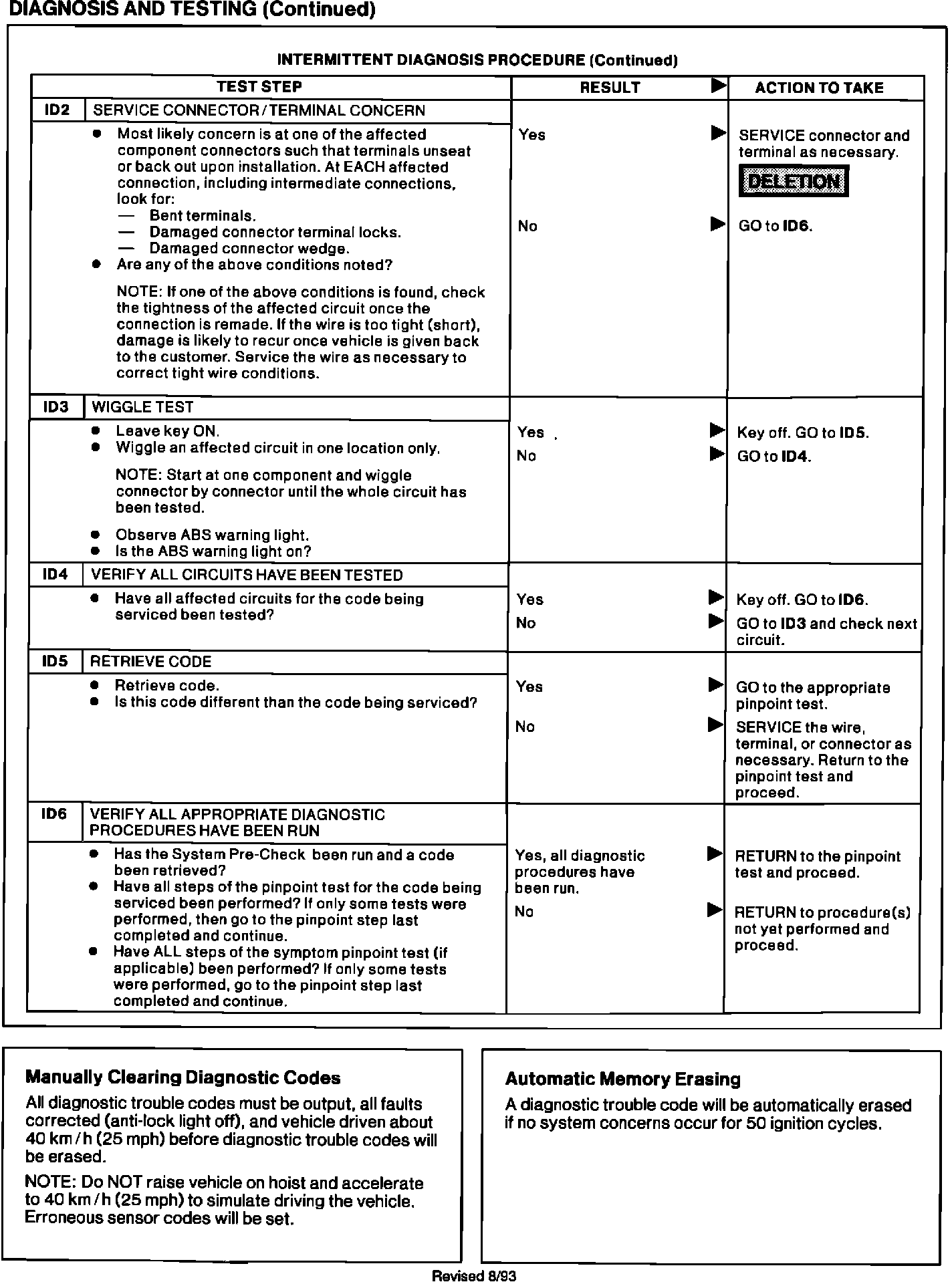

Refer to the page in this TSB article for the revised information.

NOTE:
SECTION 06-09B WAS SIGNIFICANTLY REVISED AND REPRINTED, IN ITS ENTIRETY, IN TSB 93-4A. THE REVISION TO TEST STEP ID2 IS APPLICABLE TO TSB 93-4A-2, PAGE 89. REFER TO TSB 93-4A-2 IF SERVICE OF THE EXPLORER 4-WHEEL ANTI-LOCK BRAKE SYSTEM IS REQUIRED.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 390000
