A/C Suction Hose - Routing

Article No.
93-24-18

11/24/93

AIR CONDITIONING - A/C SUCTION HOSE ROUTING

LIGHT TRUCK:
1991-93 EXPLORER

ISSUE:
The A/C suction line routing was changed on Job # 1, 1993. This same new suction hose and routing pattern should be used on 1991 and 1992 Explorers requiring service repairs.

ACTION:

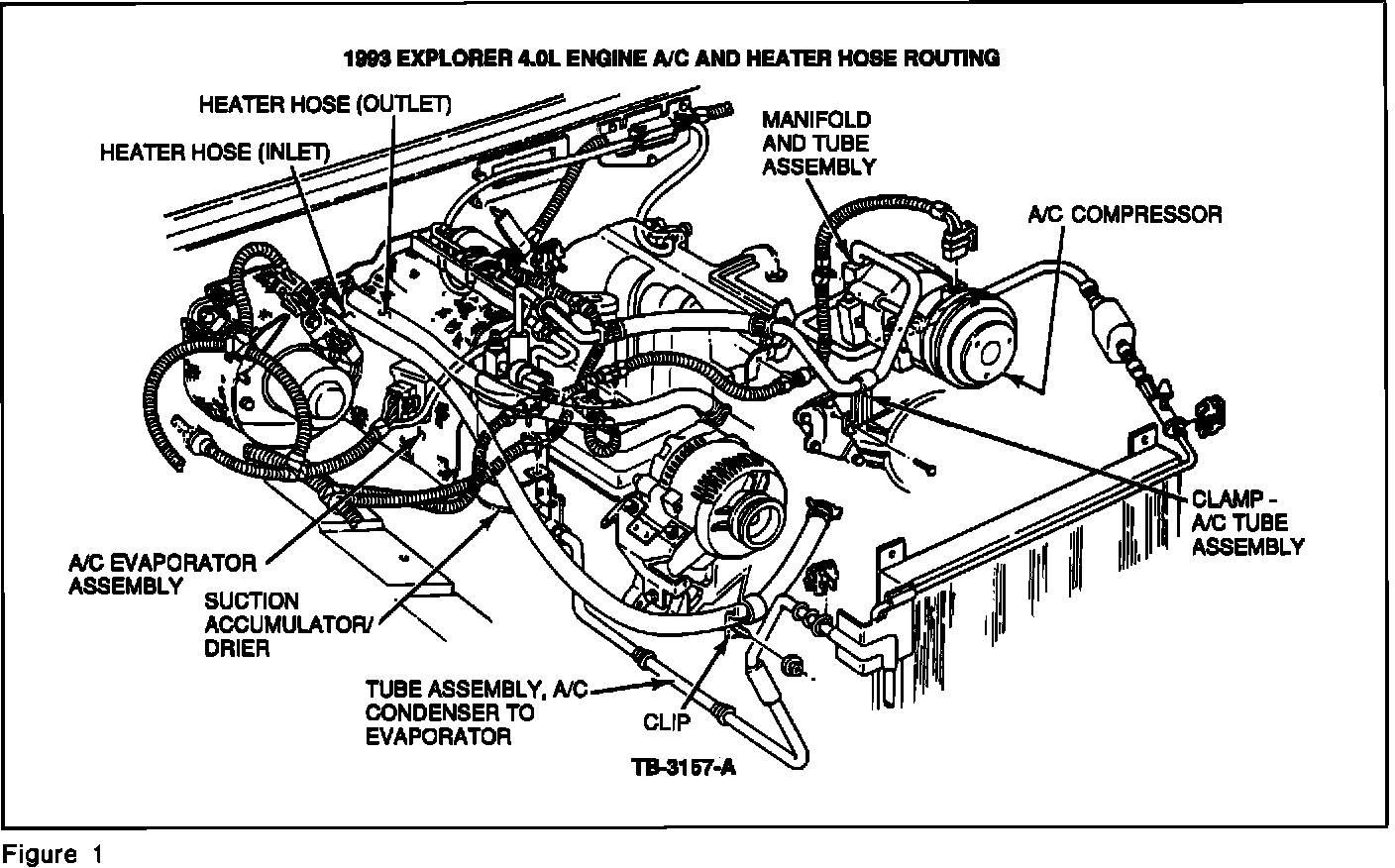

If service is required, install a new manifold/tube assembly (suction line) and route it as shown in Figure 1. If the Explorer was built before April 8, 1991, also install a new longer suction accumulator/drier designed to accept the new suction line. Refer to the 1993 Explorer Service Manual, Section 12-03A, for service details.

PART NUMBER PART NAME CLASS

F3TZ-19D850-B Manifold/Tube Assy. B
F1TZ-19C836-B Accumulator/Drier Assy. B

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS:
Eligible Under The Provisions Of The Bumper To Bumper Warranty For 1992/93 Models And Basic Warranty For 1991 Models

OPERATION DESCRIPTION TIME
932418A Replace A/C Hose 1.2 Hrs.
Assembly and Accumulator/Drier
Assembly - Explorers Built
Prior to April 8, 1991
932418B Replace A/C Hose 1.0 Hr.
Assembly - Explorers Built
Since April 8, 1991
932418C Extra Time For Refrigerant 0.2 Hr.
Recovery

DEALER CODING
BASIC PART NO. CONDITION CODE
19C836 43

OASIS CODES: 402000
