Disassembly

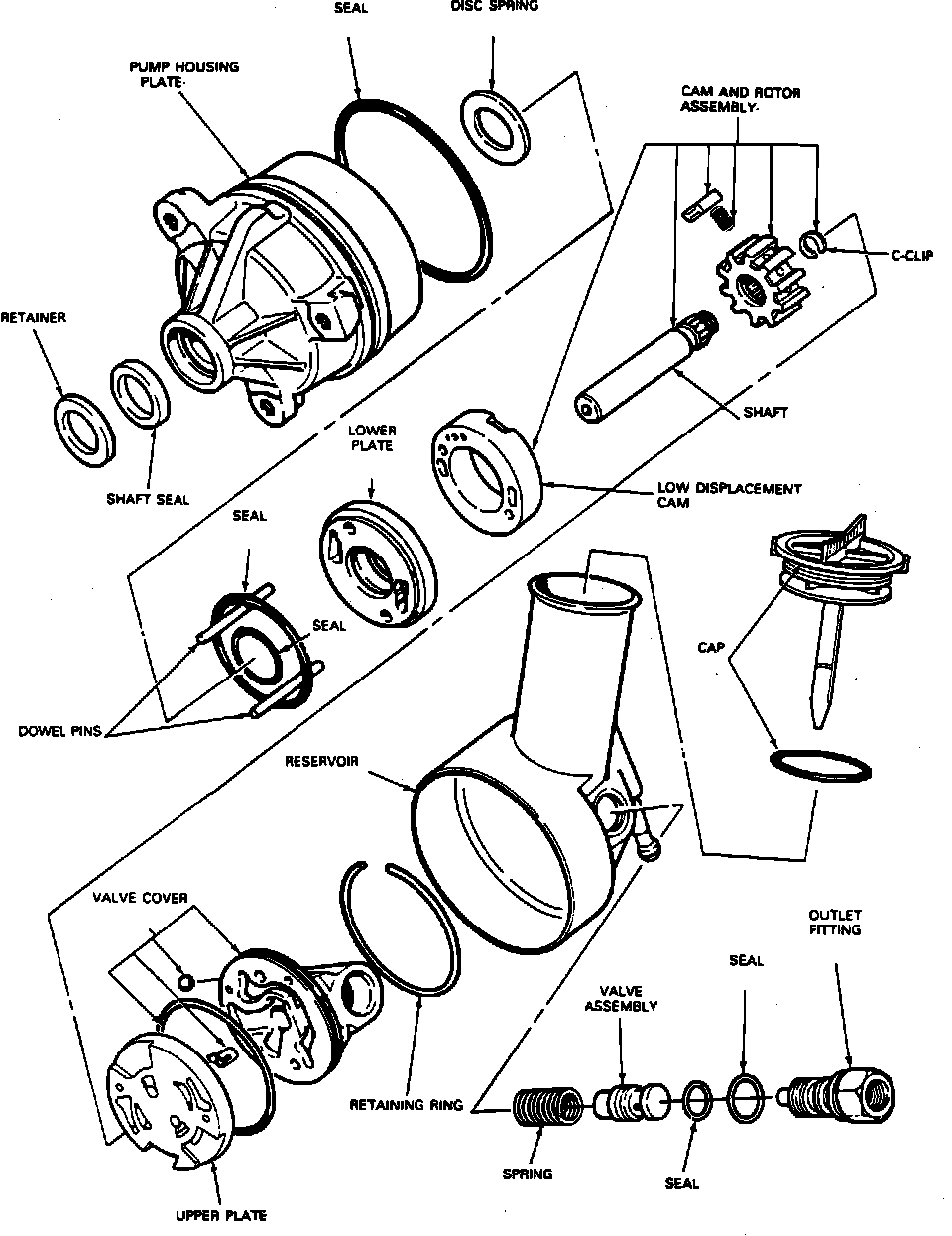

Fig. 1 Ford Model CII Power Steering Pump:

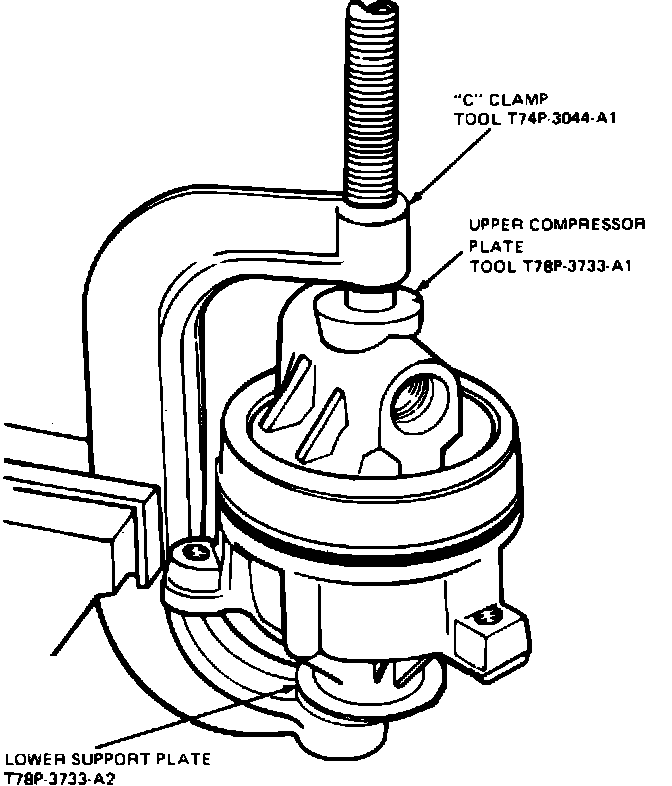

Fig. 2 Positioning Pump In C-Clamp:

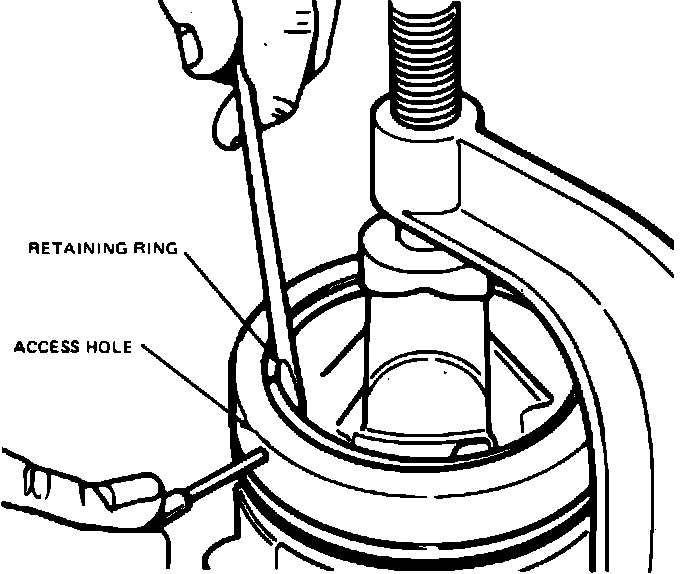

Fig. 3 Removing Valve Cover Retaining Ring:

1. Remove pulley from pump.
2. Remove outlet fitting, flow control valve and flow control valve spring from pump, then remove reservoir, Fig. 1.
3. Place a suitable C-clamp in a vise.
4. Position lower support plate (part No. T78P-3733-A2) over pump rotor shaft.
5. Install upper compressor plate (part No. T78P-3733-A1) into upper portion of C-clamp.
6. While holding compressor tool, place pump assembly into C-clamp with rotor shaft facing downward, Fig. 2.
7. Tighten C-clamp until a slight bottoming of valve cover is observed.
8. Through small hole located on side of pump housing, insert a suitable drift and push inward on valve cover snap ring. While pushing inward on snap ring, place a screwdriver under snap ring edge and remove ring from housing, Fig. 3.
9. Loosen C-clamp and remove upper compressor plate (part No. T78P-3733-A2), then remove pump assembly.
10. Remove pump valve cover and O-ring.
11. Remove rotor shaft, upper plate, cam and rotor assembly and two dowel pins.
12. Remove lower plate and spring, by tapping housing on a flat surface.
13. Using a suitable screwdriver, remove rotor shaft seal.
