Neutral Safety Switch: Testing and Inspection

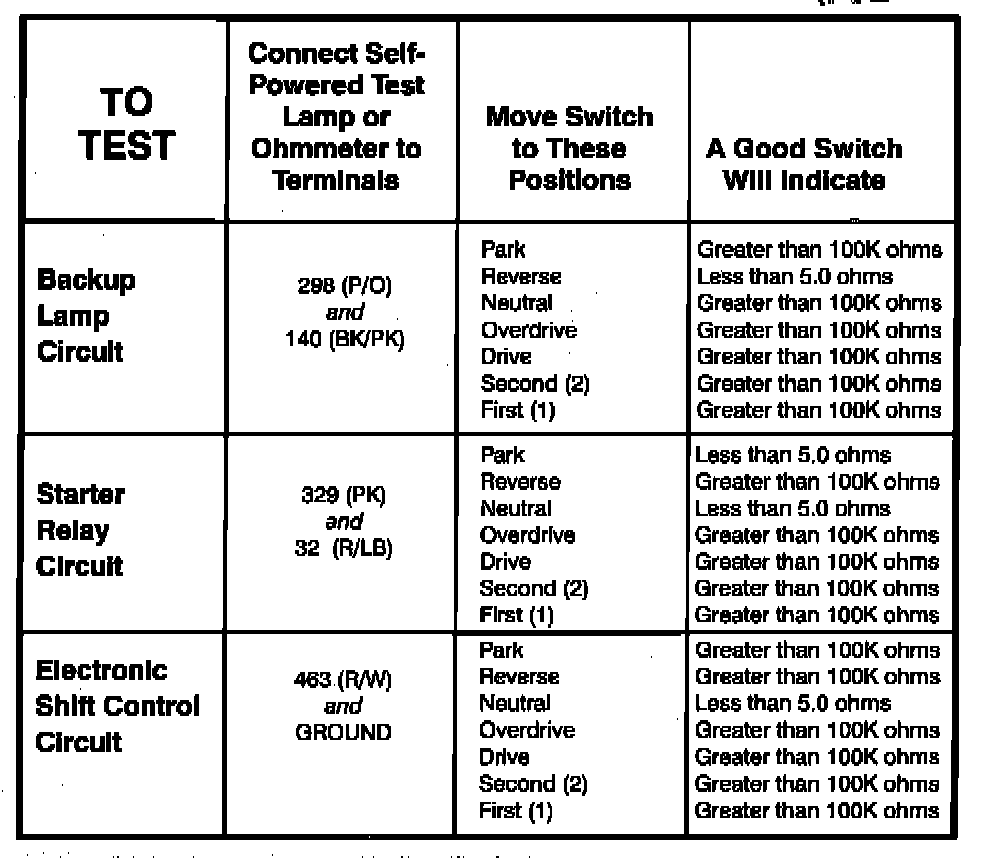

Component Testing Procedure:
Park/Neutral/Backup Position Switch:

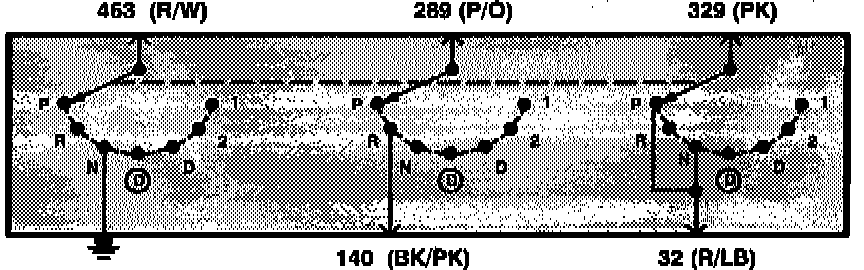

Switch Schematic:
