Ford Truck
>>
1993
>>
Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

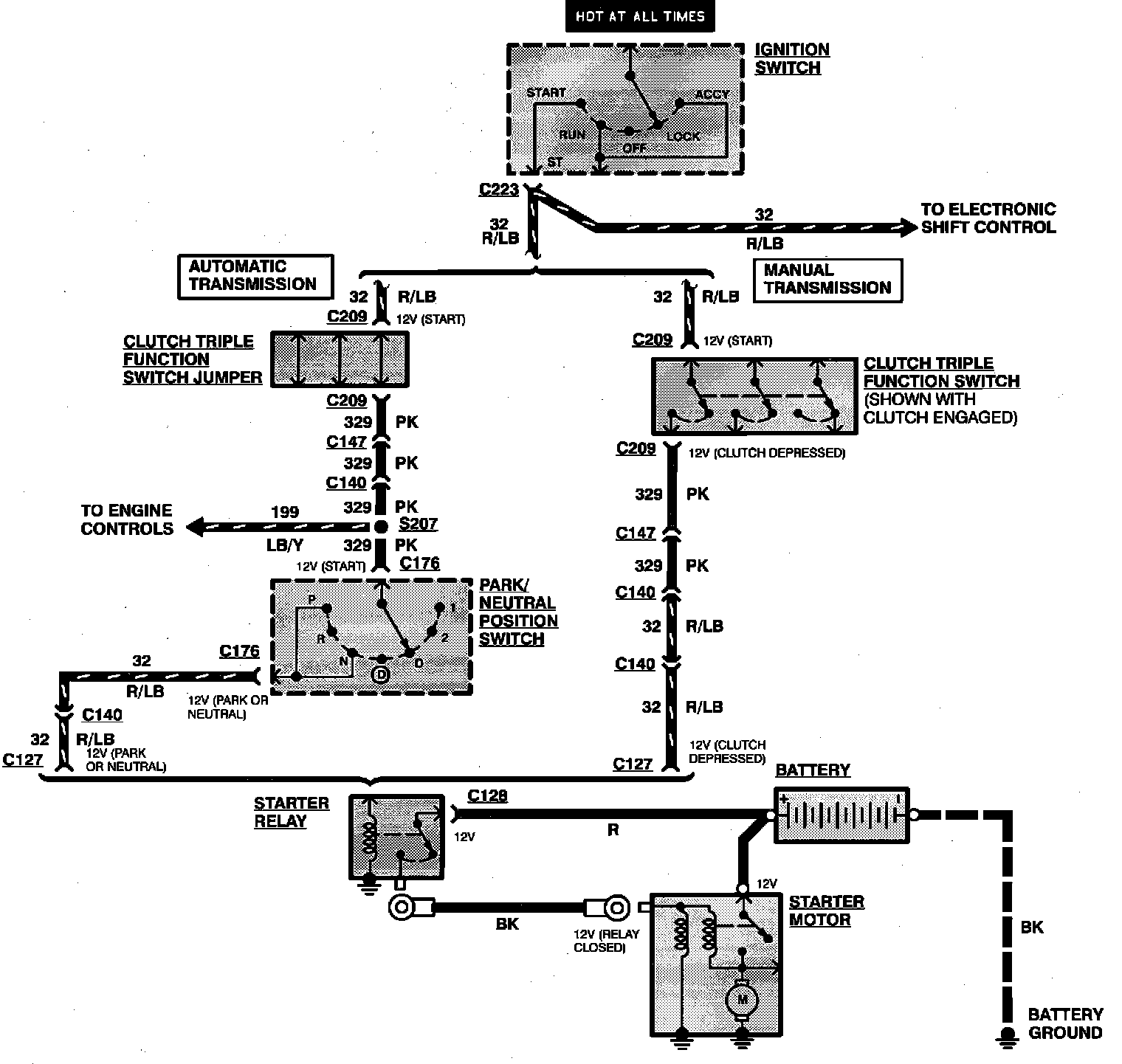

Base Model:

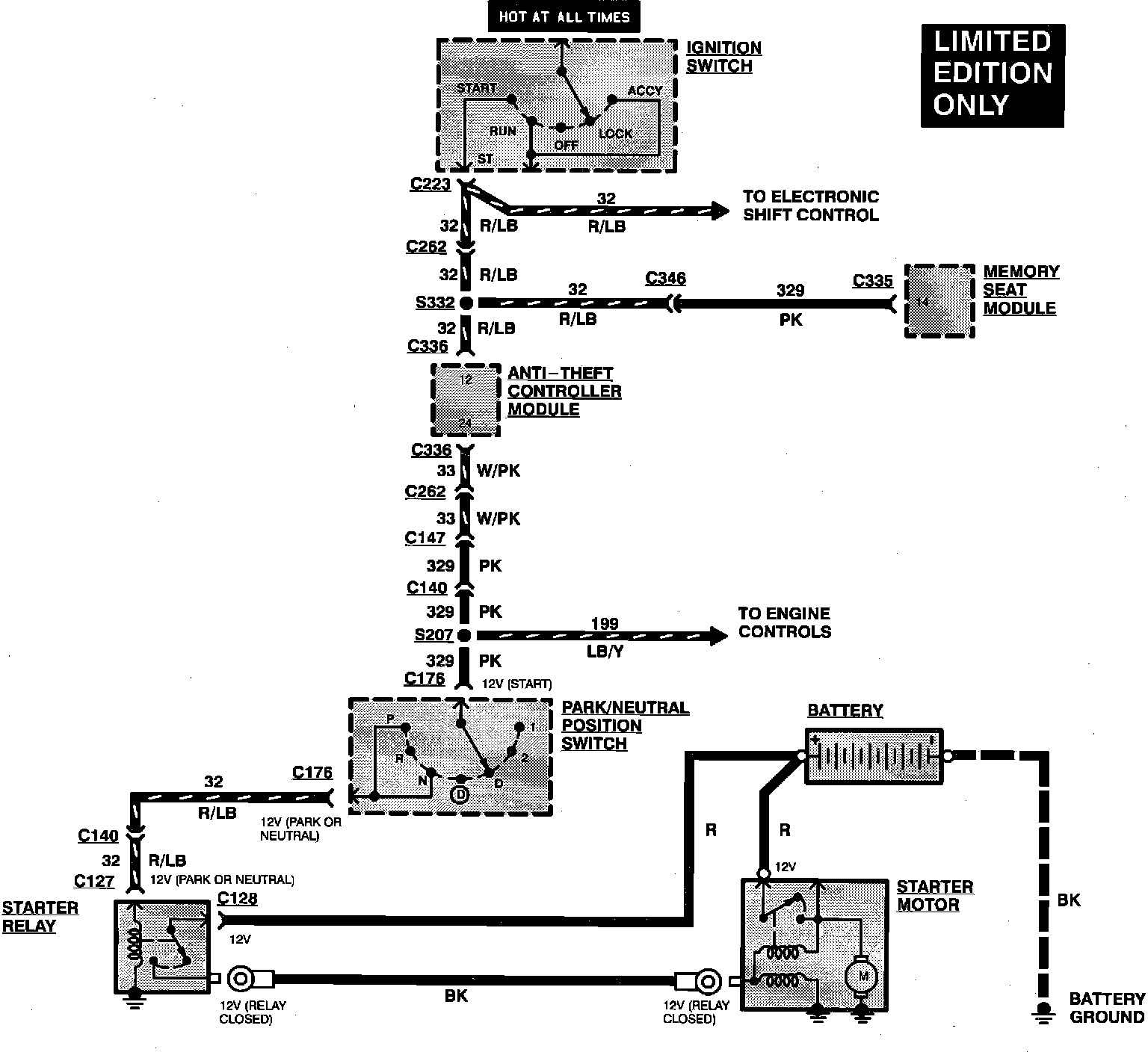

Limited Edition Only:

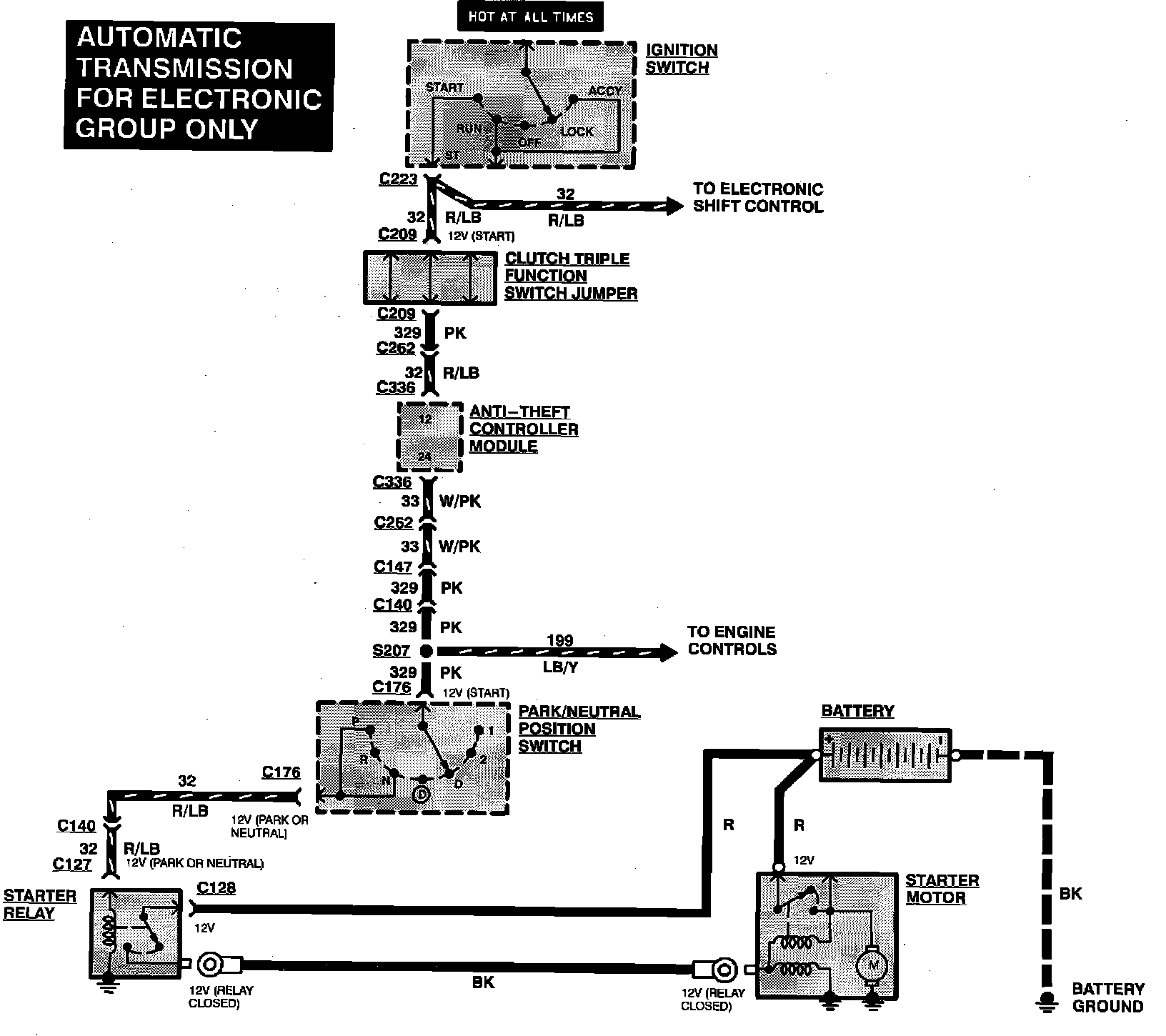

With Automatic Transmission And Electronic Group:

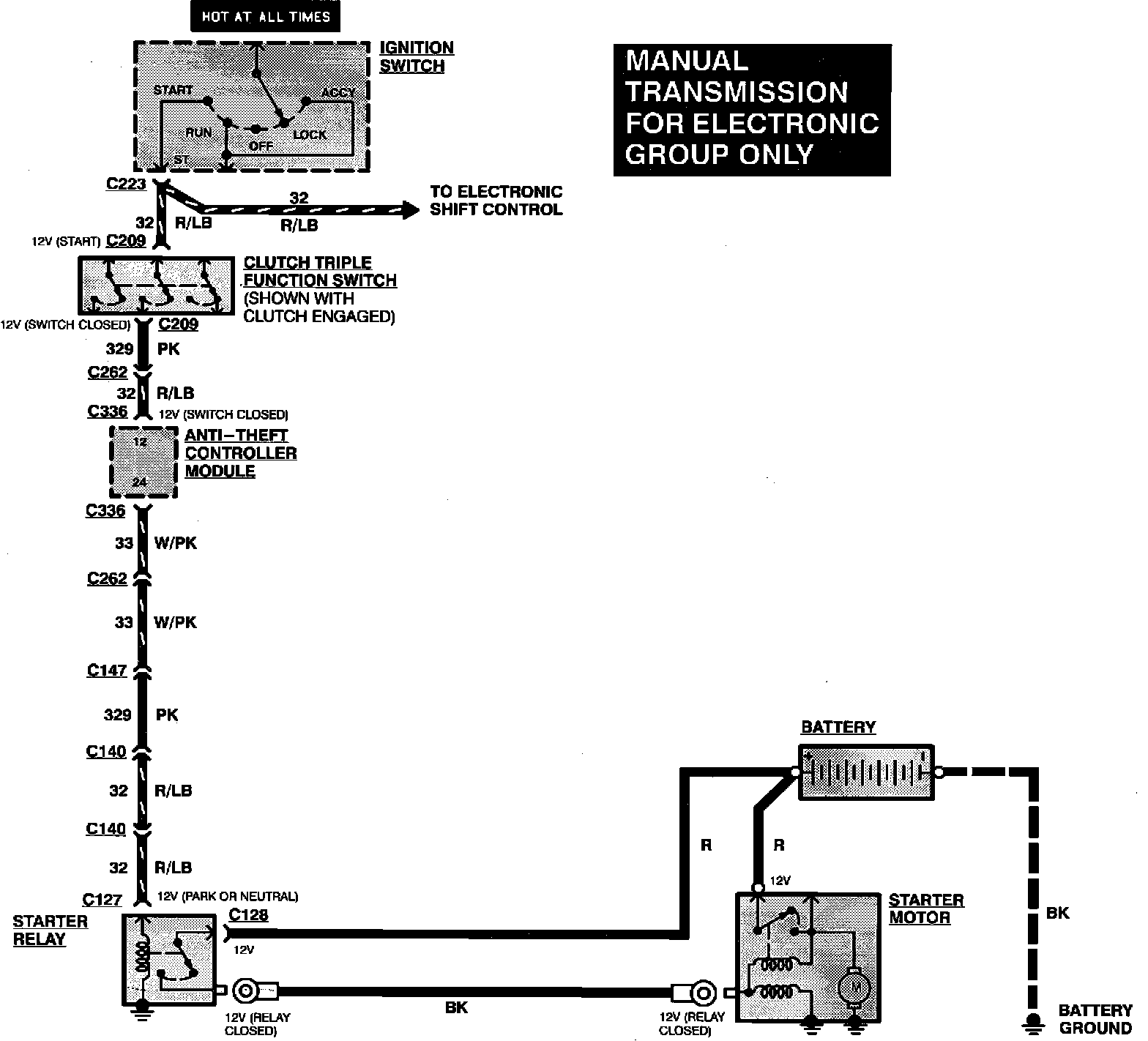

Starting System (Manual Transmission For Electronic Group Only):
