Behind Instrument Panel Views

Component Locations:

BACK UP LAMP SWITCH
BACK UP LAMP SWITCH (T-18 BORG-WARNER, S5-42 ZF)
DIFFERENTIAL SPEED SENSOR
E4OD TRANSMISSION
ELECTRONIC SHIFT CONTROL MODULE
FUEL PUMP/FUEL GAUGE SENDER UNIT
HEATED OXYGEN SENSOR
INERTIA FUEL SHUTOFF
LH FRONT POWER MIRROR
LH FRONT POWER MIRROR SWITCH
MANUAL LEVER POSITION SENSOR
RABS VALVE ASSEMBLY
REAR TANK FUEL PUMP/FUEL GAUGE SENDER UNIT
REAR WINDOW DEFROST GRID
RH FRONT POWER MIRROR
RH FRONT POWER MIRROR SWITCH
TAILGATE LATCH SWITCH
TAILGATE POWER WINDOW MOTOR
TAILGATE WINDOW SWITCH

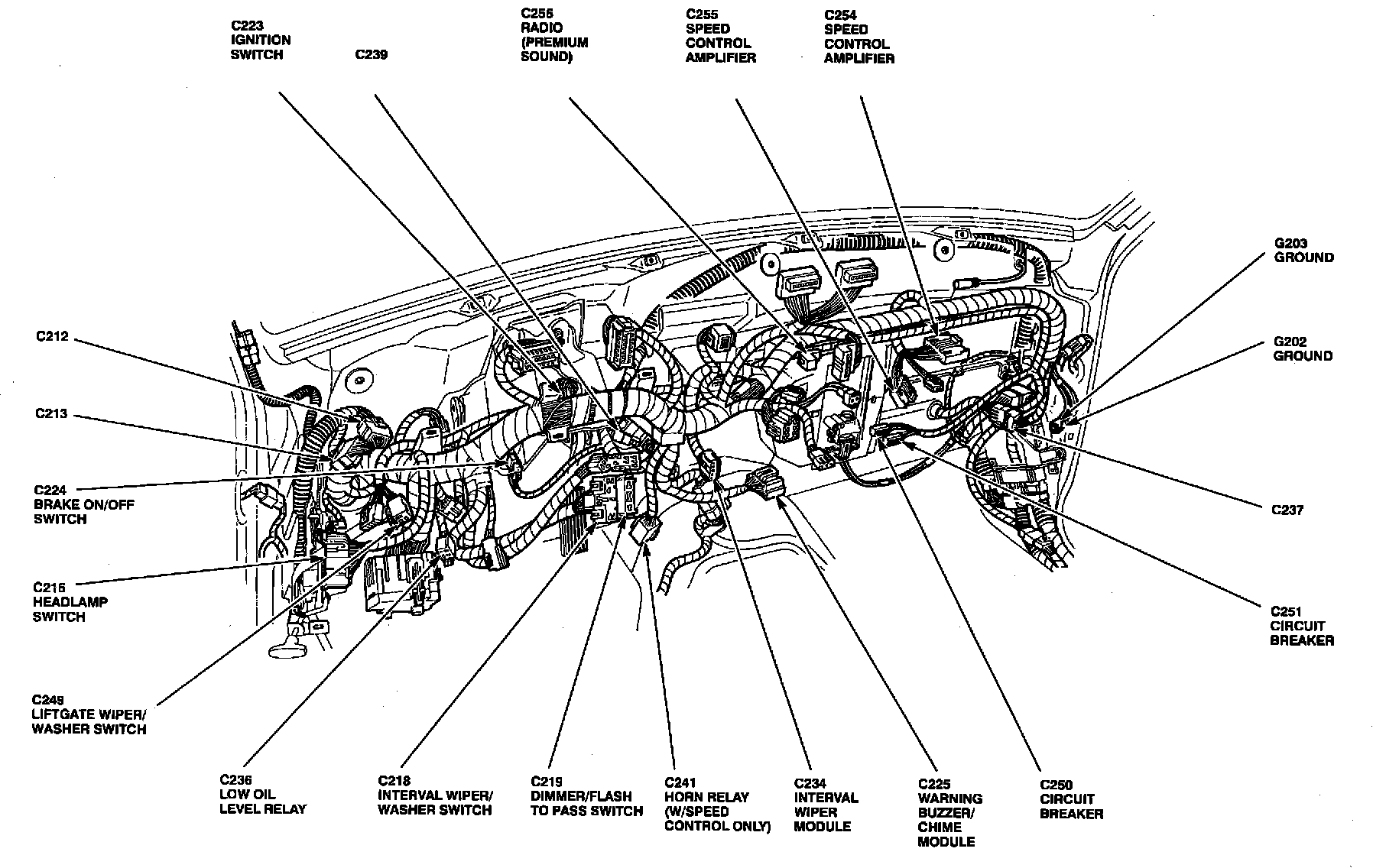

Component Locations:

BRAKE ON/OFF SWITCH
CIRCUIT BREAKER
DIMMER/FLASH RELAY
HEADLAMP SWITCH
HORN RELAY (w/SPEED CONTROL)
IGNITION SWITCH
INTERVAL WIPER MODULE
INTERVAL WIPER/WASHER SWITCH
LIFTGATE WIPER/WASHER SWITCH
LOW OIL LEVEL RELAY
RADIO (PREMIUM SOUND)
SPEED CONTROL AMPLIFIER
WARNING BUZZER/CHIME MODULE

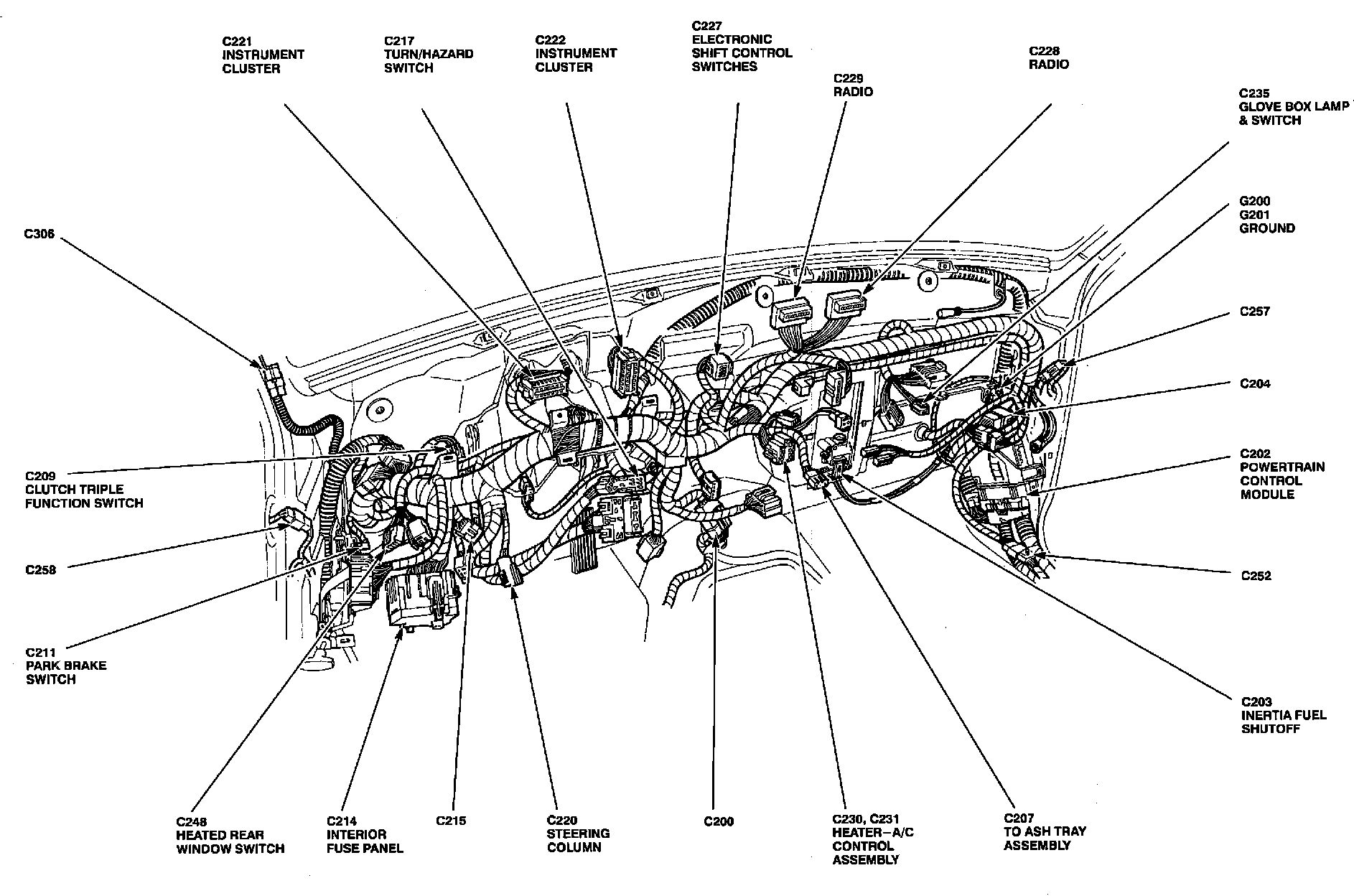

Component Locations:

A/C AND HEATER CONTROL ASSEMBLY
BRAKE ON/OFF SWITCH
CIRCUIT BREAKER
CLUTCH TRIPLE FUNCTION SWITCH
DIMMER/FLASH TO PASS SWITCH
ELECTRONIC SHIFT CONTROL SWITCHES
GLOVE BOX LAMP AND SWITCH
HORN RELAY (w/SPEED CONTROL)
IGNITION SWITCH
INERTIA FUEL SHUT OFF
INSTRUMENT CLUSTER
INTERIOR FUSE PANEL
INTERVAL WIPER/WASHER SWITCH
PARK BRAKE SWITCH
POWERTRAIN CONTROL MODULE
RADIO (PREMIUM SOUND)
REAR WINDOW DEFROST SWITCH
STEERING COLUMN
TURN/HAZARD SWITCH

Component Locations:

AUTOLAMP RELAY #1
AUTOLAMP RELAY #2
FOG LAMP RELAY
FOG LAMP SWITCH
HEADLAMP SWITCH
INTERVAL WIPER MODULE
LIFTGATE WIPER/WASHER SWITCH
LOW OIL LEVEL RELAY
REAR WINDOW DEFROST SWITCH
SPEED CONTROL AMPLIFIER
WARNING BUZZER/CHIME MODULE
