Home >> Ford Truck >> 1993 >> Explorer 2WD V6-245 4.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> PC - Spark Timing Check - EDIS >> PC1 - Check Power to PCM

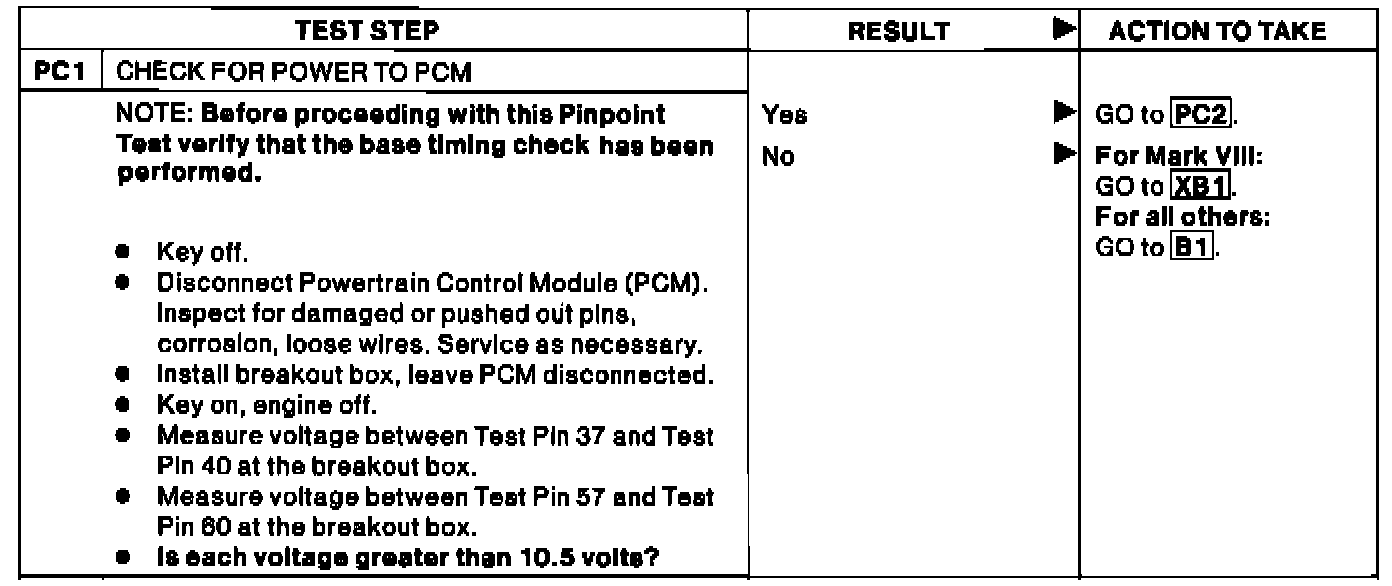

PC1 - Check Power to PCM

Pinpoint Test PC1:
