Full Engine Views

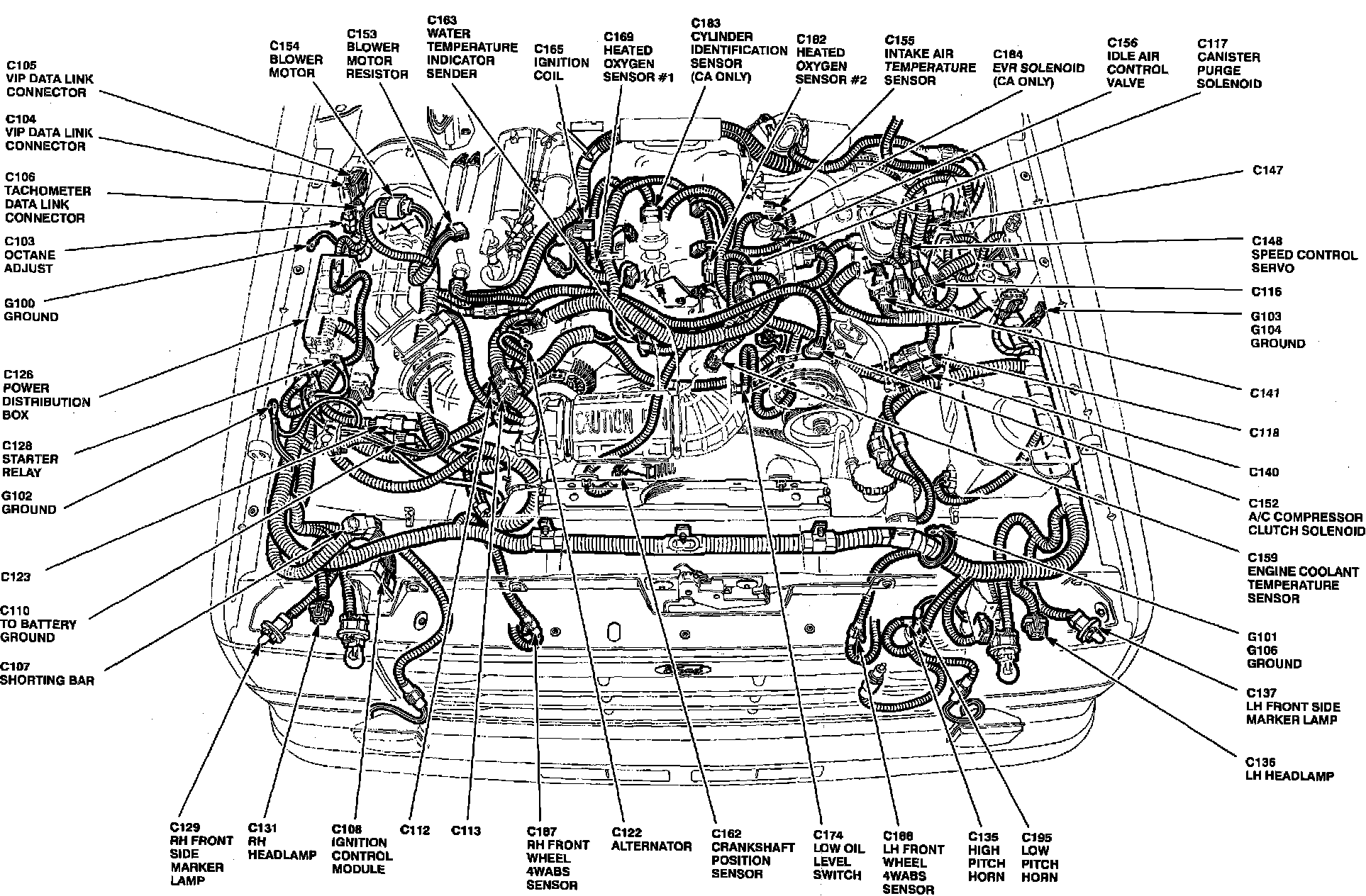

Component Locations:

A/C CLUTCH FIELD COIL
BLOWER MOTOR RESISTOR
CANISTER PURGE SOLENOID
DATA LINK CONNECTOR
EVR SOLENOID (CA ONLY)
HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
HORNS
IGNITION COIL
IGNITION CONTROL MODULE
INTAKE AIR TEMPERATURE SENSOR
LH FRONT SIDE MARKER LAMPS
LH FRONT WHEEL 4WABS SENSOR
LOW OIL LEVEL SWITCH
OCTANE ADJUST
RH FRONT WHEEL 4WABS SENSOR
RH FRONT SIDE MARKER LAMPS
SHORTING BAR
SPEED CONTROL SERVO
STARTER RELAY

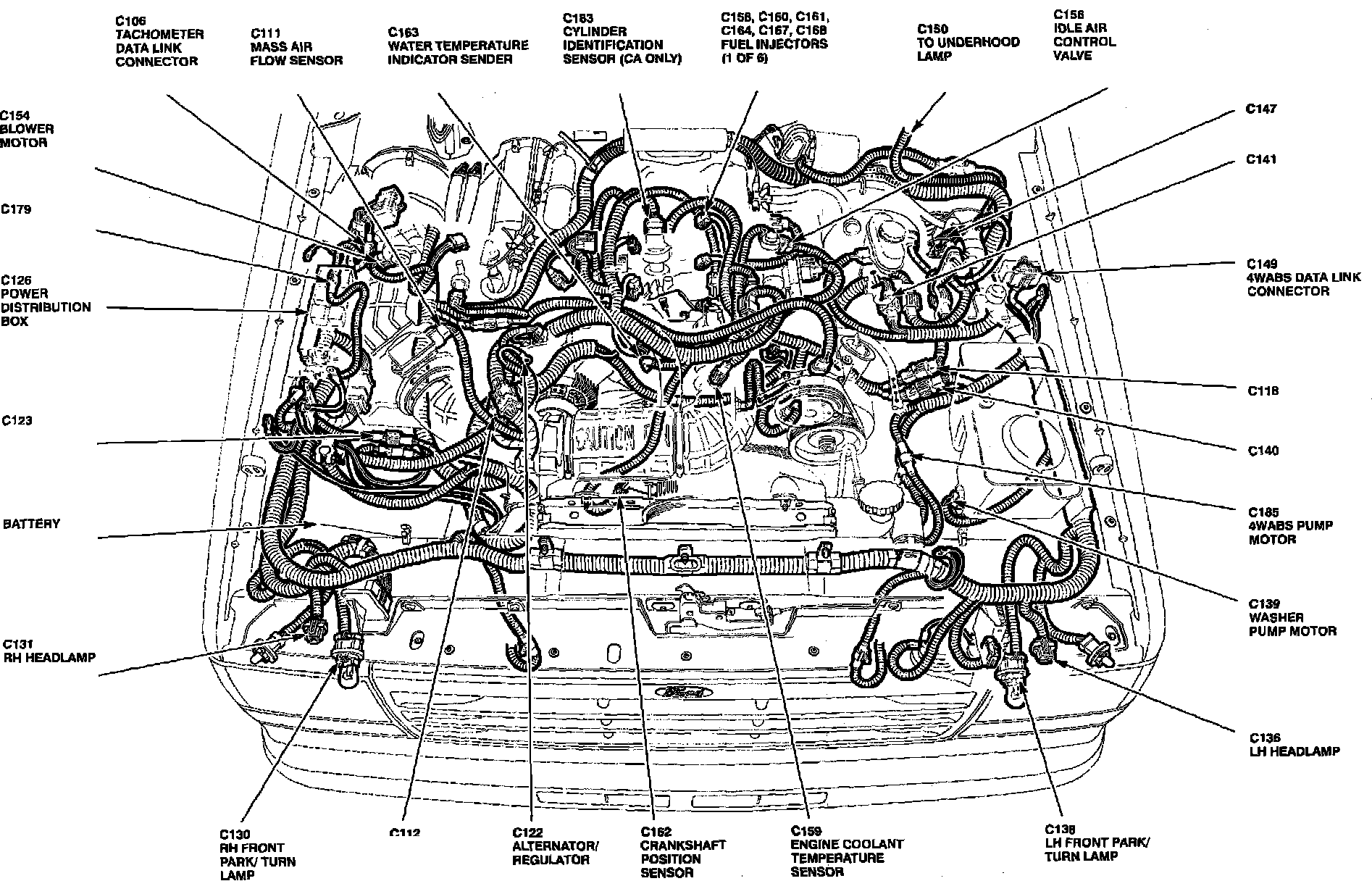

Component Locations:

4WABS DATA LINK CONNECTOR
4WABS PUMP MOTOR
ALTERNATOR/REGULATOR
BATTERY
BLOWER MOTOR
COOLANT TEMPERATURE SENDER
CRANK SHAFT POSITION SENSOR
CYLINDER IDENTIFICATION SENSOR (CA ONLY)
FUEL INJECTORS
IDLE AIR CONTROL VALVE
LEFT FRONT PARK/TURN LAMP
LH HEADLAMP
MASS AIR FLOW SENSOR
POWER DISTRIBUTION BOX
RH HEADLAMP
RIGHT FRONT PARK/TURN LAMP
TACHOMETER DATA LINK CONNECTOR
WATER TEMPERATURE INDICATOR SENDER (GAUGE)
WINDSHIELD WASHER PUMP MOTOR

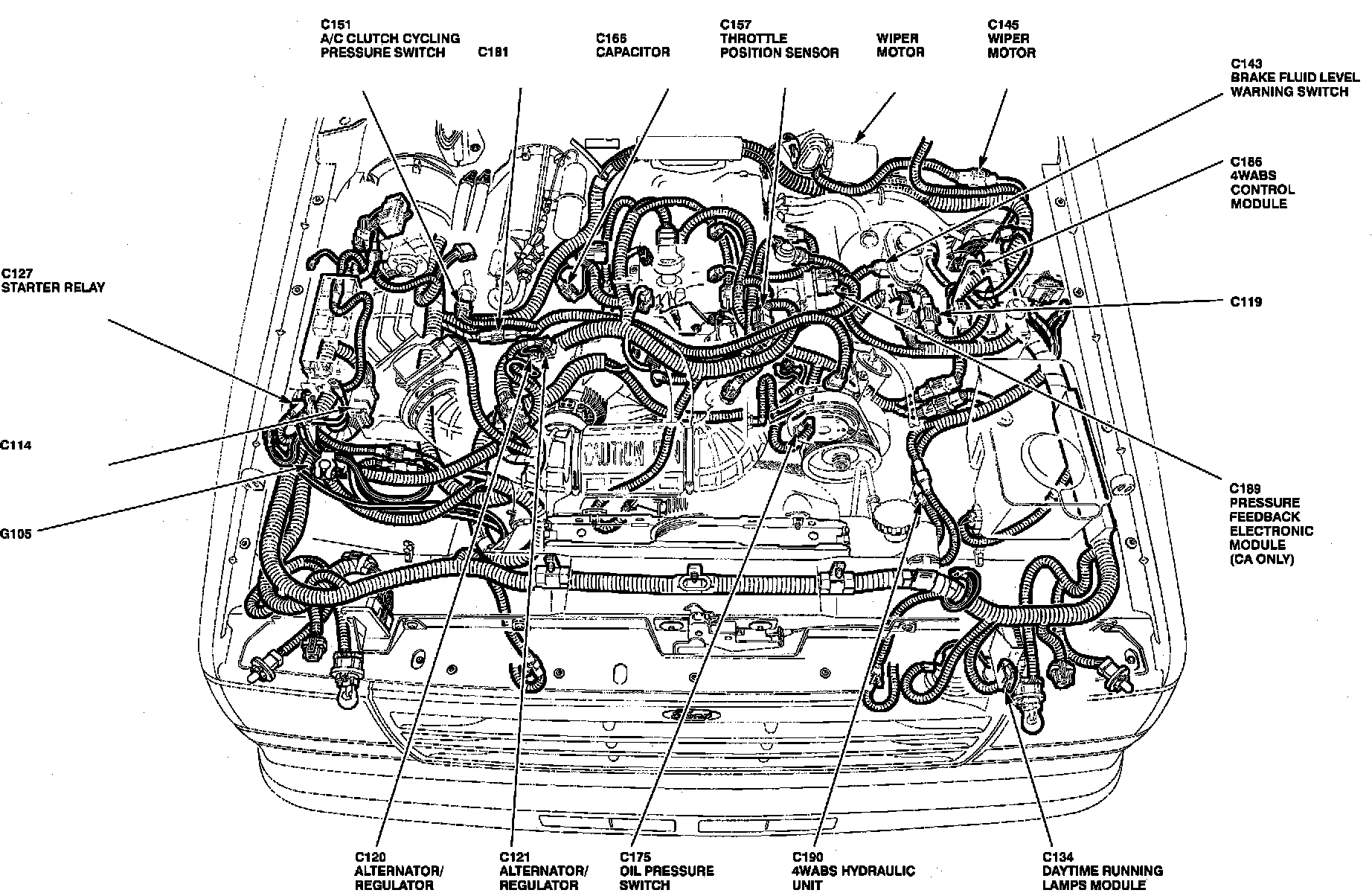

Component Locations:

4WABS CONTROL MODULE
4WABS HYDRAULIC UNIT
A/C CLUTCH CYCLING PRESSURE SWITCH
ALTERNATOR/REGULATOR
BRAKE FLUID LEVEL WARNING SWITCH
CAPACITOR
DAYTIME RUNNING LAMP MODULE
OIL PRESSURE SWITCH
PRESSURE FEEDBACK ELECTRONIC MODULE (CA ONLY)
STARTER RELAY
THROTTLE POSITION SENSOR
WINDSHIELD WIPER MOTOR

Component Locations:

COOLANT TEMPERATURE SENDER
CRANK SHAFT POSITION SENSOR
CYLINDER IDENTIFICATION SENSOR (CA ONLY)
DATA LINK CONNECTOR
FUEL INJECTORS
HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
HORNS
IDLE AIR CONTROL VALVE
IGNITION COIL
IGNITION CONTROL MODULE (ICM)
LH FRONT SIDE MARKER LAMPS
LH FRONT WHEEL 4WABS SENSOR
LH HEAD LAMP
LOW OIL LEVEL SWITCH
OCTANE ADJUST
POWER DISTRIBUTION BOX
RH FRONT SIDE MARKER LAMPS
RH FRONT WHEEL 4WABS SENSOR
RH HEADLAMP
SHORTING BAR
SPEED CONTROL SERVO
STARTER RELAY
TACHOMETER DATA LINK CONNECTOR
WATER TEMPERATURE INDICATOR SENDER (GAUGE)

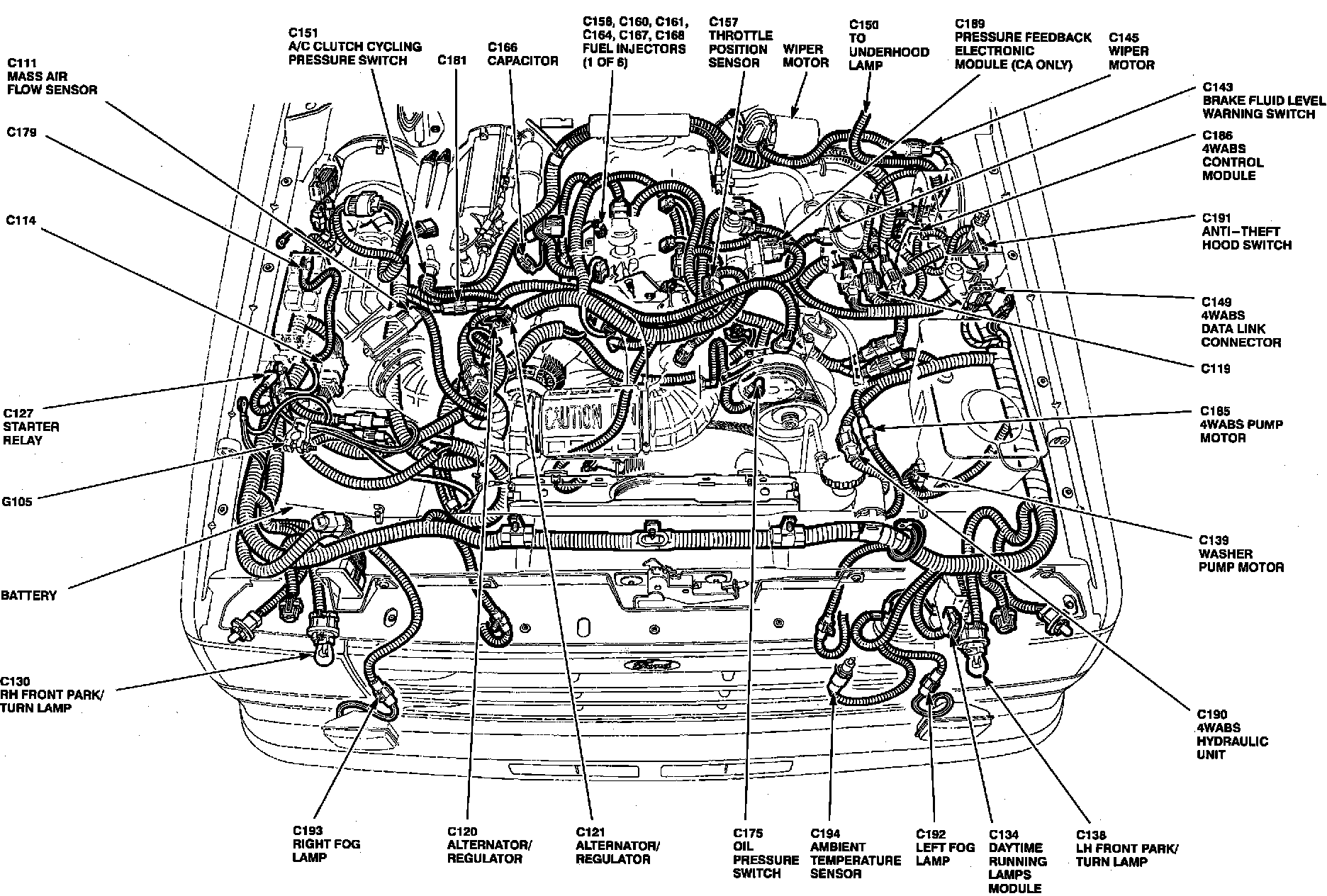

Component Locations:

4WABS CONTROL MODULE
4WABS DATA LINK CONNECTOR
4WABS HYDRAULIC UNIT
4WABS PUMP MOTOR
A/C CLUTCH CYCLING PRESSURE SWITCH
ALTERNATOR/REGULATOR
AMBIENT TEMPERATURE SENSOR
ANTI-THEFT HOOD SWITCH
BATTERY
BRAKE FLUID LEVEL WARNING SWITCH
DAYTIME RUNNING LAMP MODULE
FUEL INJECTORS
LEFT FRONT PARK/TURN LAMP
LH FOG LAMP
MASS AIR FLOW SENSOR
OIL PRESSURE SWITCH
PRESSURE FEEDBACK ELECTRONIC MODULE (CA ONLY)
RH FOG LAMP
RH FRONT PARK/TURN LAMP
STARTER RELAY
THROTTLE POSITION SENSOR
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR
