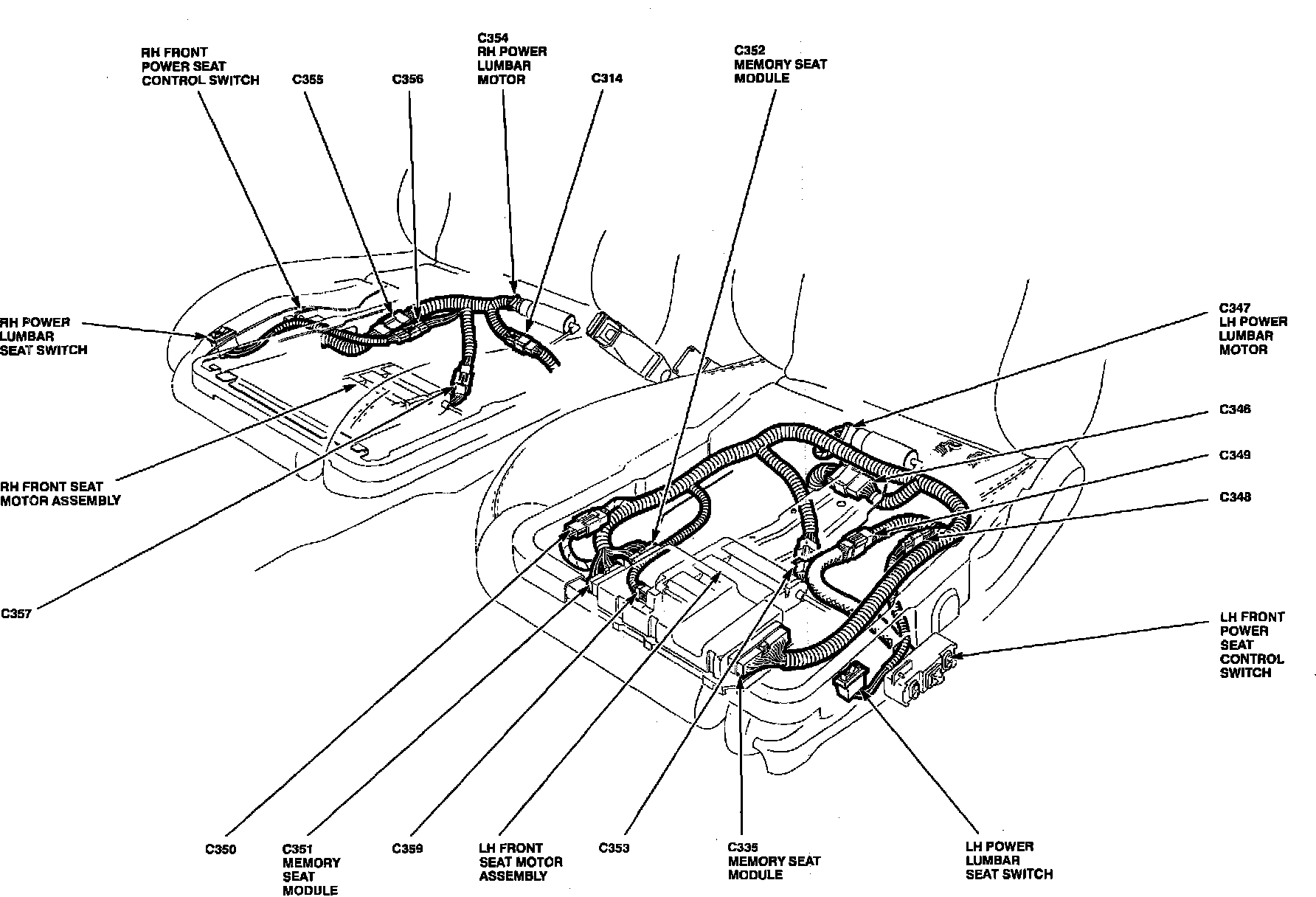

Under Seat View

Component Locations:

LH FRONT POWER SEAT CONTROL SWITCH
LH FRONT SEAT MOTOR ASSEMBLY
LH POWER LUMBAR SEAT MOTOR
LH POWER LUMBAR SEAT SWITCH
RH FRONT POWER SEAT CONTROL SWITCH
RH FRONT SEAT MOTOR ASSEMBLY
RH POWER LUMBAR SEAT MOTOR
RH POWER LUMBAR SEAT SWITCH

Component Locations:

LH FRONT POWER SEAT CONTROL SWITCH
LH FRONT SEAT MOTOR ASSEMBLY
LH POWER LUMBAR SEAT MOTOR
LH POWER LUMBAR SEAT SWITCH
MEMORY SEAT MODULE
MEMORY SEAT MODULE
RH FRONT POWER SEAT CONTROL SWITCH
RH FRONT SEAT MOTOR ASSEMBLY
RH POWER LUMBAR SEAT MOTOR
RH POWER LUMBAR SEAT SWITCH
