Turn Signal Switch: Testing and Inspection

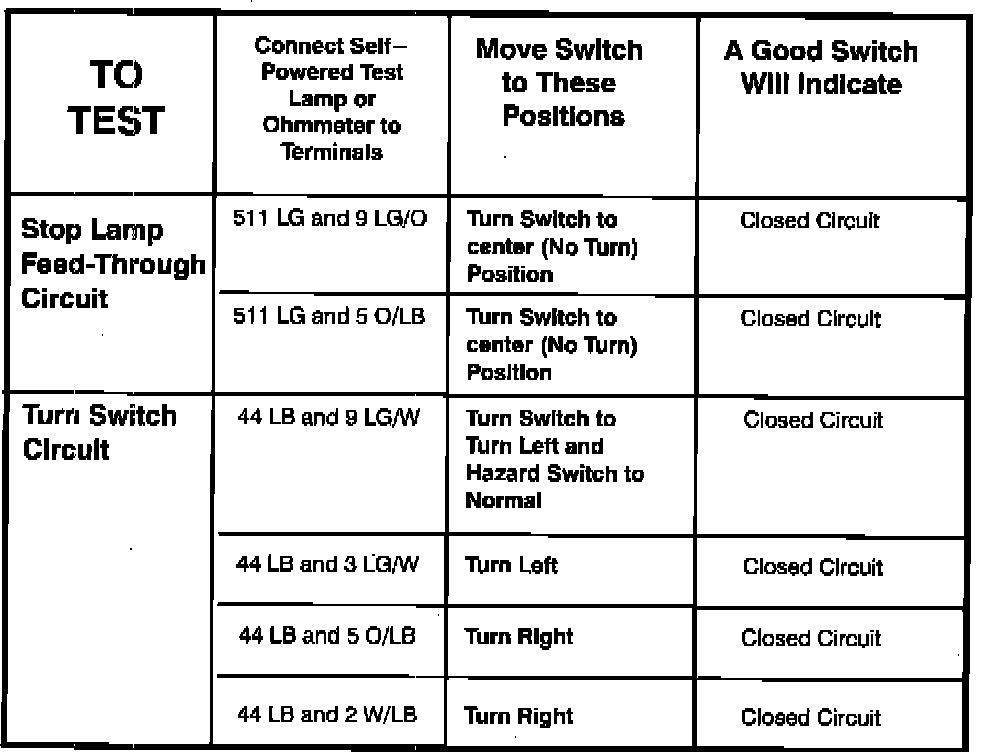

Component Testing Procedure:




Switch Connector End View:

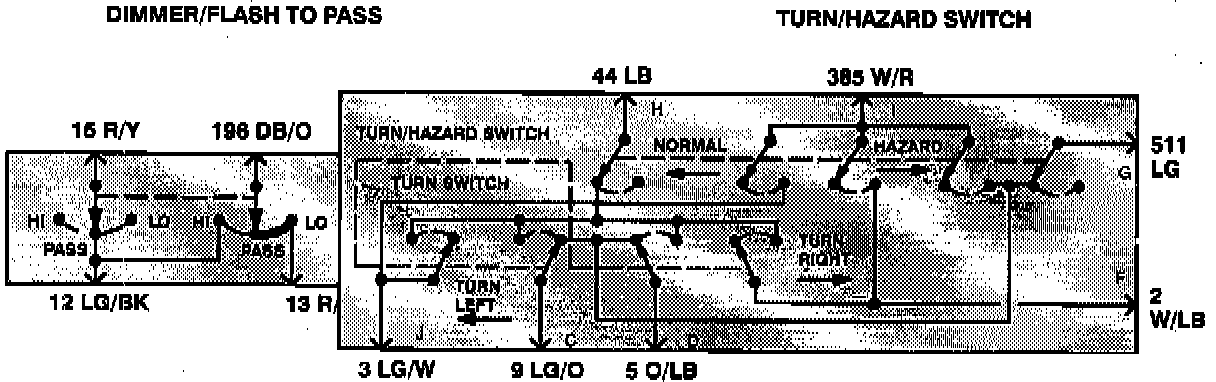

Switch Schematic:
