Home
>>
Ford Truck
>>
1993
>>
Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
Power Seat Control Module

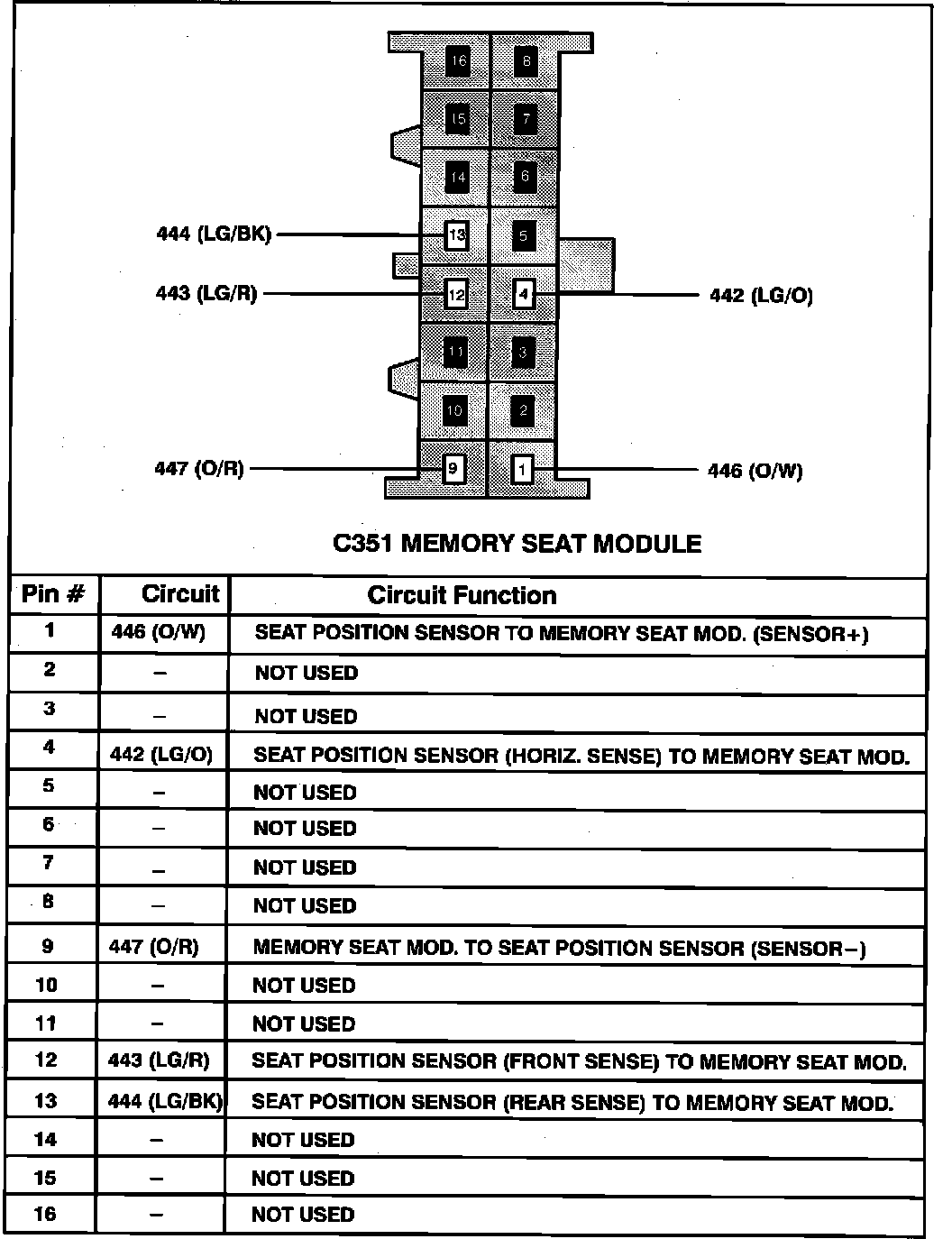

Memory Seat Module:

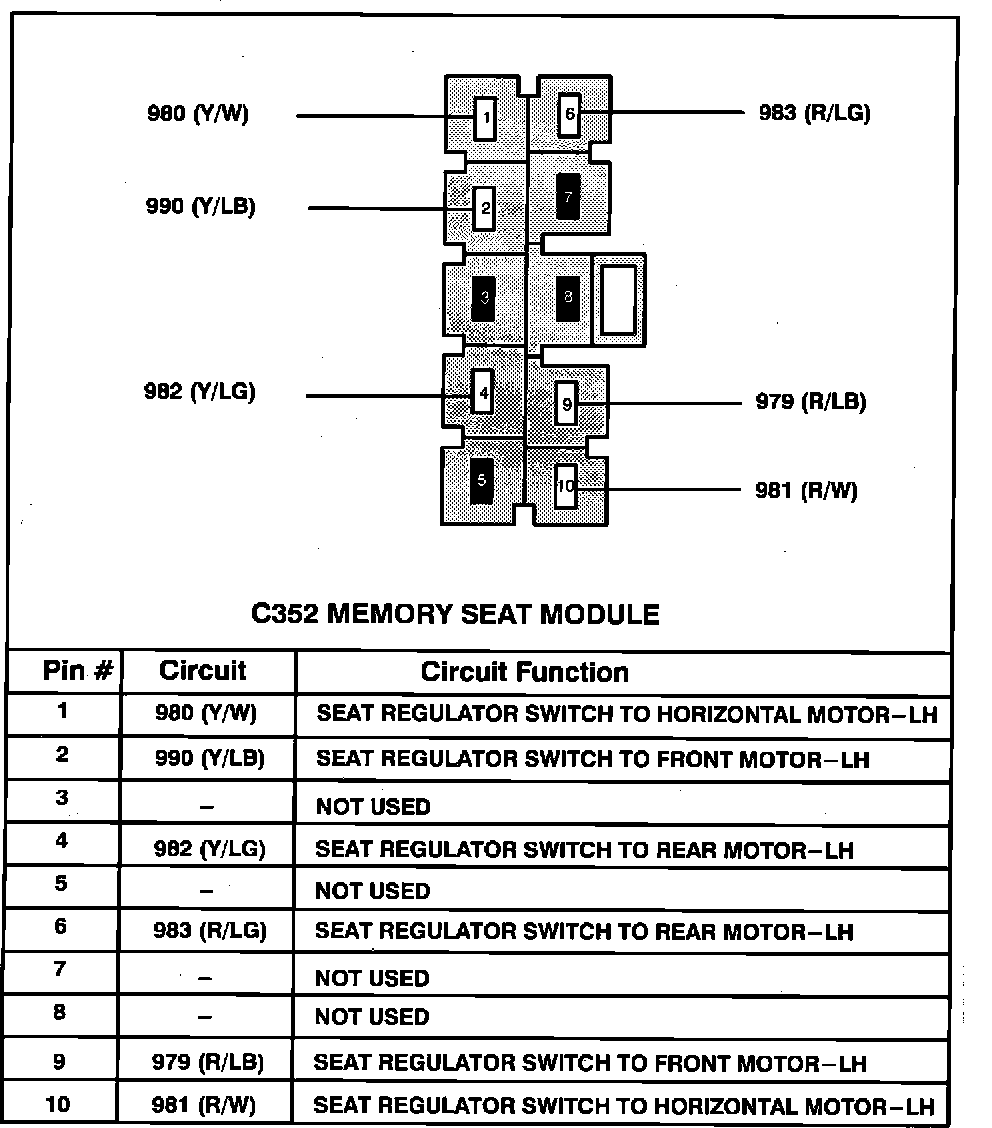

Memory Seat Module:
Memory Seat Module:
