Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

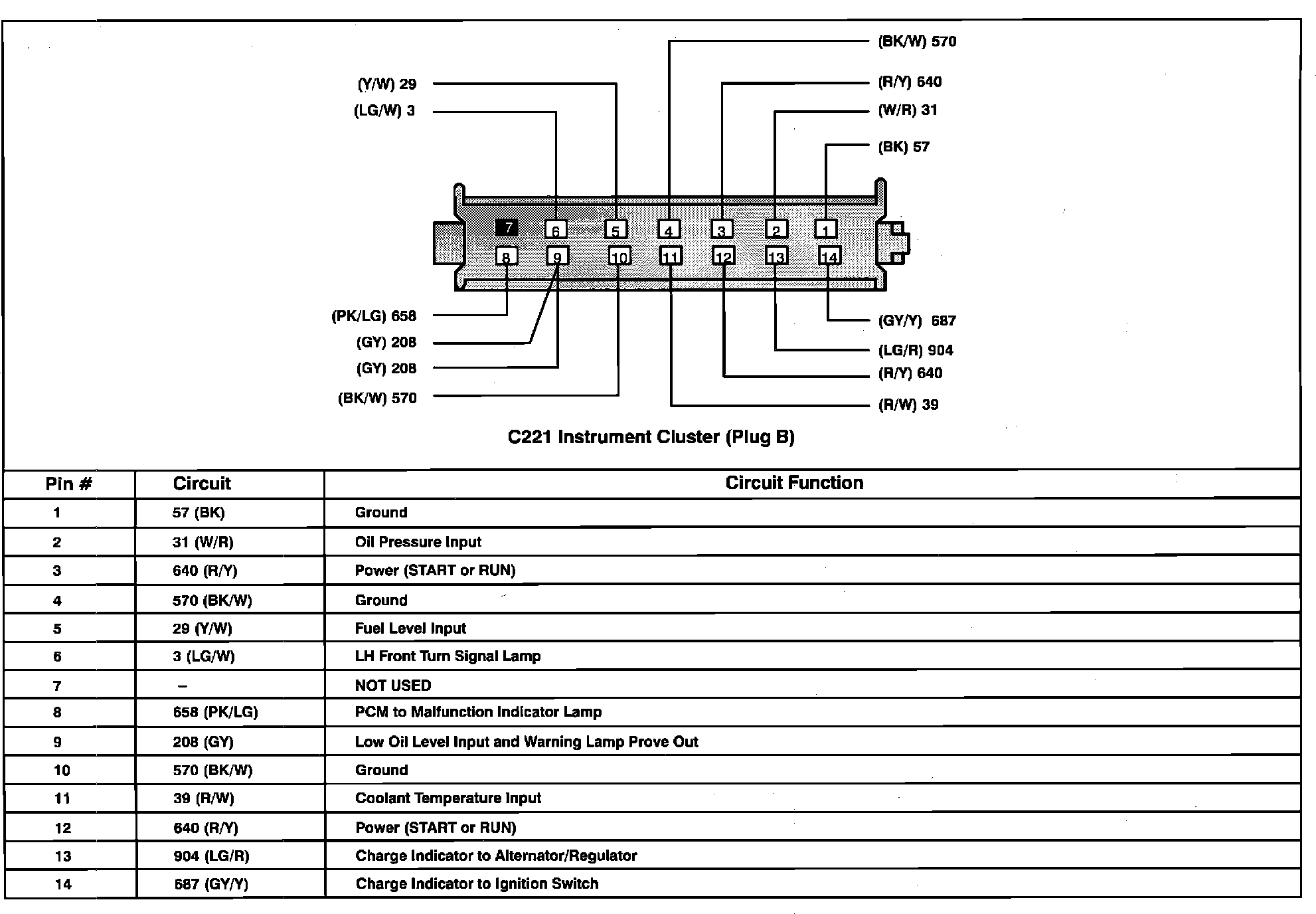

Instrument Cluster (Plug B):
Instrument Cluster (Plug A) (Gray):
