Floor Console

Removal and Installation

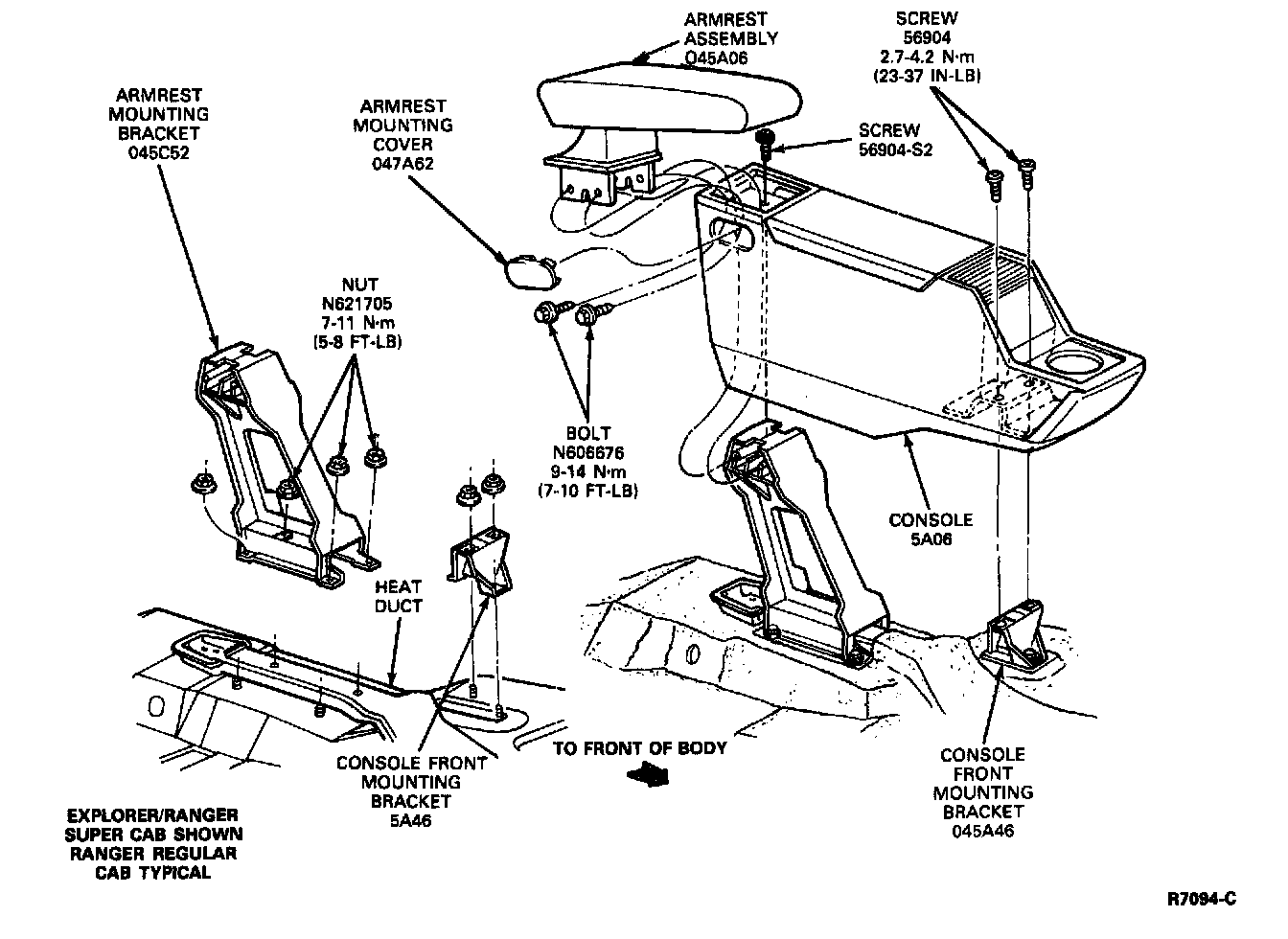

1. Remove console armrest mounting covers. Remove four bolts retaining console armrest assembly to console armrest mounting bracket, and remove armrest assembly.
2. Remove one screw under the armrest assembly (rear part of console), and two screws in the utility tray (front part of console), to remove the entire floor console assembly from the two brackets.

To install, reverse the removal procedure. Tighten the mounting screws to 2.7-4.2 N.m (23-37 in-lb), and the bolts to 9-14 N.m (7-10 ft-lb).
