Ignition System: Locations

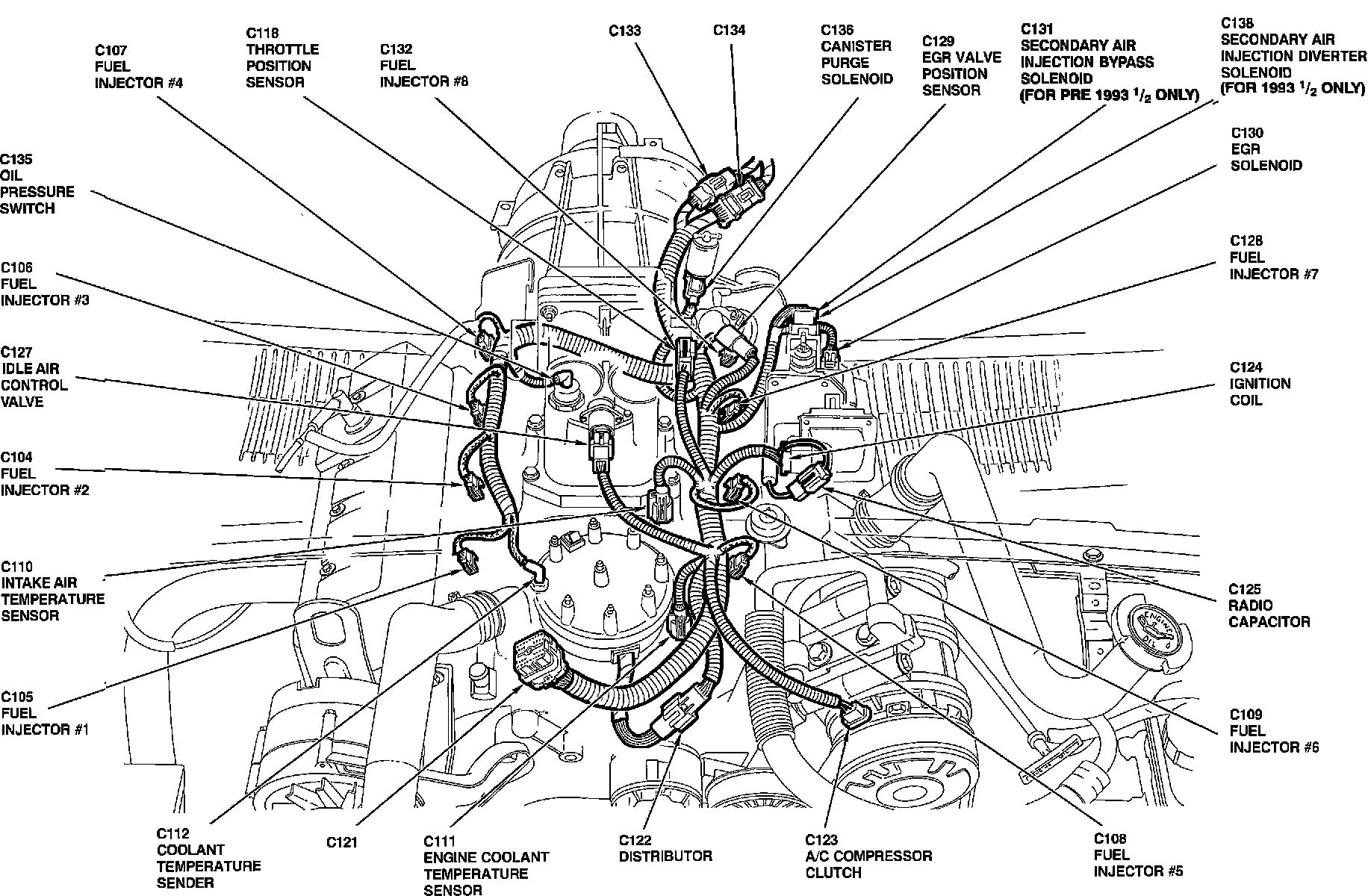

Component Locations:

FUEL INJECTOR #4
THROTTLE POSITION SENSOR
FUEL INJECTOR #8
CANISTER PURGE SOLENOID
EGR VALVE POSITION SENSOR
SECONDARY AIR INJECTION BYPASS SOLENOID (FOR PRE 1993 1/2 ONLY)
SECONDARY AIR INJECTION DIVERTER SOLENOID (FOR 1993 1/2 ONLY)
EGR SOLENOID FUEL
INJECTOR #7
IGNITION COIL
RADIO CAPACITOR
FUEL INJECTOR #6
FUEL INJECTOR #5
A/C COMPRESSOR
CLUTCH DISTRIBUTOR
ENGINE COOLANT TEMPERATURE SENSOR
COOLANT TEMPERATURE SENDER
FUEL INJECTOR #1
INTAKE AIR TEMPERATURE SENSOR
FUEL INJECTOR #2
IDLE AIR CONTROL VALVE
FUEL INJECTOR #3
OIL PRESSURE SWITCH

Component Locations:

A/C CLUTCH CYCLING PRESSURE SWITCH
AUXILIARY BATTERY RELAY
BARO SENSOR
BLOWER MOTOR
BLOWER MOTOR RESISTOR
DATA LINK CONNECTOR
DUEL BRAKE WARNING SWITCH
ENGINE COMPARTMENT FUSE PANEL
HEATED OXYGEN SENSOR CONNECTOR
HIGH PITCH HORN
IGNITION CONTROL MODULE
INTAKE AIR TEMPERATURE SENSOR (SFI ONLY)
LH HEADLAMP
LOW PITCH HORN
MANUAL LEVER POSITION SENSOR (SFI ONLY)
MASS AIR FLOW SENSOR (SFI ONLY)
MODIFIED VEHICLE POWER
RABS DATA LINK CONNECTOR
RADIATOR CENTER FORWARD CRASH SENSOR
RH HEADLAMP
SHORTING BAR
TRANSMISSION SPEED SENSOR (SFI ONLY)
VIP DATA LINK CONNECTOR
