Engine Controls

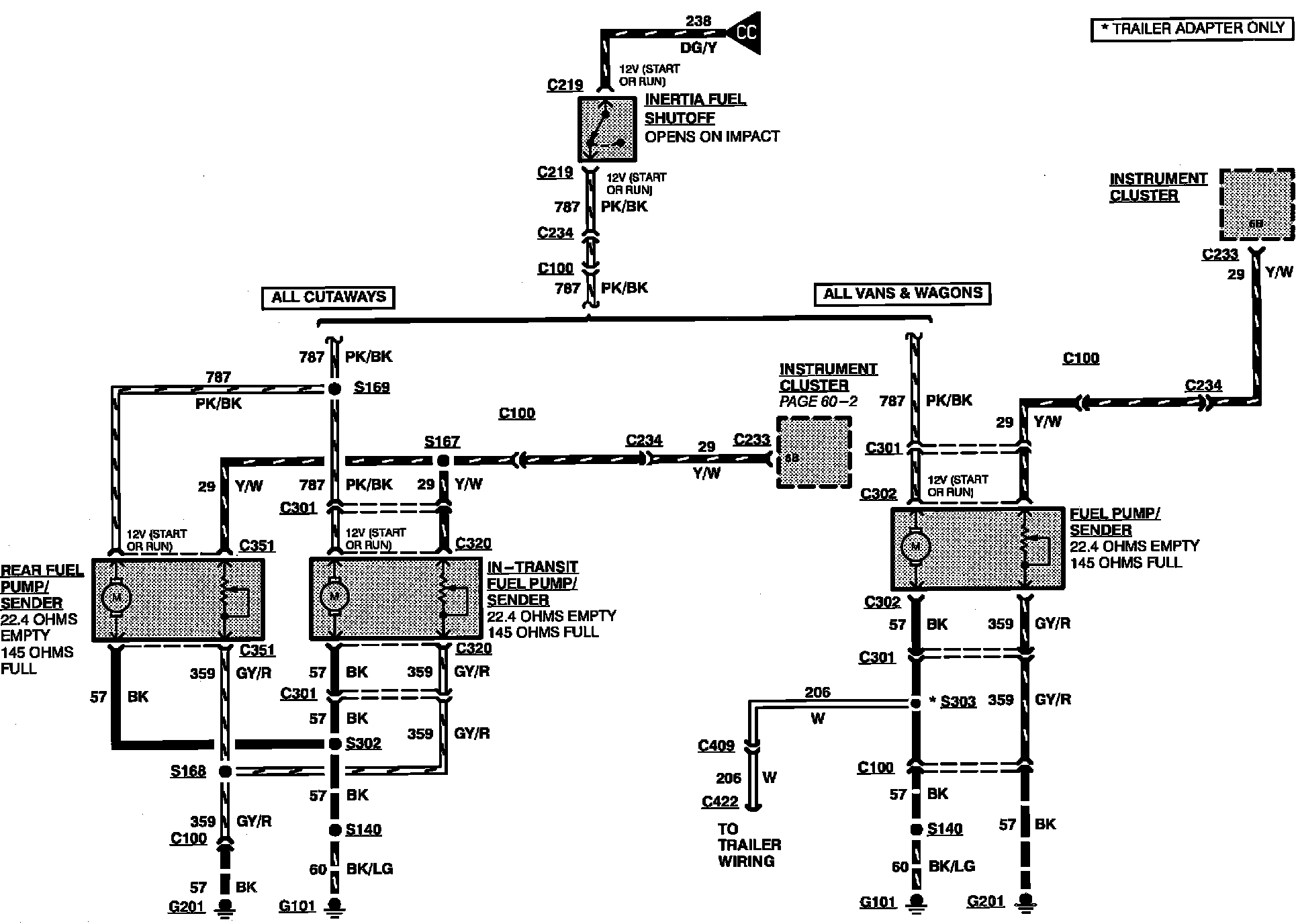

Engine Controls:

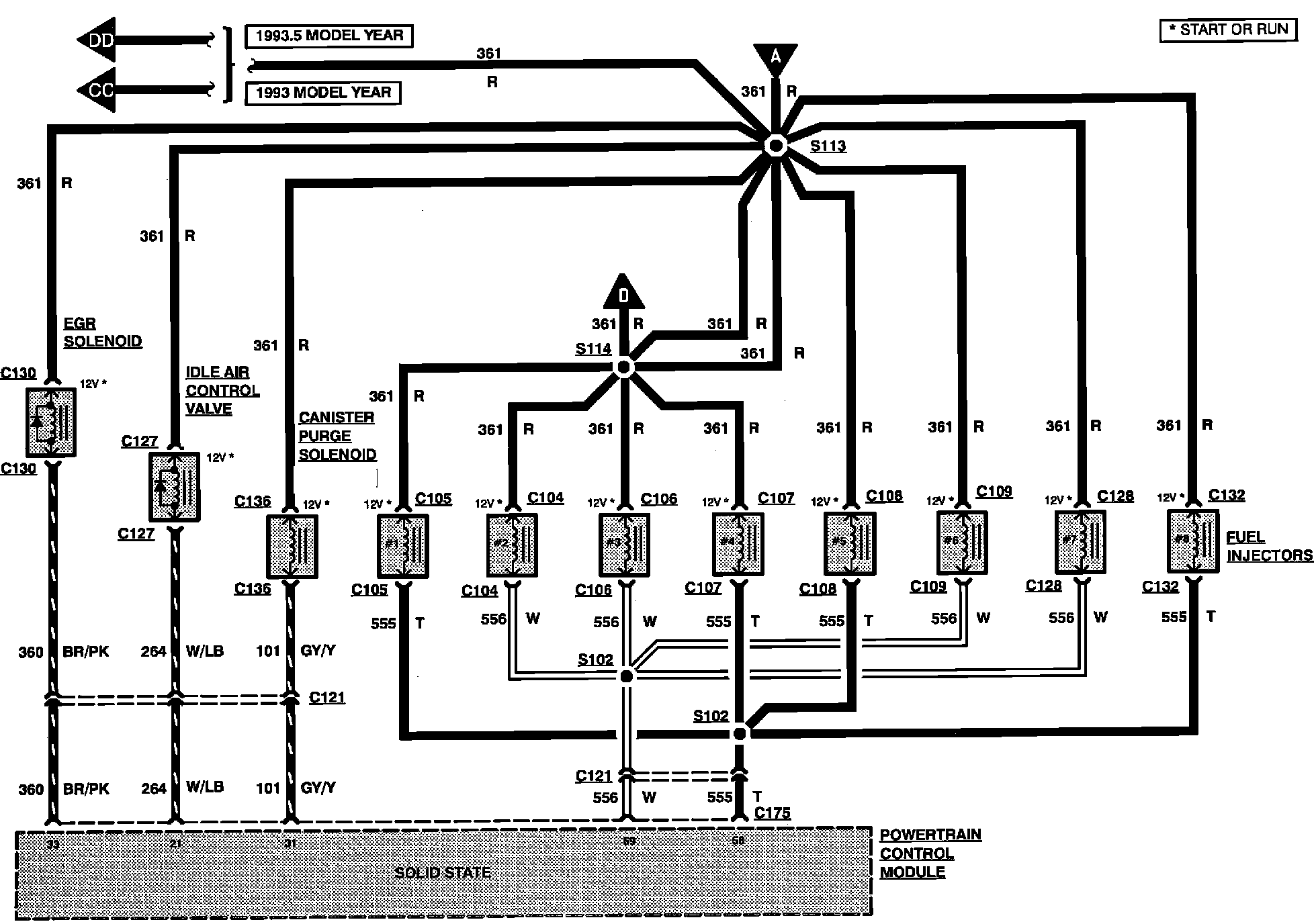

Engine Controls:






Engine Controls:






Engine Controls:






Engine Controls:






Engine Controls:
