Ford Truck
>>
1993
>>
E 250 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Cylinder Head Assembly
Cylinder Head Assembly

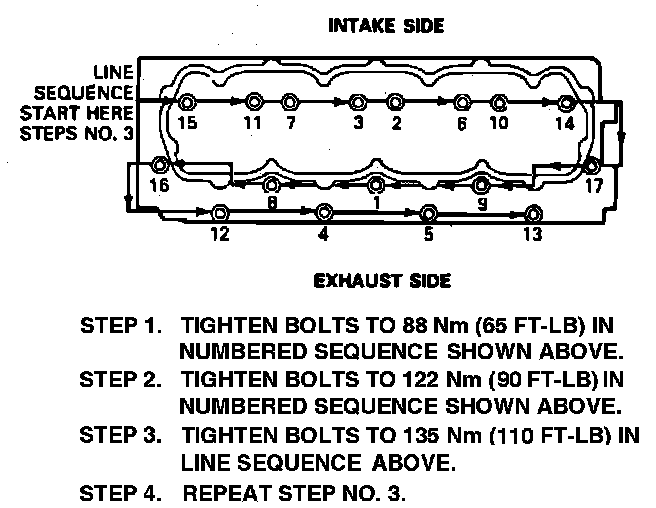

Fig. 10 Cylinder Head Tightening Sequence:
