Home
>>
Ford Truck
>>
1993
>>
E 250 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse K
Fuse K

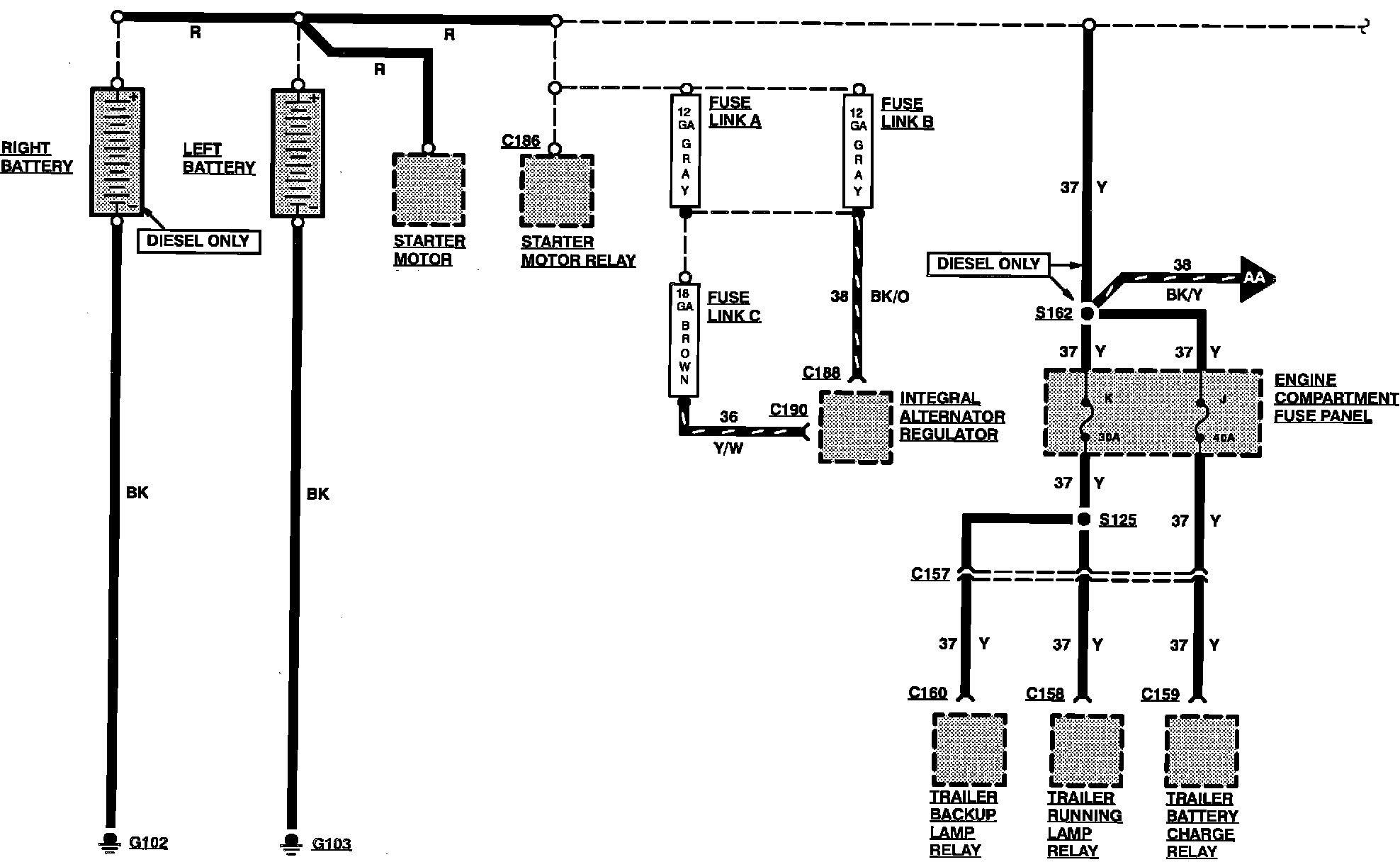

Power Distribution:
