Ford Truck
>>
1993
>>
E 250 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>

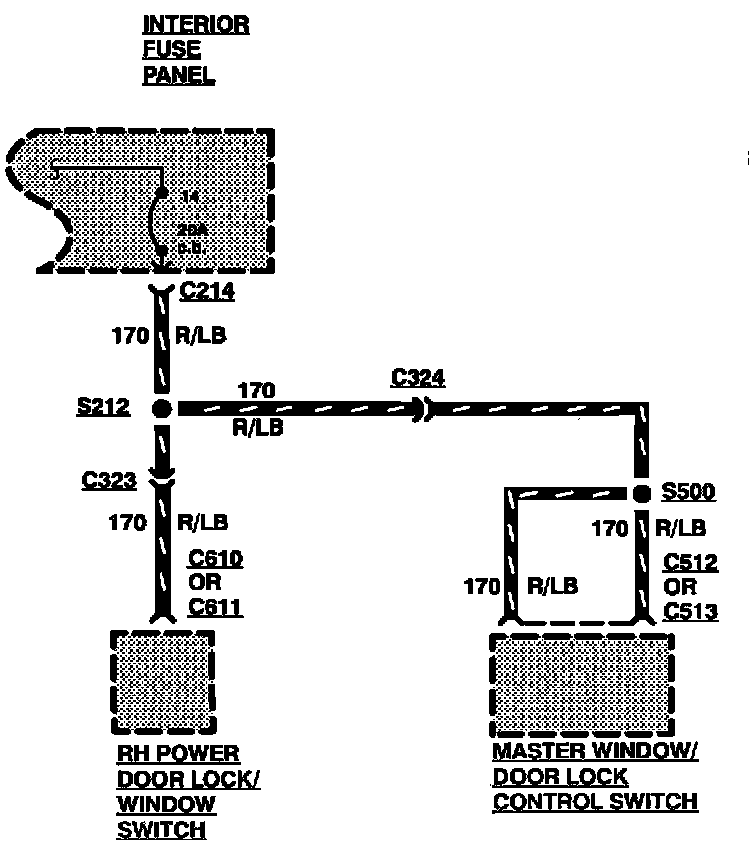

Circuit 14
Circuit 14
Power Distribution:
