Home >> Ford Truck >> 1993 >> E 250 Van V8-7.3L DSL >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> System Pre-Checks >> System Pre-Check Pinpoint Tests >> C - Yellow Light Self-Check OK, But Automatically Flashes >> C1-C2

C1-C2

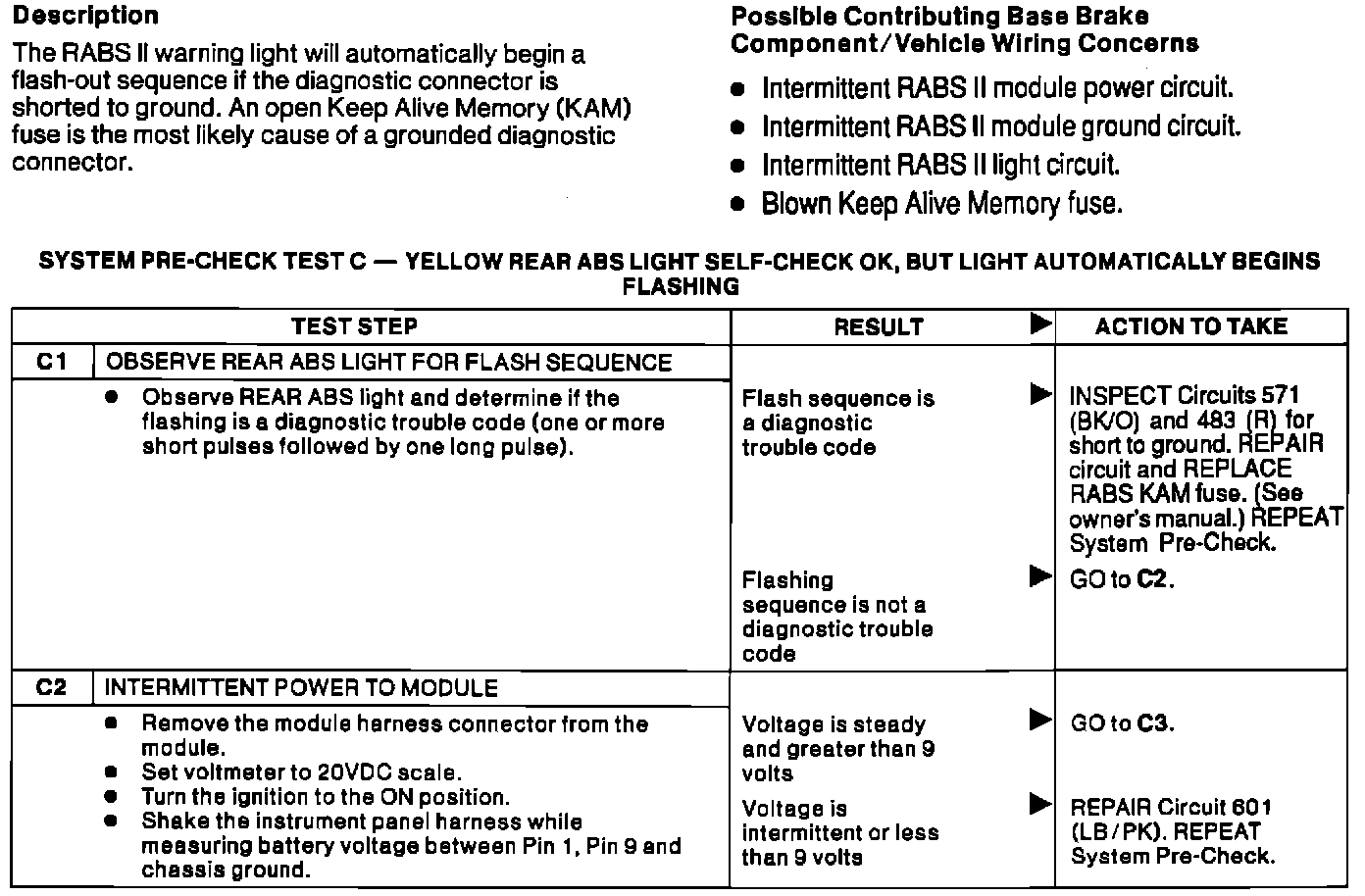

System Pre-Test Chart C:
