Home
>>
Ford Truck
>>
1993
>>
Bronco Full Size V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Driver's Power Window Switch
Driver's Power Window Switch

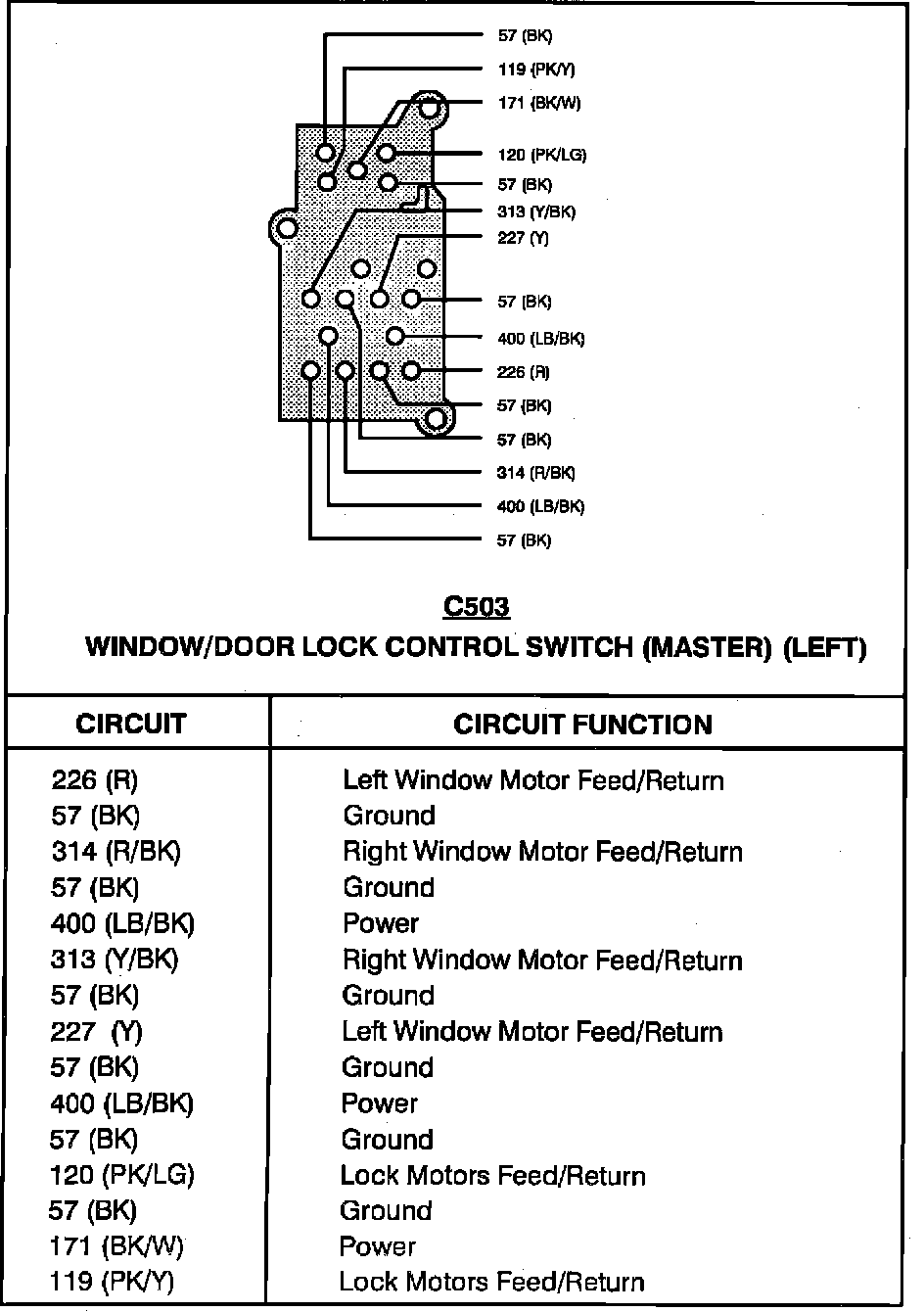

Window/Door Lock Control Switch (Master) (Left):
