UPPER ARM

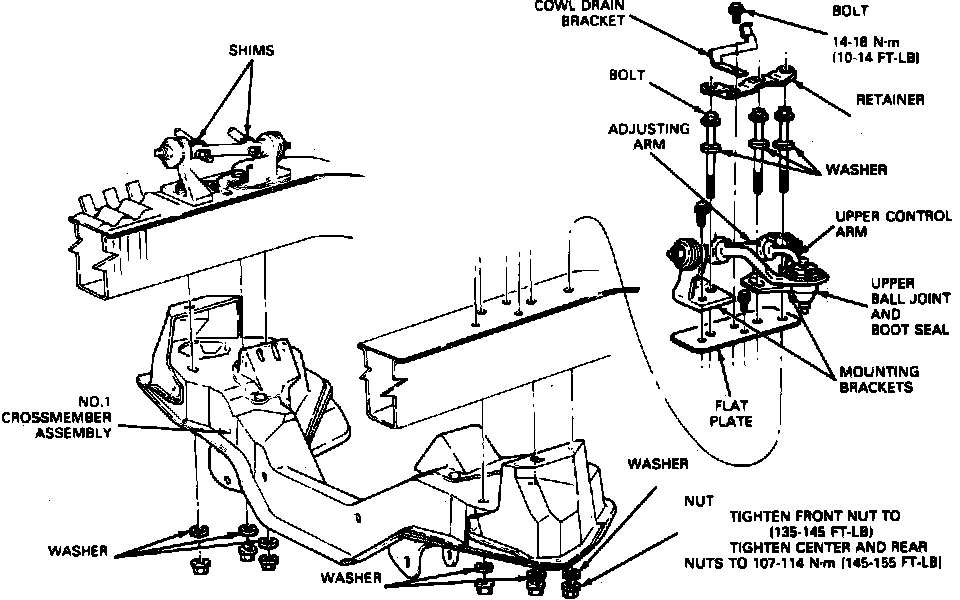

Fig. 5 Upper Control Arm Assembly And Mounting Bracket Replacement. 2WD:

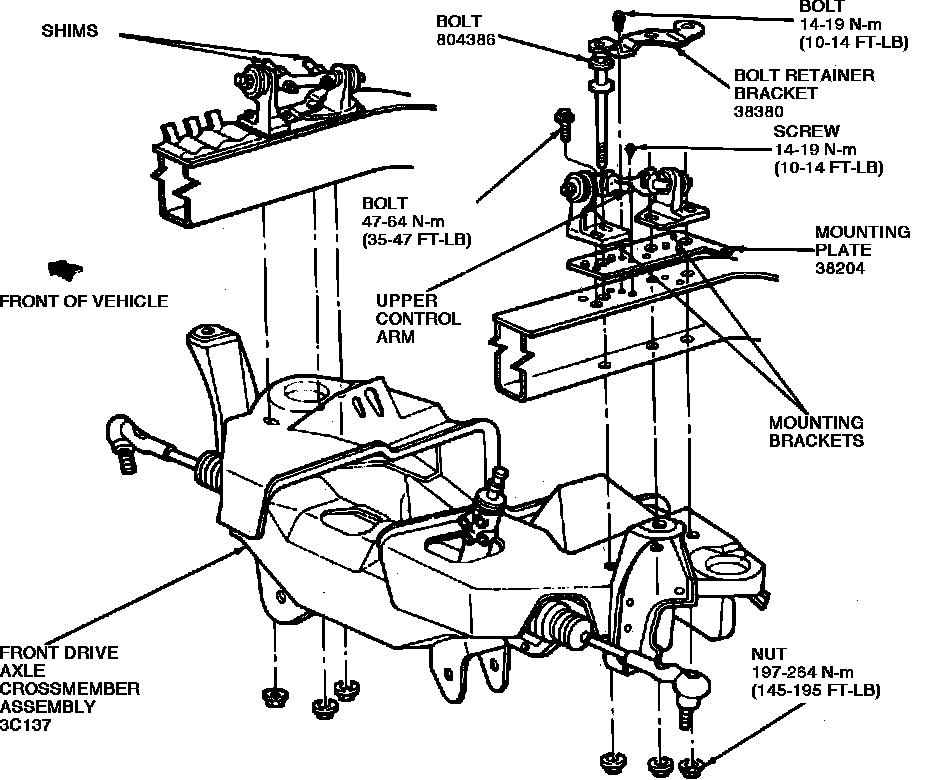

Fig. 6 Upper Control Arm Assembly And Mounting Bracket Replacement, 4WD:

1. On 4 x 2 models, remove spindle as outlined previously.
2. On 4 x 4 models, remove steering knuckle as outlined in STEERING KNUCKLE AND BALL JOINT (FWD).
3. Remove cowl drain bracket retaining bolt, then bracket and retainer plate, Figs. 5 and 6.
