Ford Truck
>>
1993
>>
Aerostar AWD V6-245 4.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
TB - 4X4 Low/Overdrive Cancel Switch
>>
TB - Testing Schematic
>>
Transfer Case
>>
Exc. Touchdrive Option
Exc. Touchdrive Option

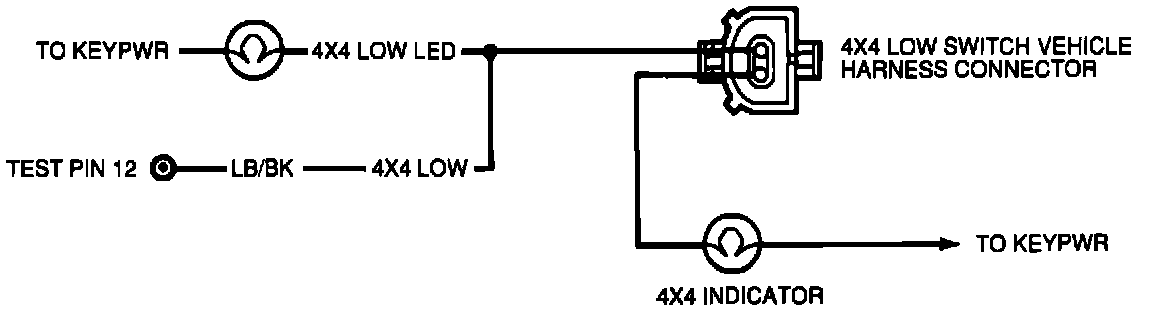

Schematic Diagram:
