NC - EDIS Ignition Diagnostic Monitor
>>
NC2 - Service Code 226: IDM Circuit Failure
NC2 - Service Code 226: IDM Circuit Failure

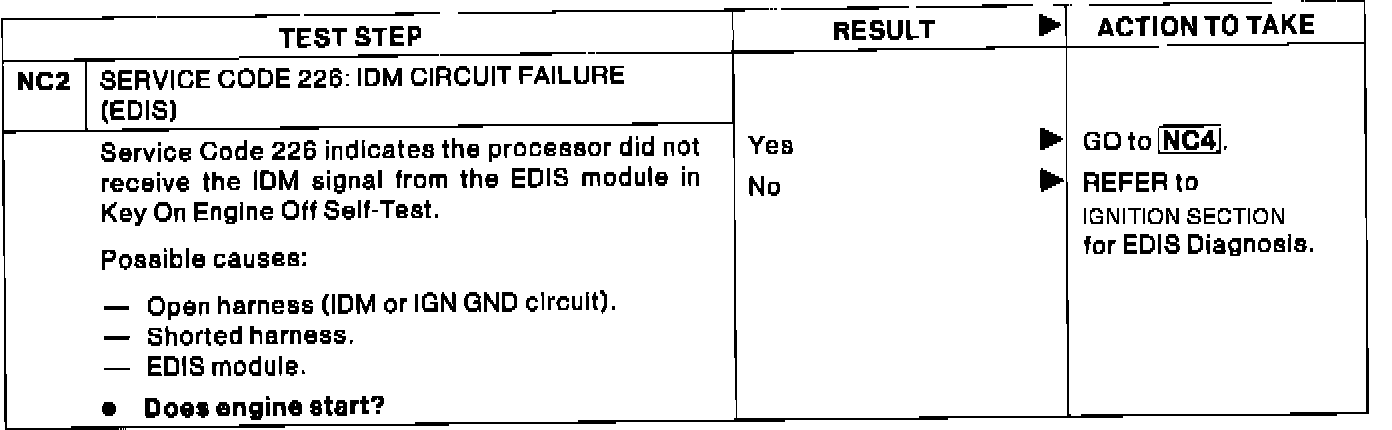

Pinpoint Test NC2:
