Power Distribution

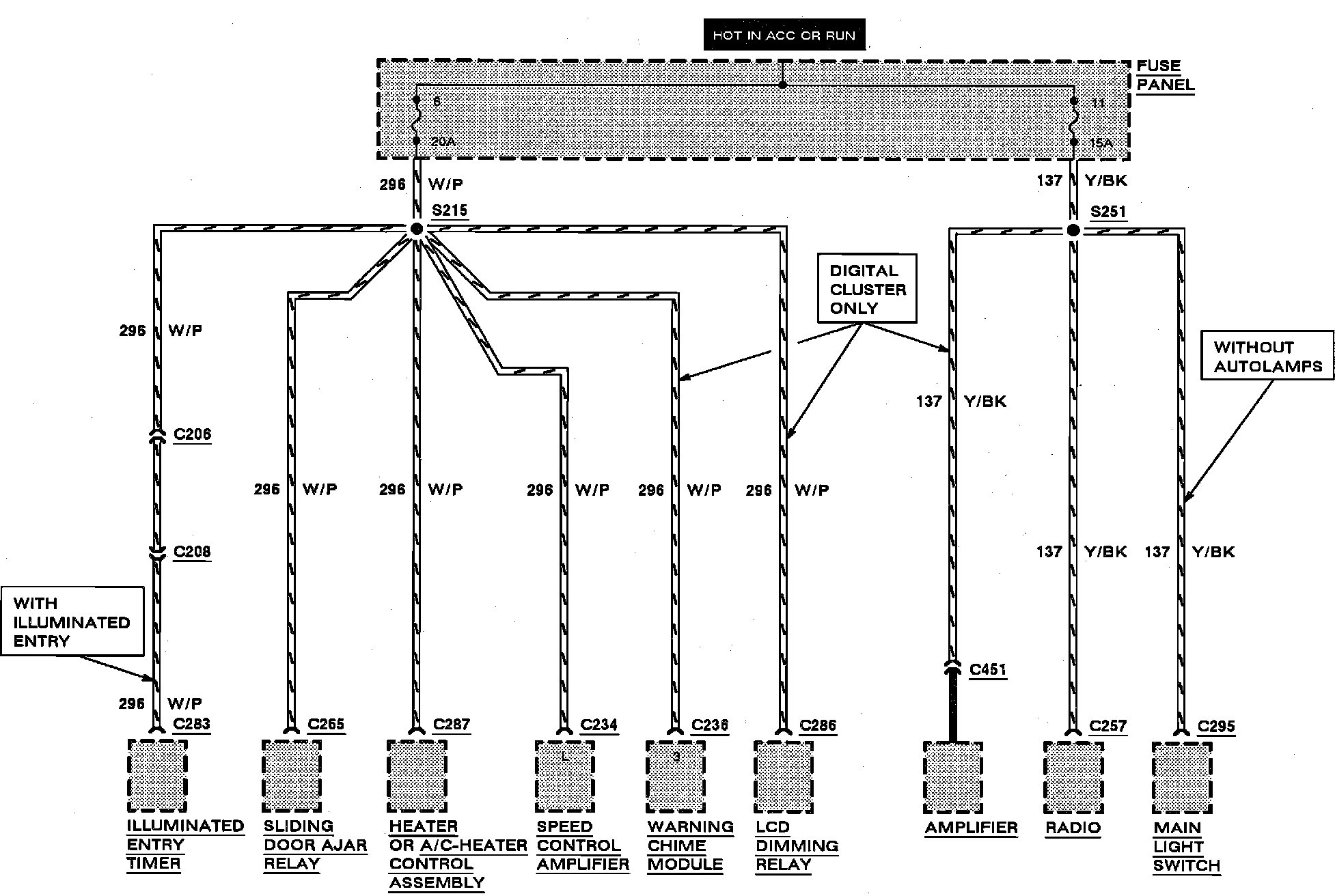

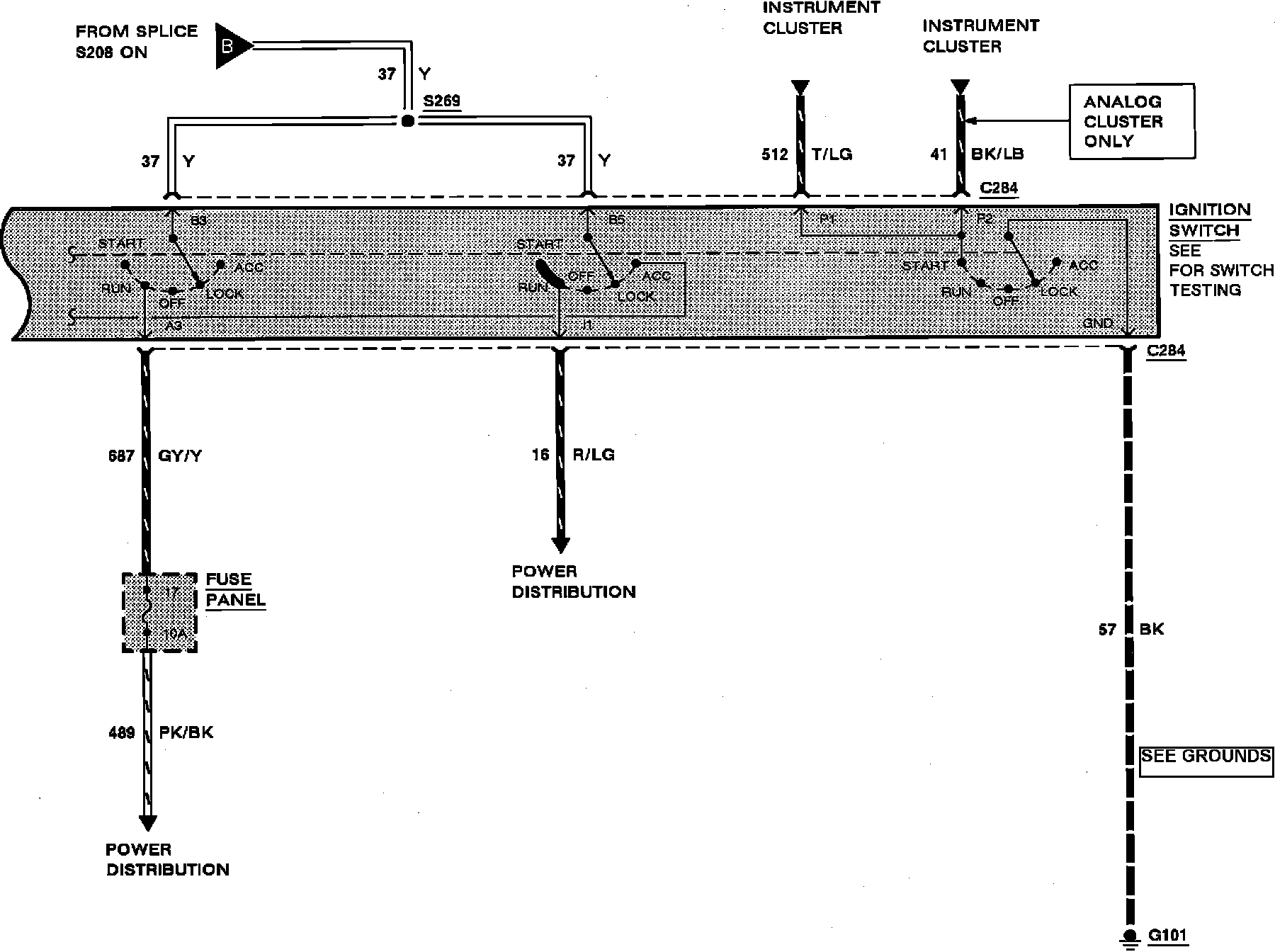

Power Distribution:

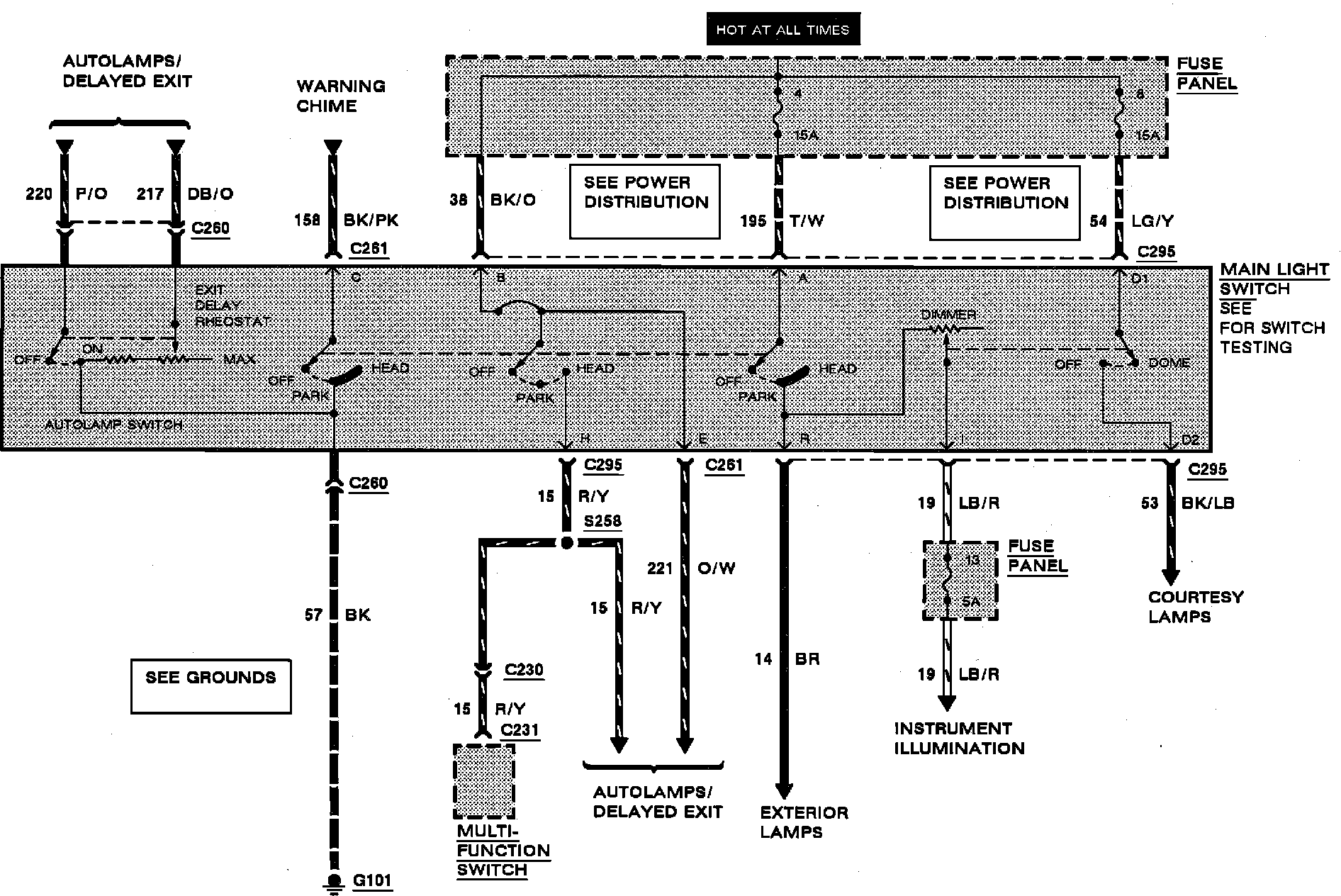

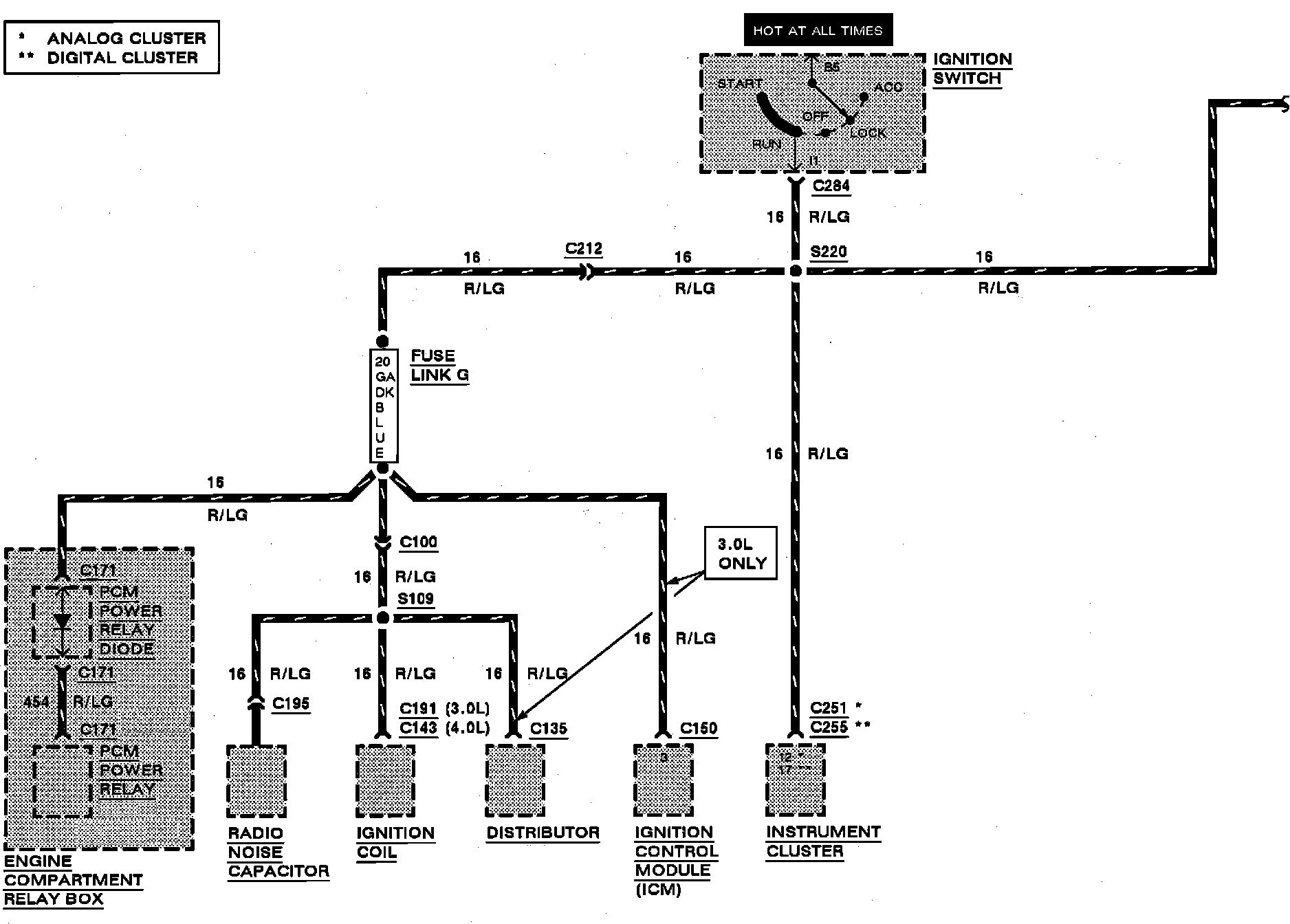

Power Distribution:

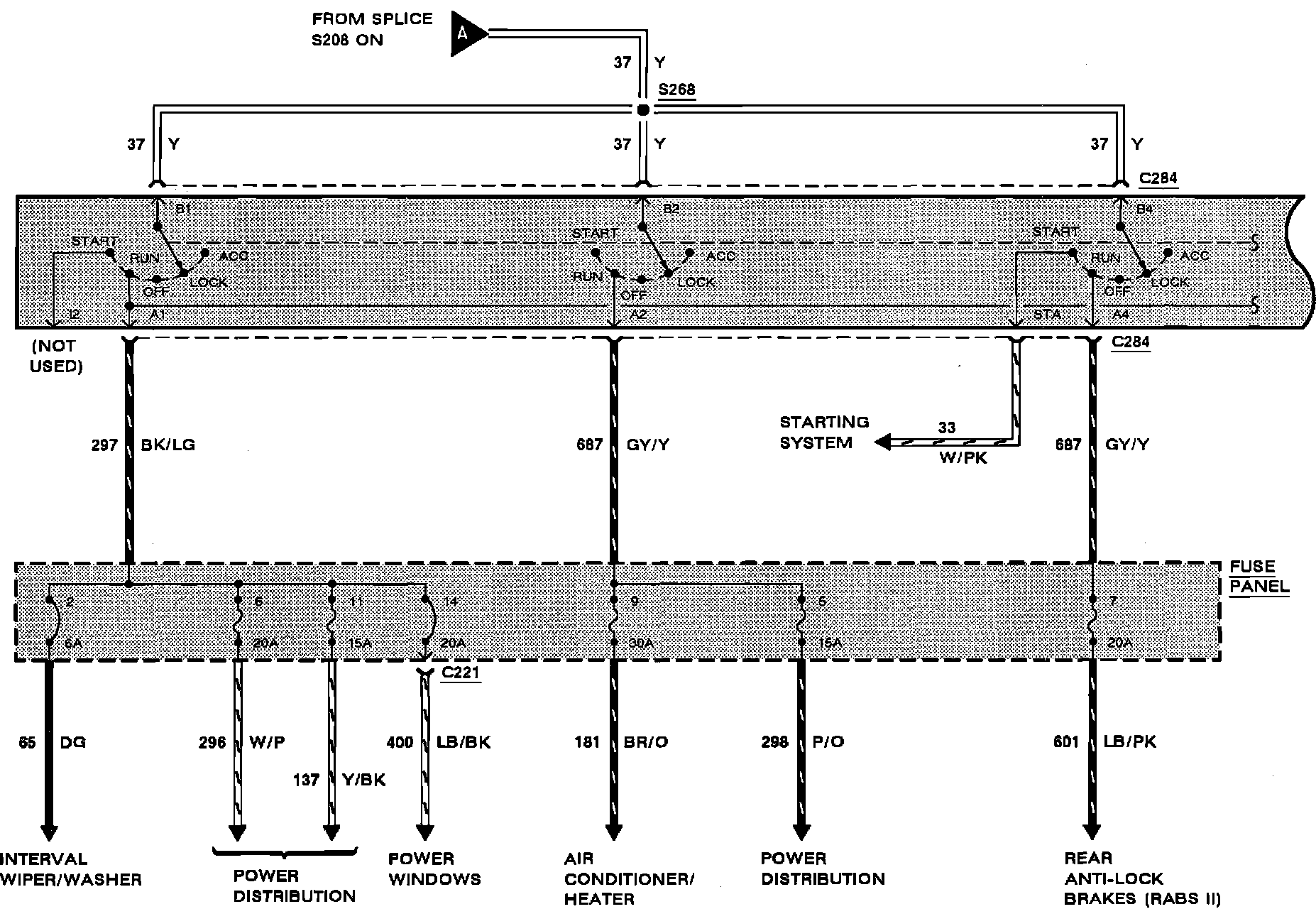

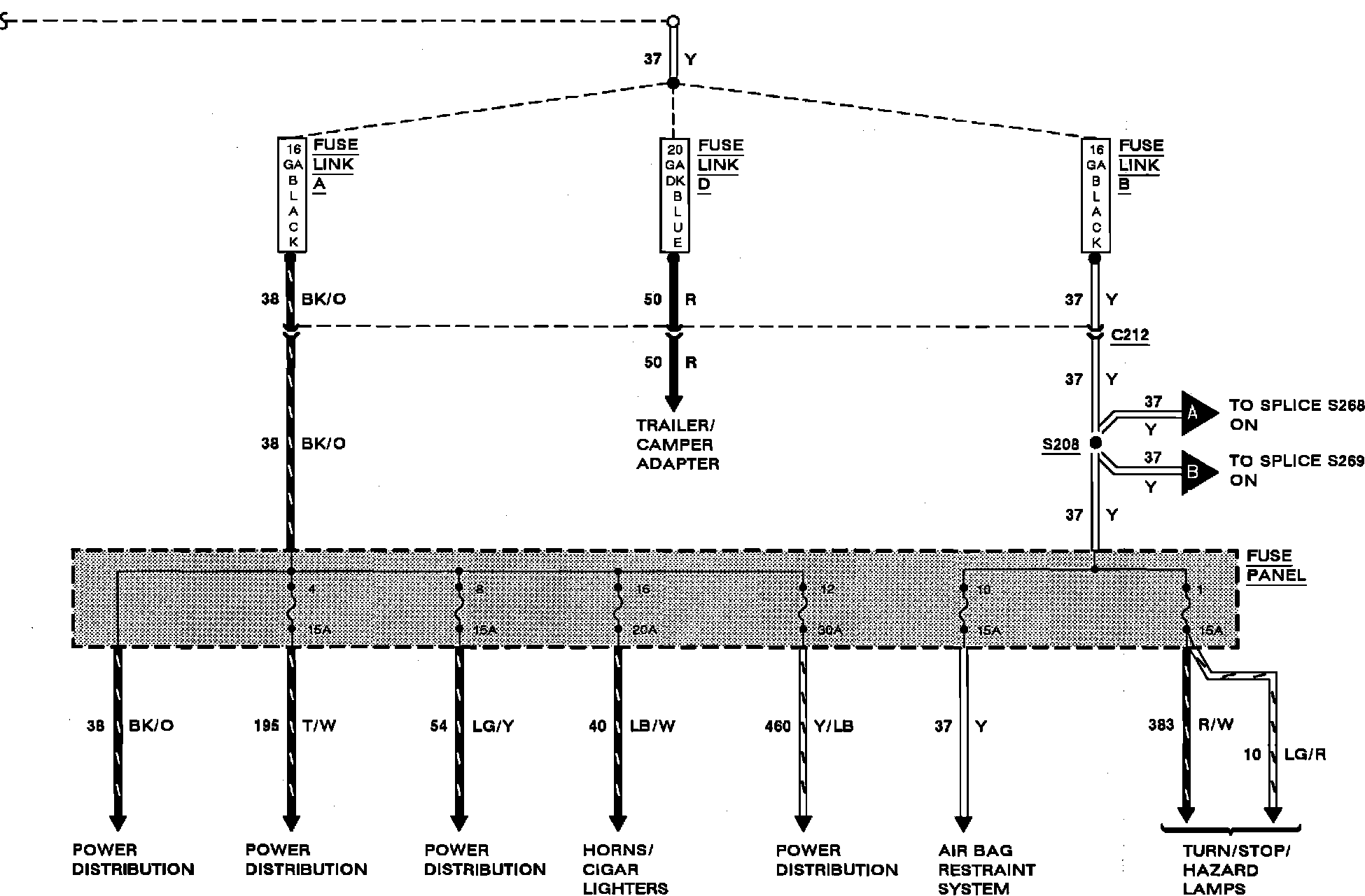

Power Distribution:

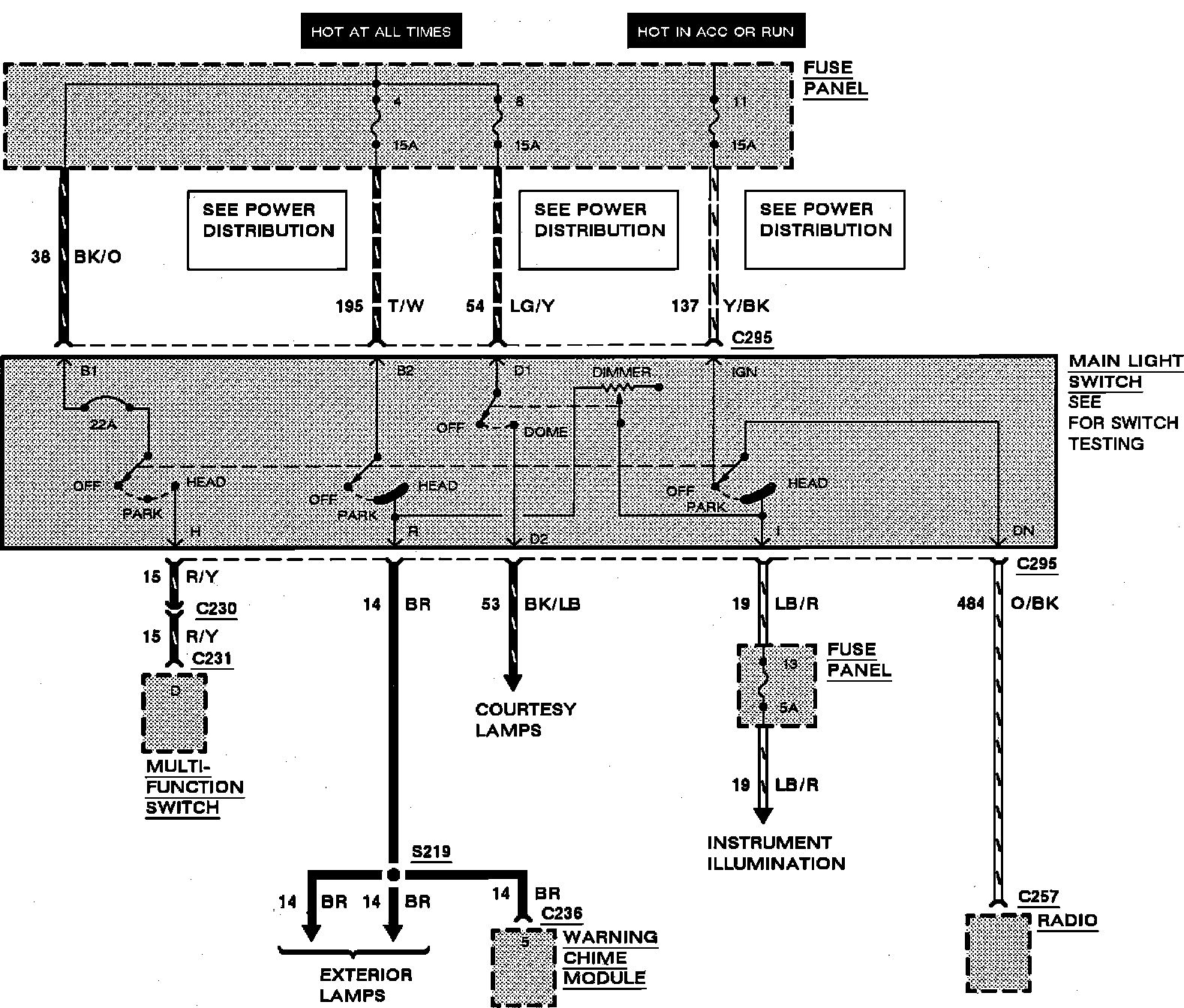

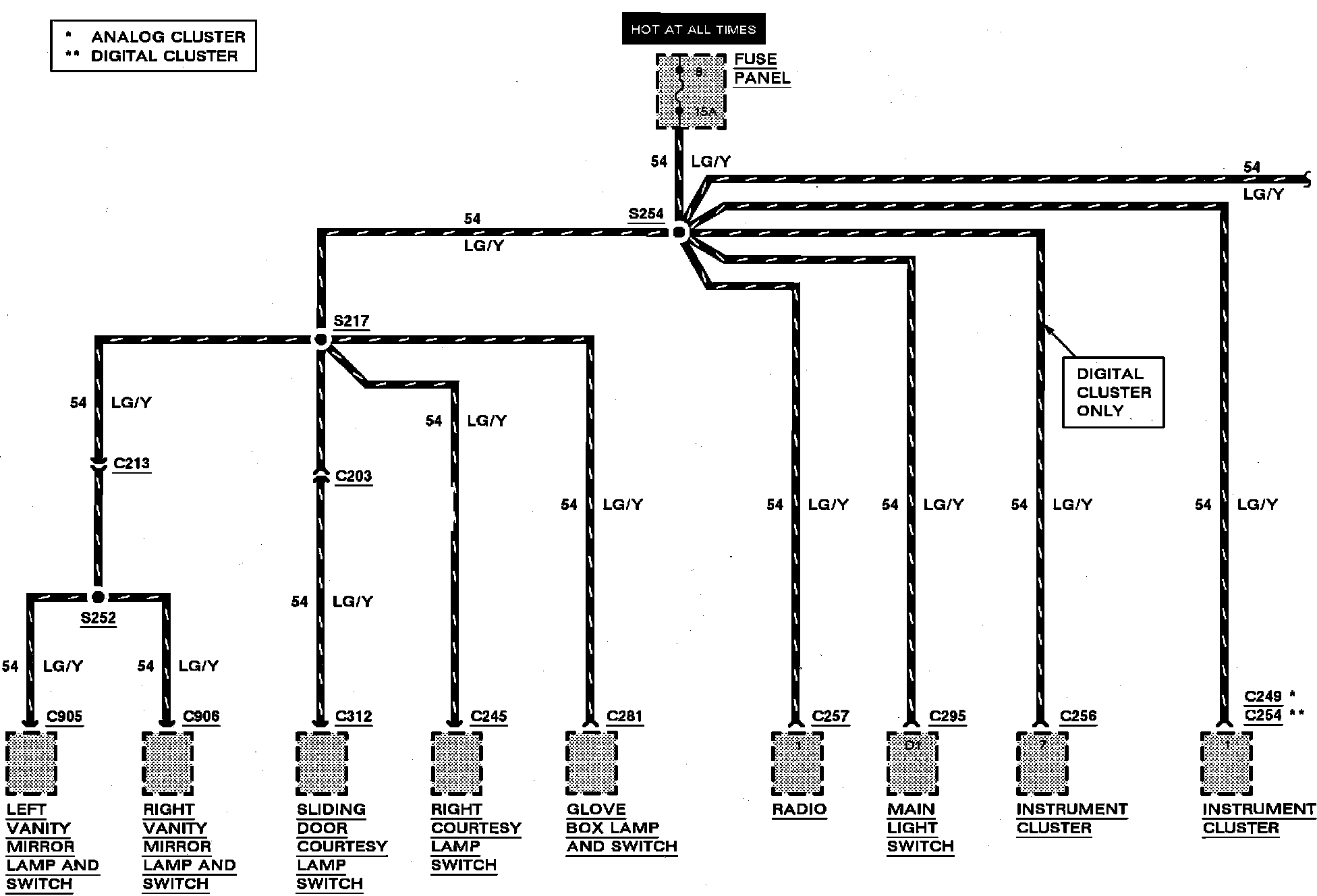

Power Distribution:

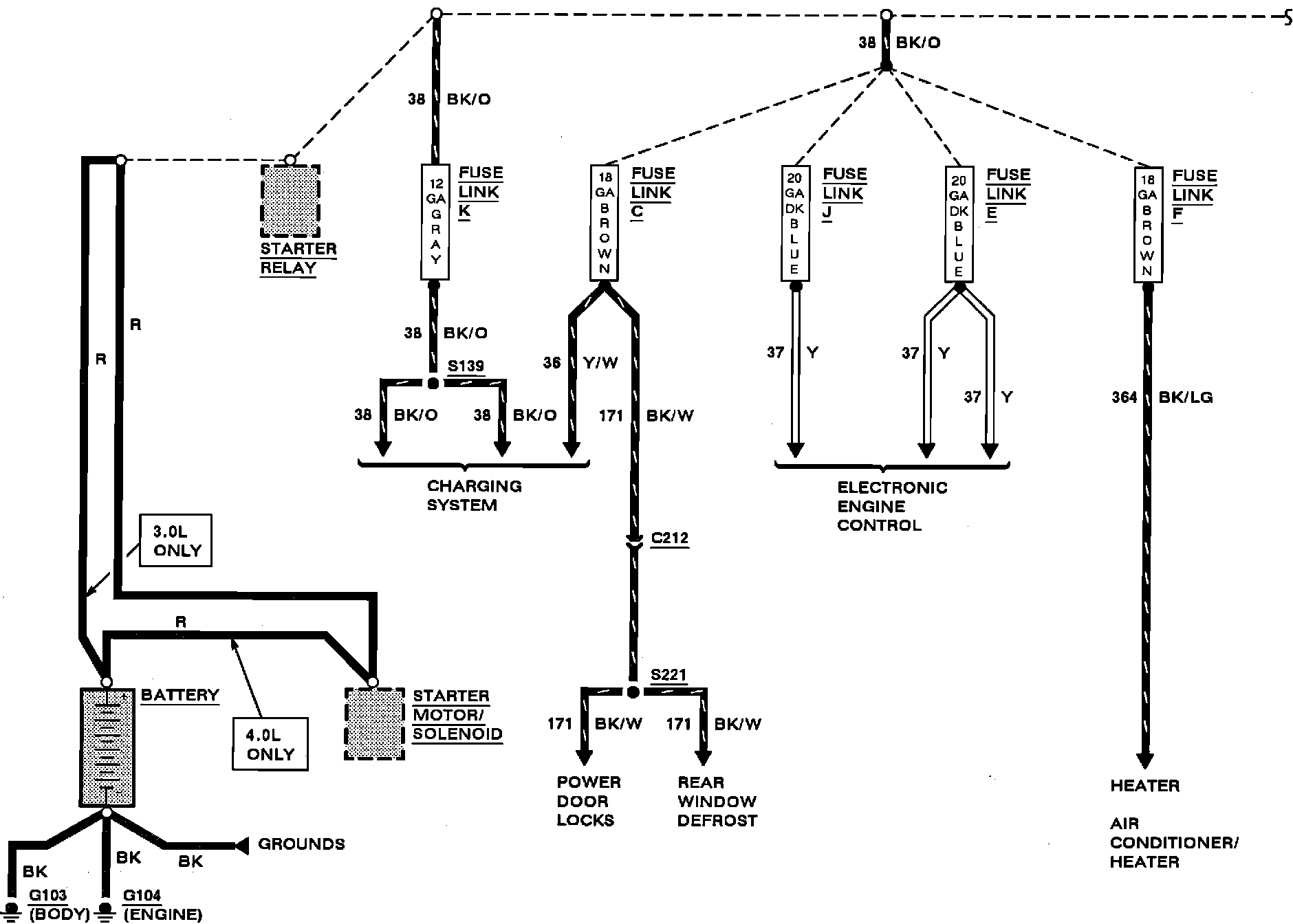

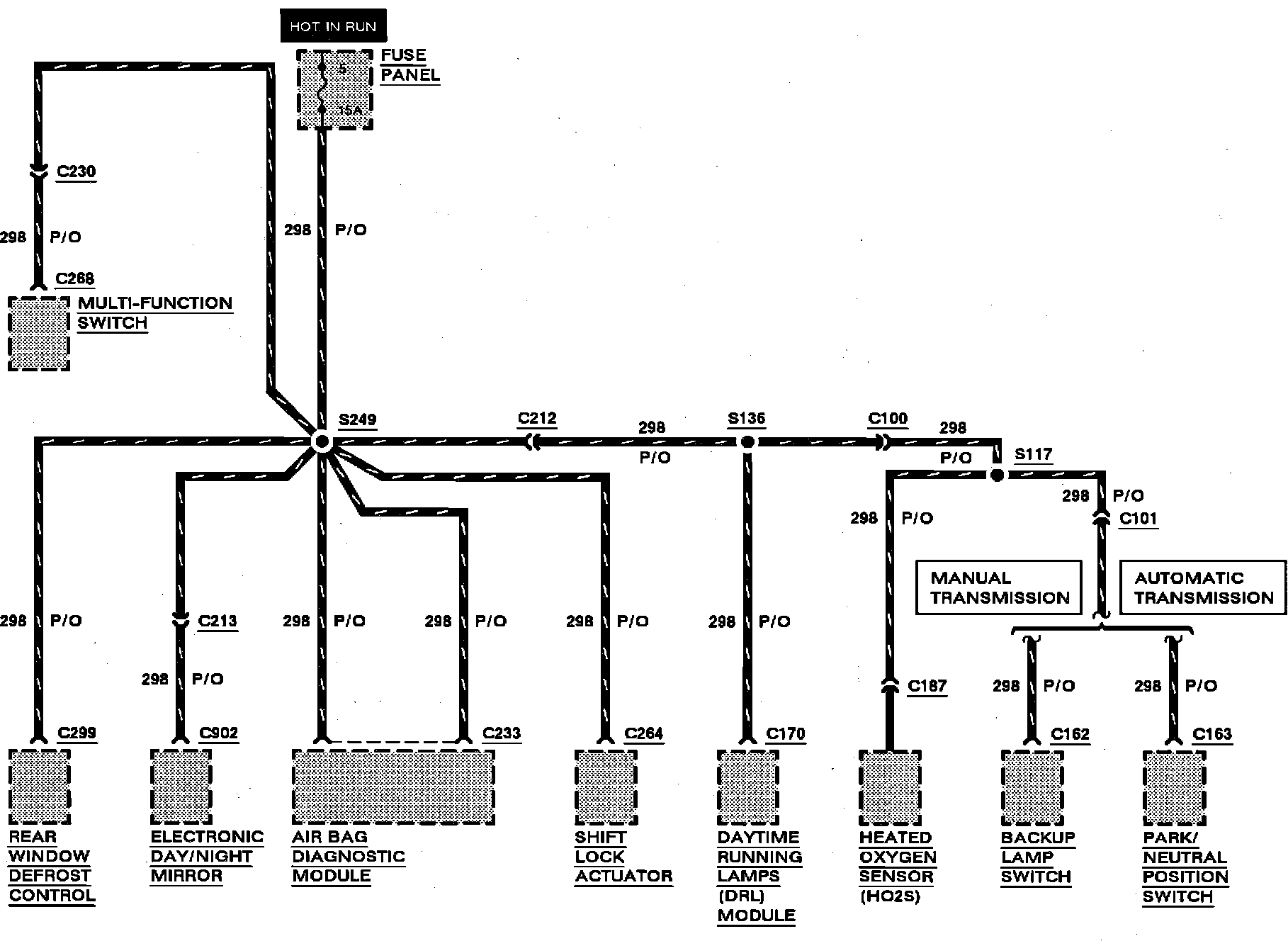

Power Distribution:

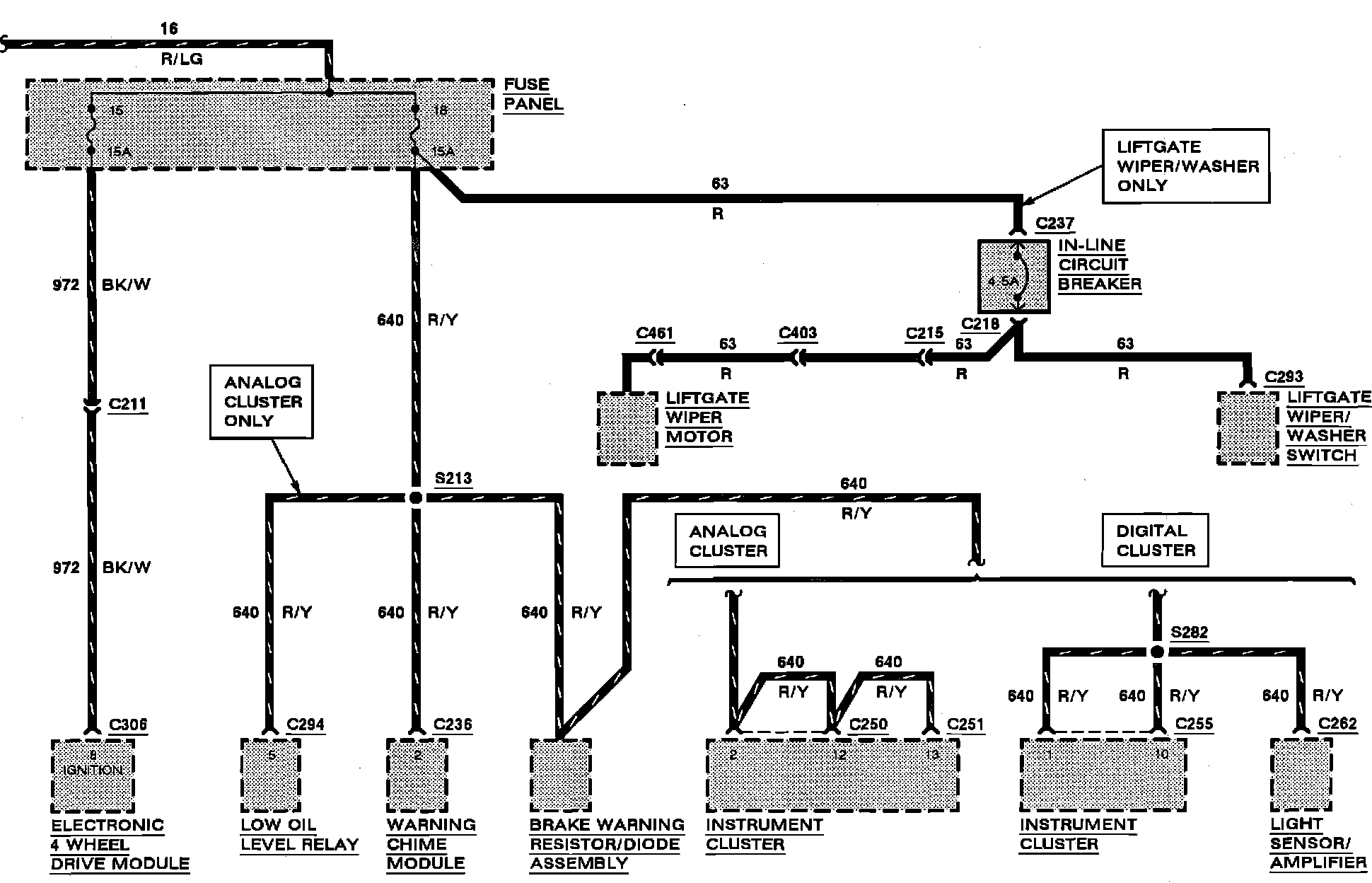

Power Distribution:

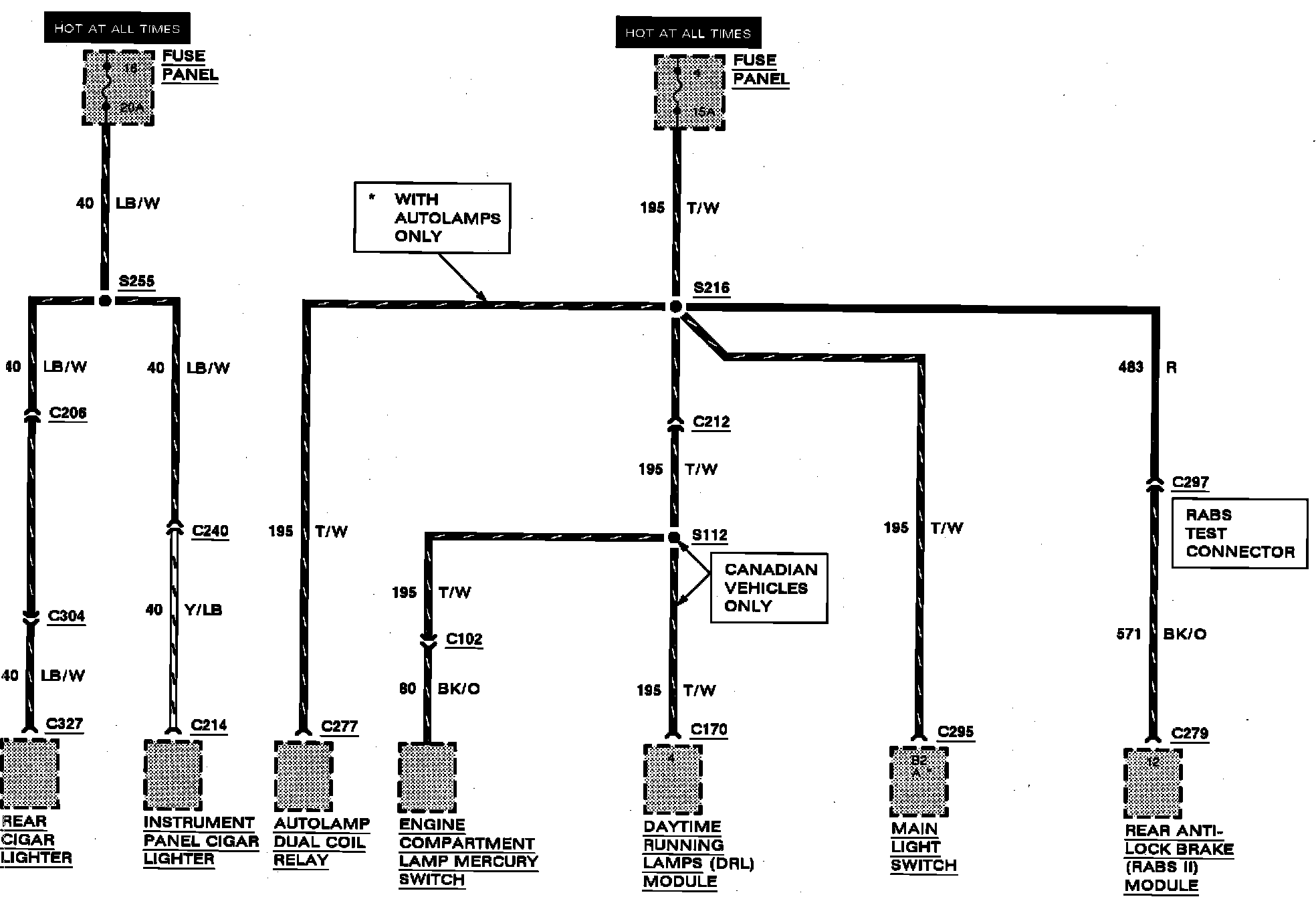

Power Distribution:

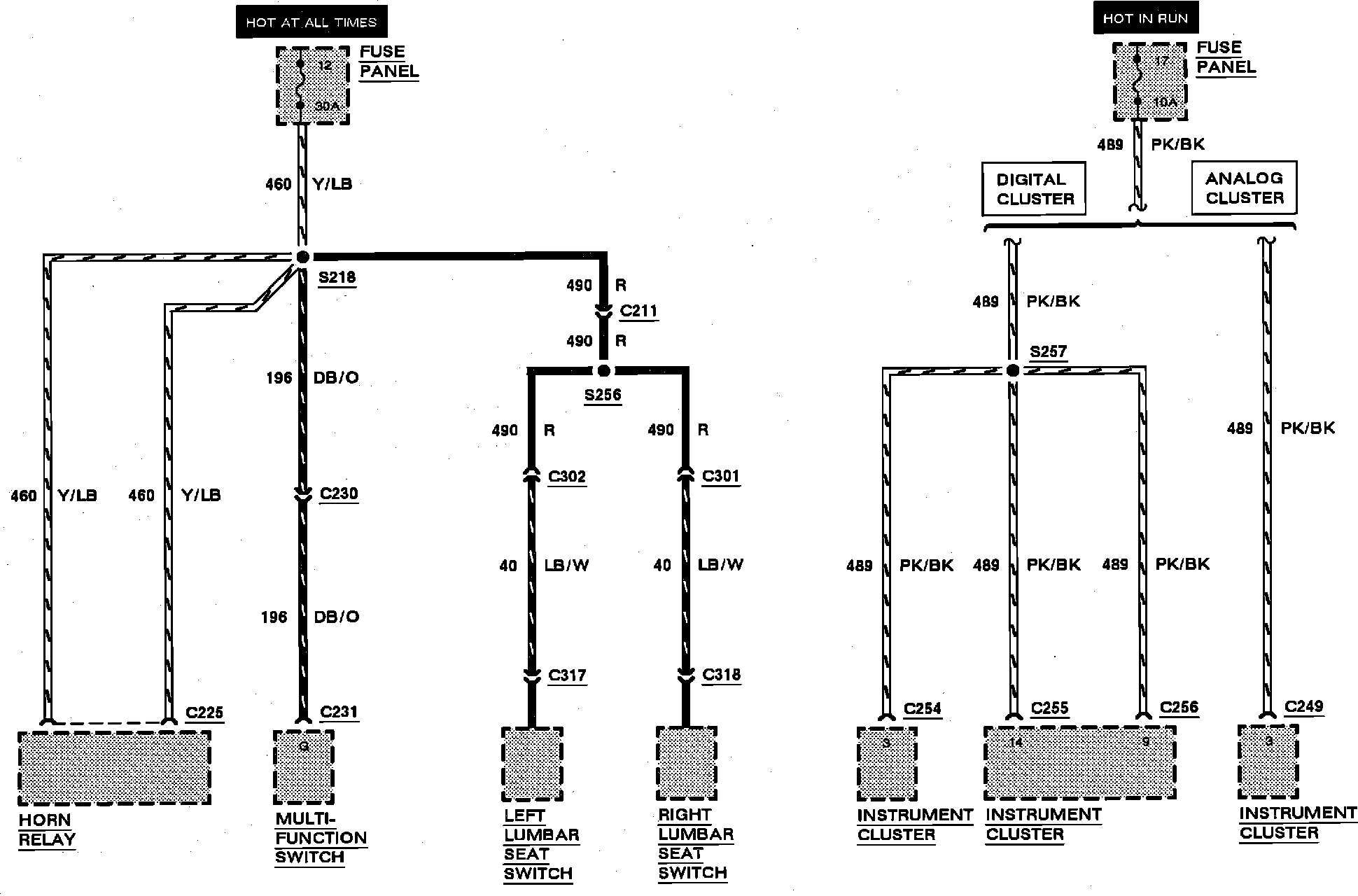

Power Distribution:





Power Distribution:





Power Distribution:





Power Distribution:





Power Distribution:





Power Distribution:





Power Distribution:
