Home >> Ford Truck >> 1993 >> Aerostar AWD V6-245 4.0L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Switch >> Testing and Inspection

Turn Signal Switch: Testing and Inspection

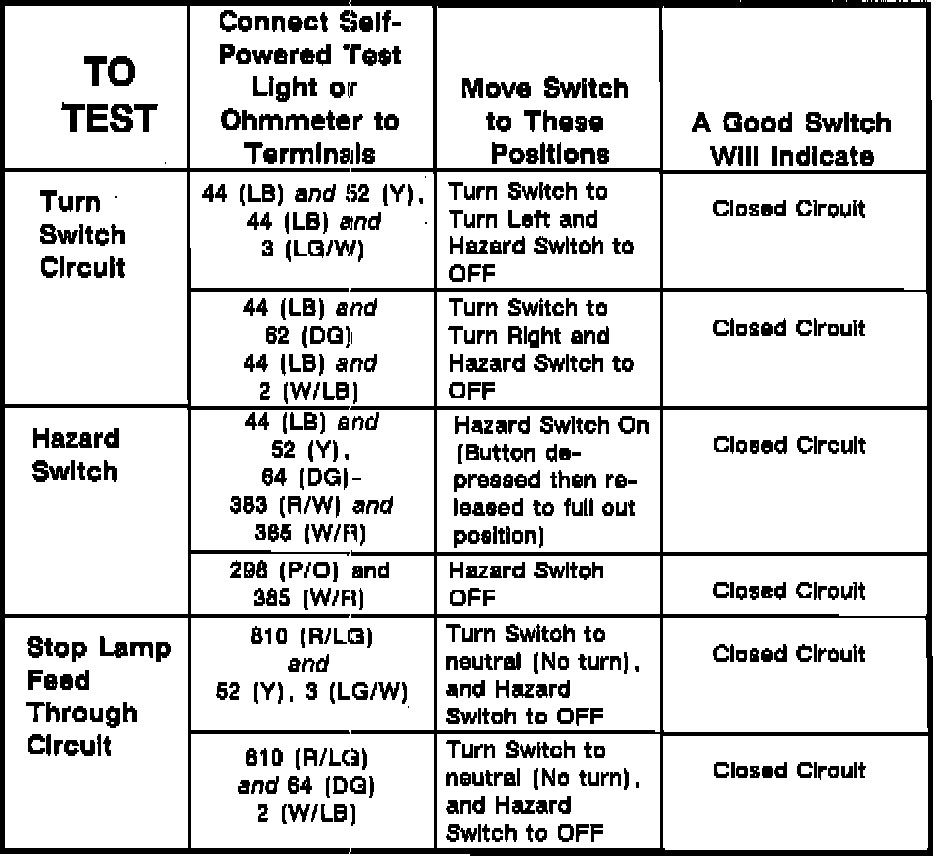

Component Testing Procedure:




Multi-Function Switch, Component Side:

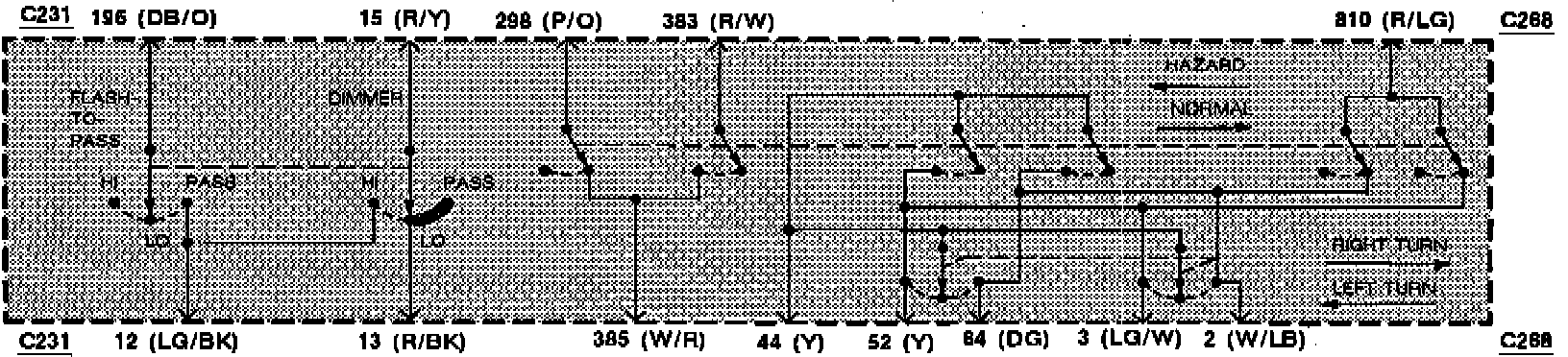

Schematic, Multifunction Switch:
