Auxiliary (Rear)

REMOVAL AND INSTALLATION
1. Remove first seat behind driver.
2. Remove auxiliary heater access cover screws, then the cover.
3. Remove auxiliary unit floor duct screw, then push downward on joint where duct connects to auxiliary unit and rotate to remove floor duct from vehicle.

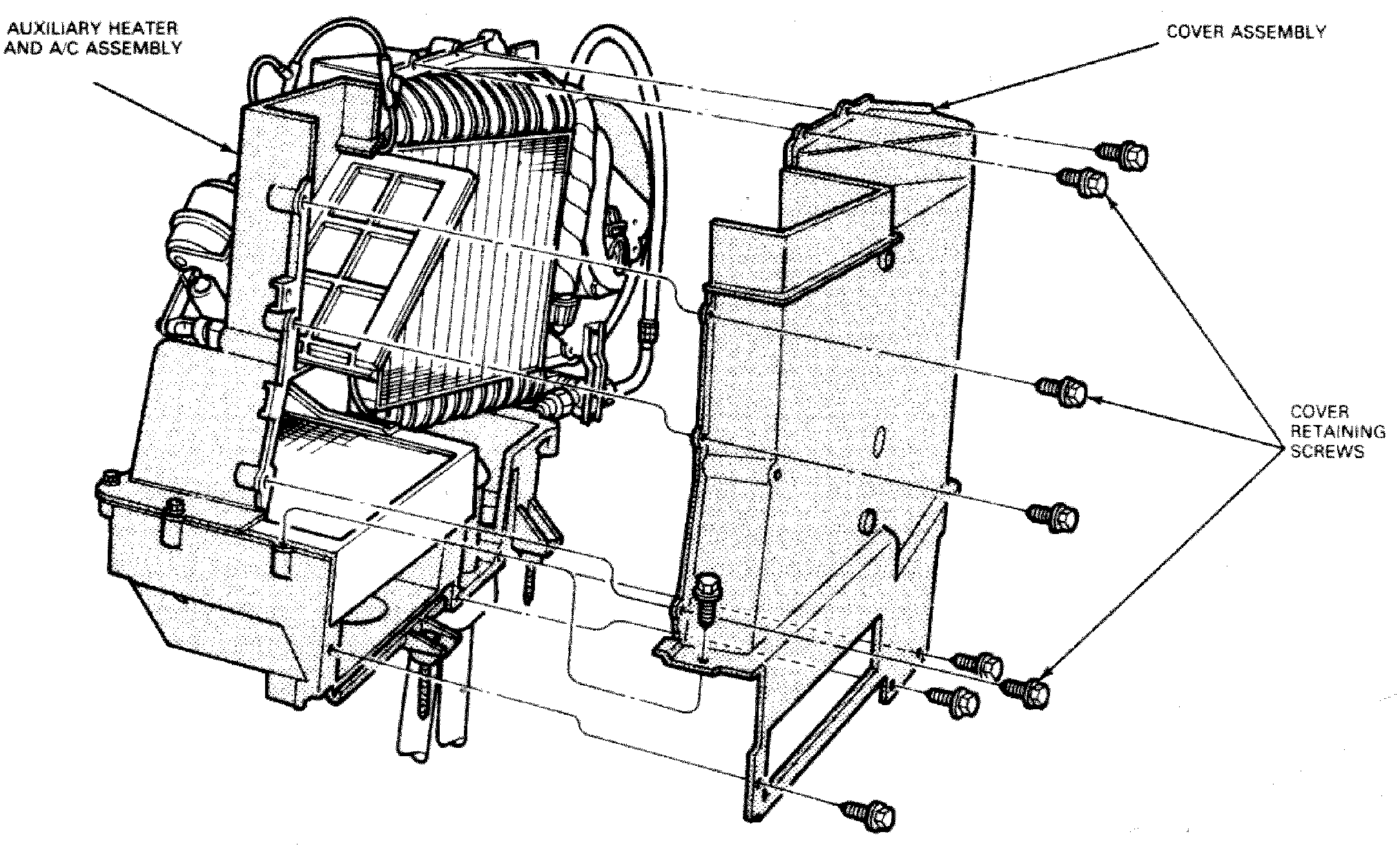

Fig. Rear Heater Cover Replacement:

4. Remove auxiliary heater cover assembly screws, then separate cover from auxiliary heater.
5. Disconnect heater hoses from heater core, then plug hoses and core to prevent spillage of coolant
6. Slide core and seal assembly out through slot in housing.
7. Reverse procedure to install.
