Front Auxiliary

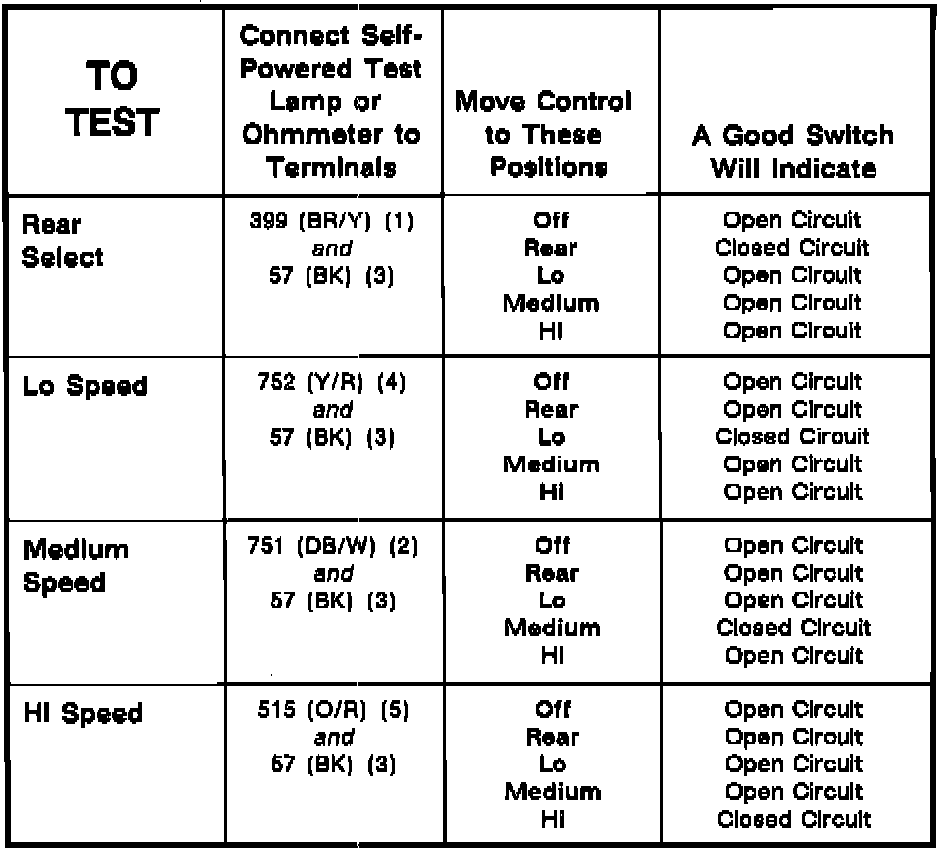

Component Testing Procedure, Front Auxiliary Blower Motor Switch:

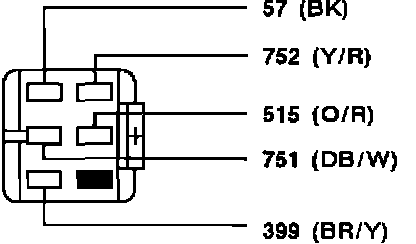

Terminal Locations:

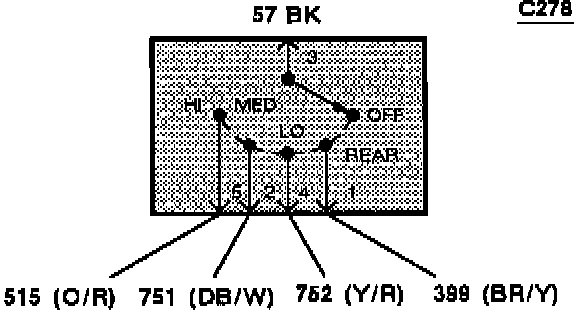

Schematic, Blower Motor Switch, Front Auxiliary:
