Home
>>
Ford Truck
>>
1993
>>
Aerostar AWD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

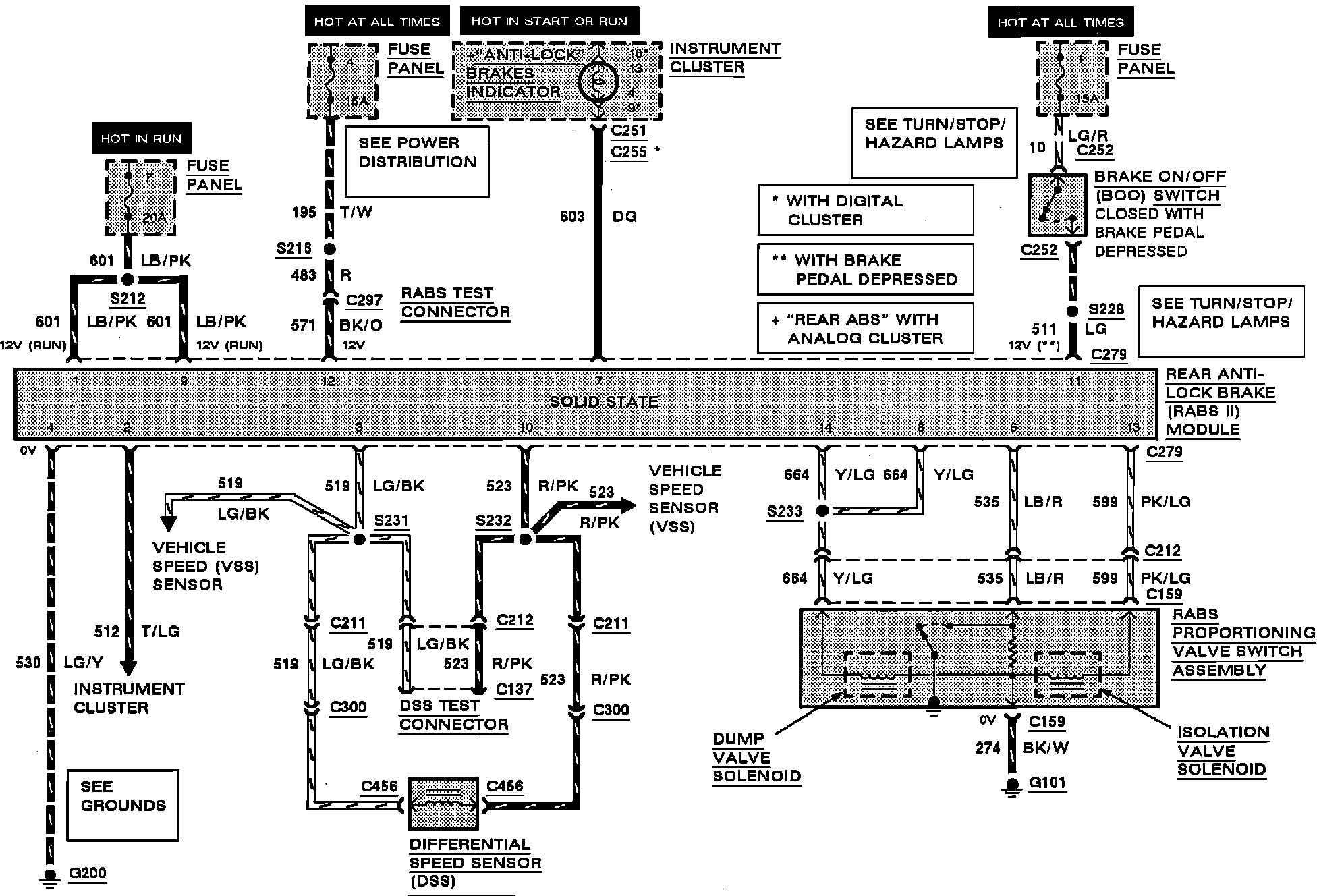

Rear Anti-Lock Brake System (RABS II):
