Ford Truck
>>
1993
>>
Aerostar AWD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

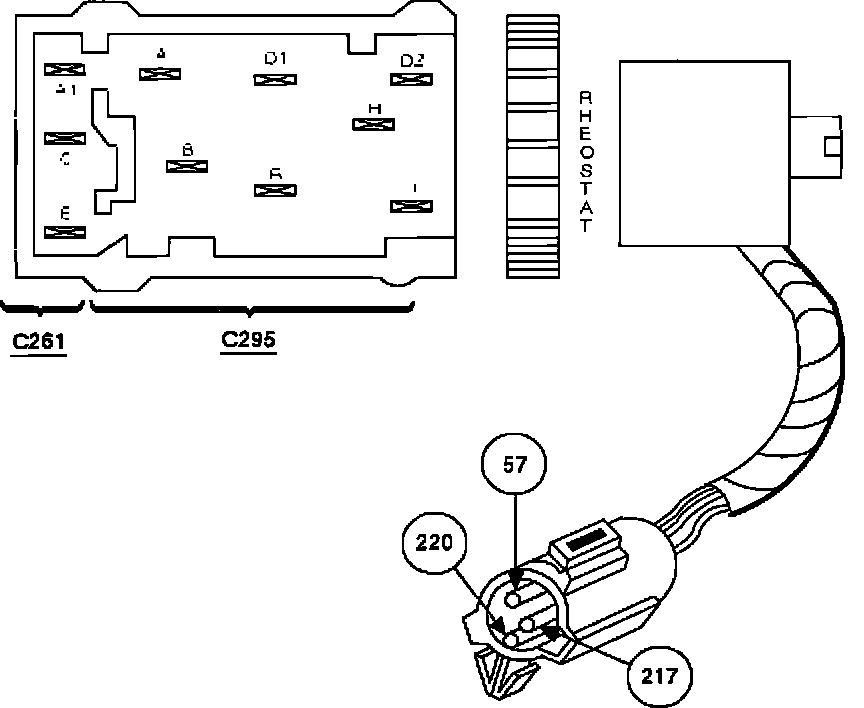

Headlamp Switch
>>
Component Side
>>
With Autolamps
With Autolamps
Terminal Locations:
