Brake Caliper: Description and Operation

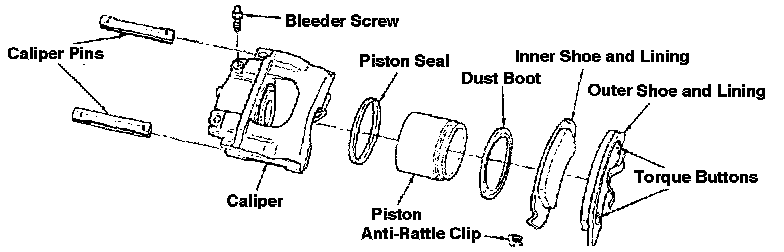

Exploded View Of Pin Sliding Type Caliper System:
These models use a pin sliding caliper type system, Fig. 2, in which the caliper slides on two pins attached to the spindle assembly.
These models use a pin sliding caliper type system, Fig. 2, in which the caliper slides on two pins attached to the spindle assembly.
