Power Locks: Testing and Inspection

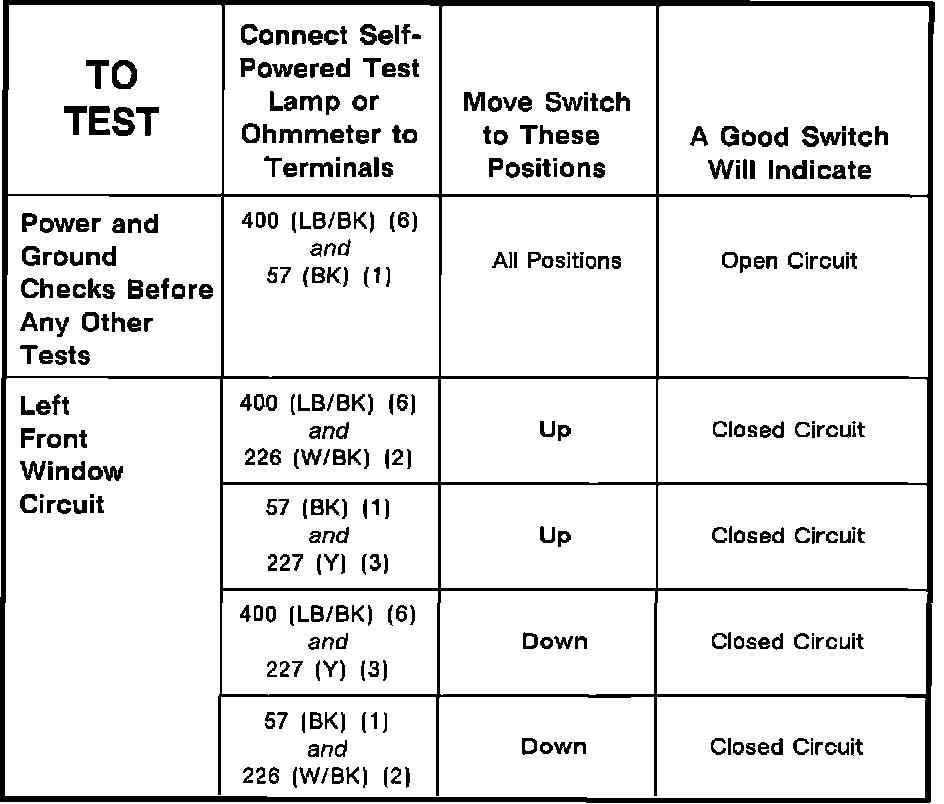

Component Testing Procedure:

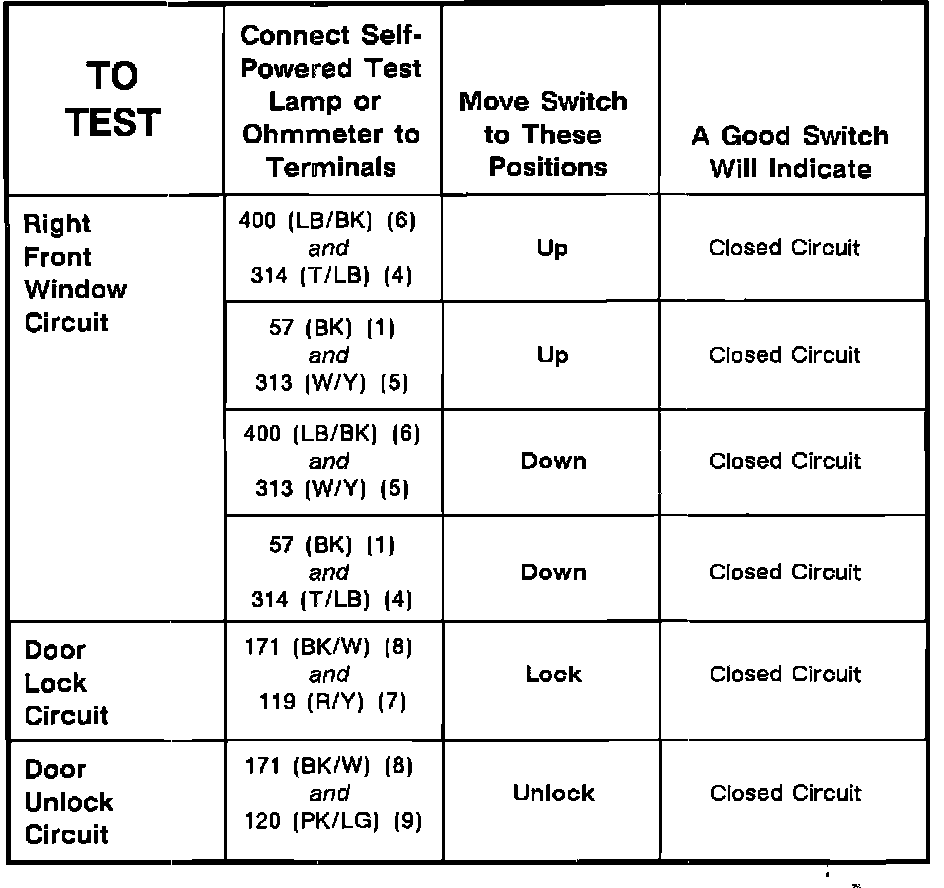

Component Testing Procedure:




Master Window/Door Lock Switch - Terminal Locations:

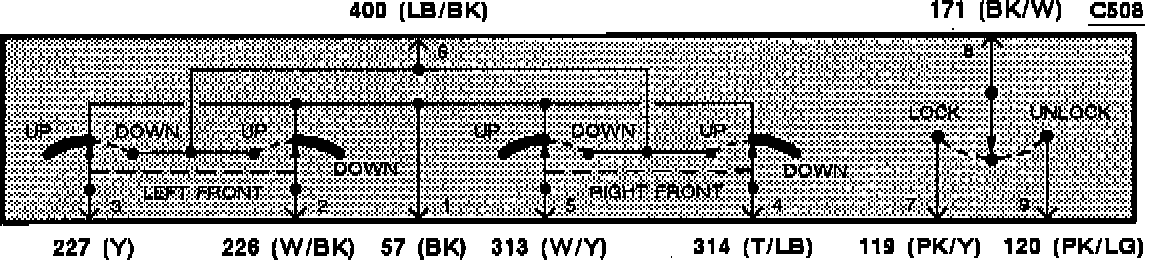

Schematic, Power Window Switch:
