Floor Console

Removal

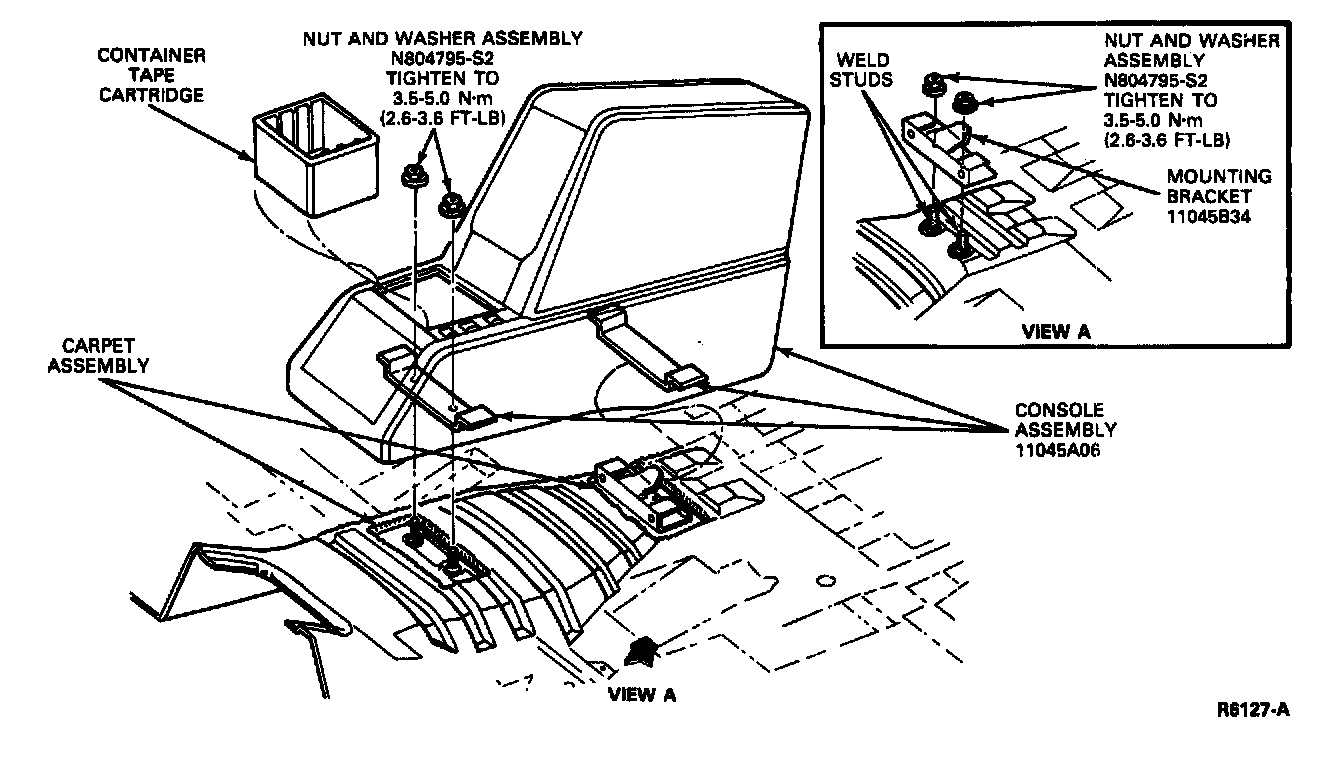

1. Open cassette door and remove tape cartridge container.
2. Remove two nut and washer assemblies from container opening.
3. Lift console assembly up over the two weld screws. Then move console rearward approximately two inches, and lift up on console assembly.

Installation
1. Place console assembly rearward of rear bracket approximately two inches. Push console forward and at the same time lift front of console and place over two weld screws.
2. Install two nut and washer assemblies onto weld screws retaining console in place.
3. Install tape cartridge container.
