Neutral Safety Switch: Testing and Inspection

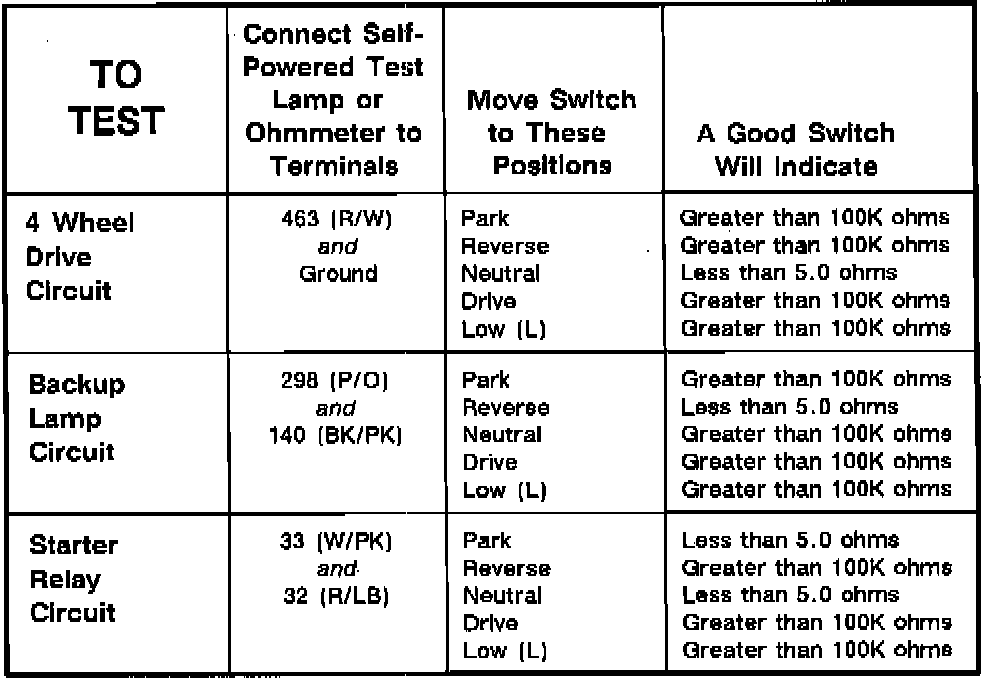

Component Testing Procedure:
Park/Neutral Position Switch:

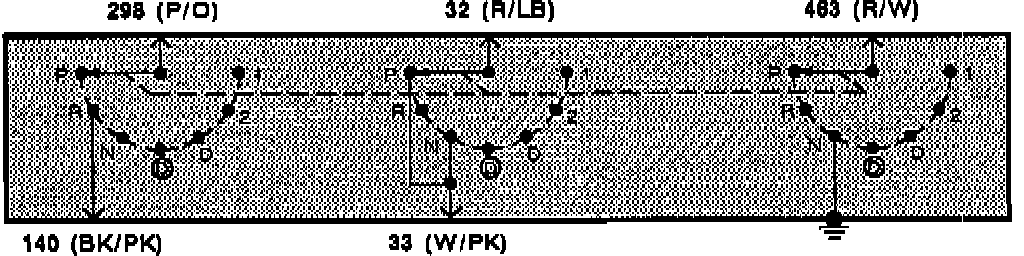

Schematic, Neutral Safety Switch:
