Full Body Views

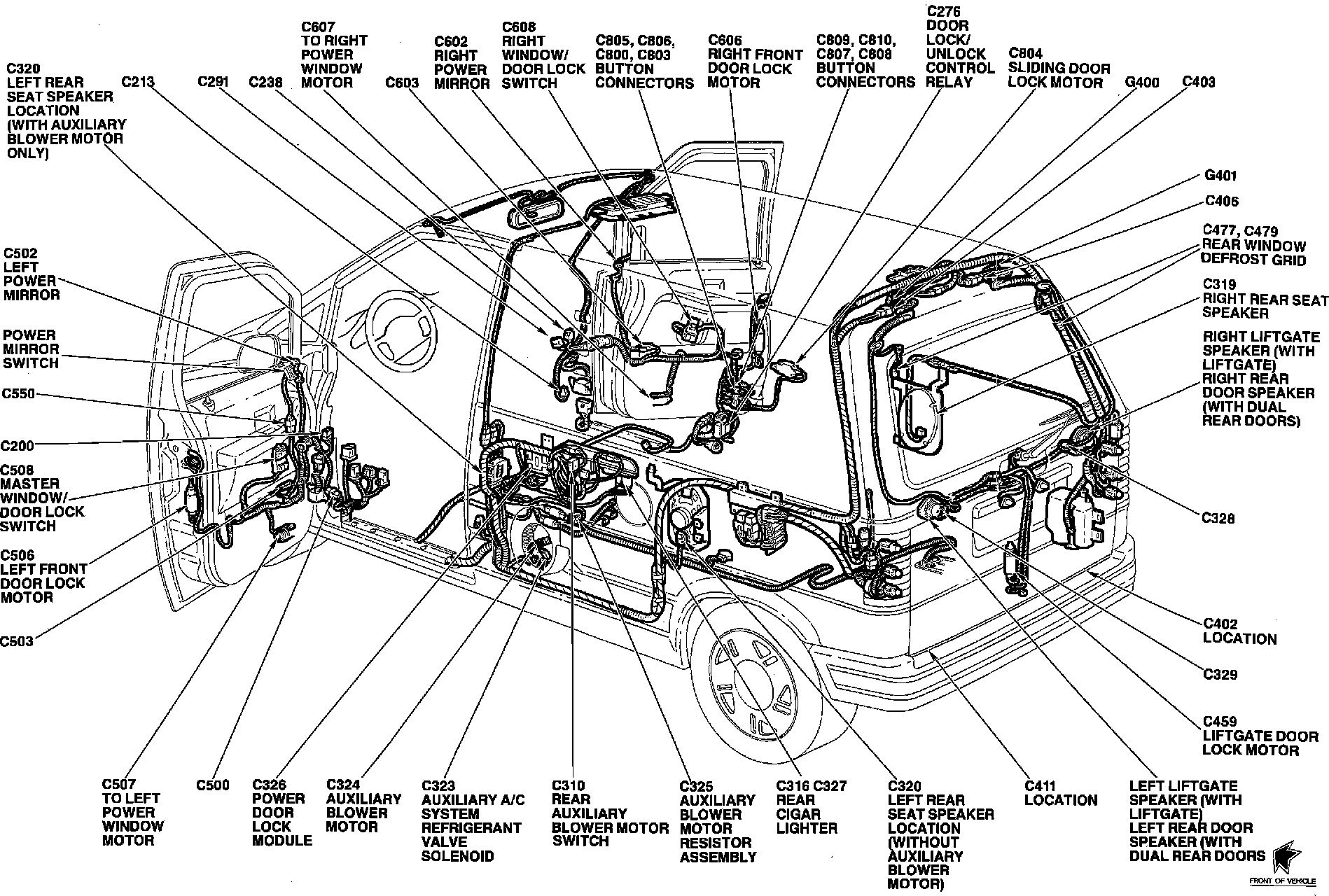

Component Locations:

AUXILIARY A/C SYSTEM REFRIGERANT VALVE SOLENOID
AUXILIARY BLOWER MOTOR
AUXILIARY BLOWER MOTOR RESISTOR ASSEMBLY
AUXILIARY BLOWER MOTOR SWITCH
DOOR LOCK/UNLOCK CONTROL RELAY
LEFT FRONT DOOR LOCK MOTOR
LEFT LIFTGATE SPEAKER (WITH LIFTGATE)
LEFT POWER MIRROR
LEFT POWER WINDOW MOTOR
LEFT REAR DOOR SPEAKER (WITH DUAL REAR DOORS)
LEFT REAR SEAT SPEAKER LOCATION (WITH AUXILIARY BLOWER MOTOR ONLY)
LEFT REAR SEAT SPEAKER LOCATION (WITHOUT AUXILIARY BLOWER MOTOR)
LIFTGATE DOOR LOCK MOTOR
MASTER WINDOW/DOOR LOCK SWITCH
POWER DOOR LOCK MODULE
POWER MIRROR SWITCH
REAR CIGAR LIGHTER
REAR WINDOW DEFROST GRID
RIGHT FRONT DOOR LOCK MOTOR
RIGHT LIFTGATE SPEAKER (WITH LIFT GATE)
RIGHT POWER MIRROR
RIGHT POWER WINDOW MOTOR
RIGHT REAR DOOR SPEAKER (WITH DUEL REAR DOORS)
RIGHT REAR SEAT SPEAKER
RIGHT WINDOW/DOOR LOCK SWITCH
SLIDING DOOR LOCK MOTOR

Component Locations:

AIR BAG/SAFING SENSOR
DIFFERENTIAL SPEED SENSOR (DSS)
DRIVER'S AIR BAG LOCATION
FRONT AXLE SPEED SENSOR
FUEL PUMP/FUEL GAUGE SENDER
HEADPHONE JUMPER (WITHOUT REMOTE HEADPHONES)
HORN SWITCH
LEFT DOOR HANDLE SWITCH
LEFT FRONT DOOR AJAR SWITCH
LEFT LUMBAR SEAT PUMP MOTOR
LEFT LUMBAR SEAT SWITCH
LIFTGATE AJAR SWITCH
LIFTGATE WASHER PUMP MOTOR
LIFTGATE WIPER MOTOR
PARK BRAKE SWITCH
REAR AXLE SPEED SENSOR
REAR DOOR LATCH SWITCH
REMOTE HEADPHONE MODULE
RH KICK PANEL CRASH SENSOR
RIGHT DOOR HANDLE SWITCH
RIGHT FRONT DOOR AJAR SWITCH
RIGHT LUMBAR SEAT PUMP MOTOR
RIGHT LUMBAR SEAT SWITCH
RIGHT REAR DOOR AJAR SWITCH
SEAT BELT BUCKLE SWITCH
SPEED CONTROL SWITCH

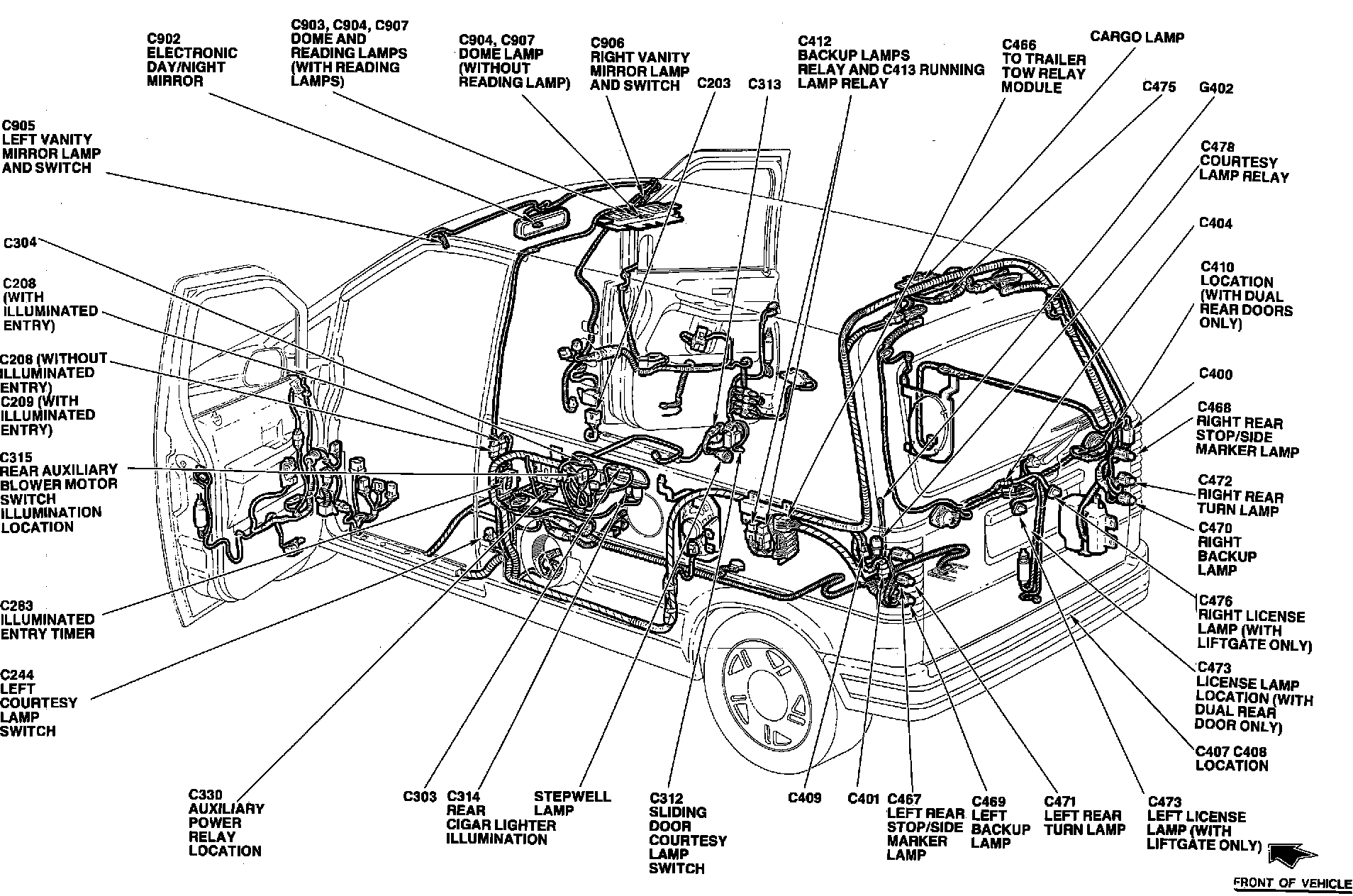

Component Locations:

AUXILIARY POWER RELAY LOCATION
BACKUP LAMPS RELAY
CARGO LAMP
COURTESY LAMP RELAY
DOME AND READING LAMPS (WITH READING LAMPS)
DOME LAMP (WITHOUT READING LAMP)
ELECTRONIC DAY/NIGHT MIRROR
ILLUMINATED ENTRY TIMER
LEFT BACKUP LAMP
LEFT COURTESY LAMP SWITCH
LEFT LICENSE LAMP (WITH LIFTGATE ONLY)
LEFT REAR STOP/SIDE MARKER LAMP
LEFT REAR TURN LAMP
LEFT VANITY MIRROR LAMP AND SWITCH
LICENSE LAMP LOCATION (WITH DUAL REAR DOOR ONLY)
REAR AUXILIARY BLOWER MOTOR SWITCH ILLUMINATION
REAR CIGAR LIGHTER ILLUMINATION
RIGHT BACKUP LAMP
RIGHT LICENSE LAMP (WITH LIFTGATE ONLY)
RIGHT REAR STOP/SIDE MARKER LAMP
RIGHT REAR TURN LAMP
RIGHT VANITY MIRROR LAMP AND SWITCH
RUNNING LAMP RELAY
SLIDING DOOR COURTESY LAMP SWITCH
STEP WELL LAMP
TRAILER TOW RELAY MODULE
