Rear

REMOVAL AND INSTALLATION
1. Disconnect battery ground cable.

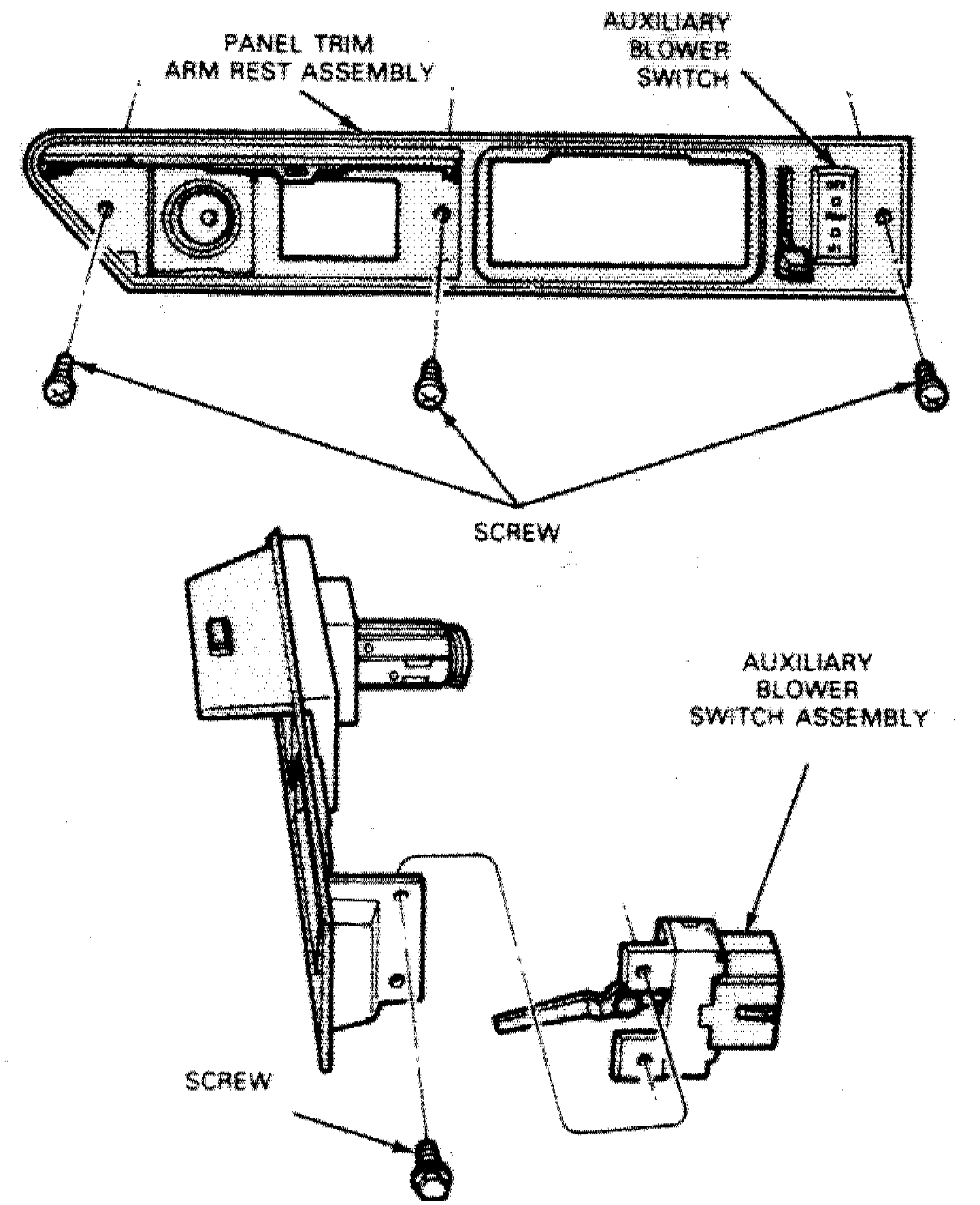

Fig. 9 Rear Blower Switch:

2. Using small screwdriver, gently pry knob from blower switch.
3. Remove ashtray bezel screws, then the bezel.
4. Disconnect wire harness electrical connector from blower switch.
5. Remove blower switch screws, then the blower switch.
6. Reverse procedure to install.
