Block Diagrams

*** Updated by TSB# 9313B19, Dated May, 1993
TSB# 9405B52, Dated March, 1994

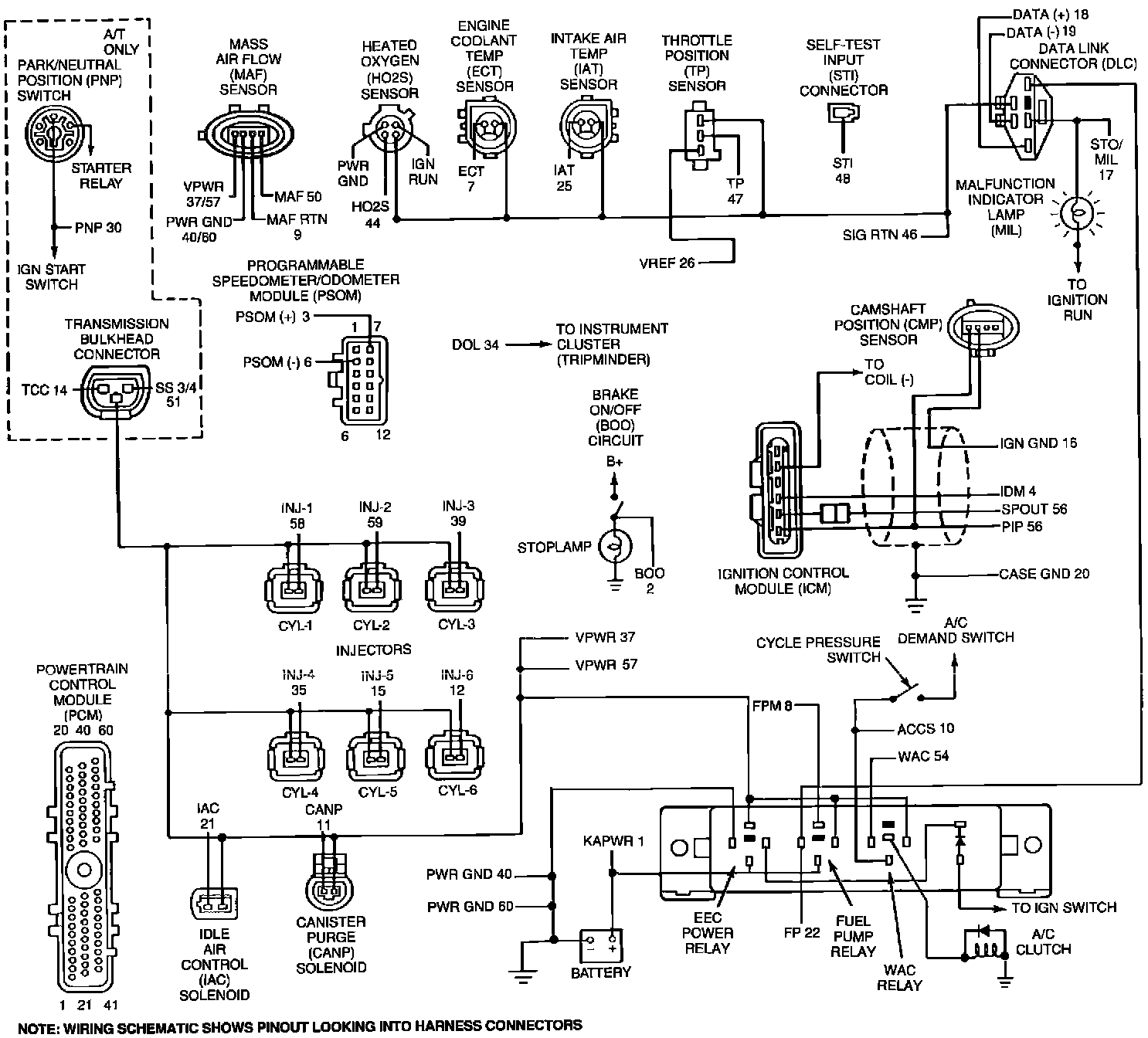

EEC-IV Wiring Schematic:
