Test 2 - DIS Module, Harness & Coil
>>
Steps 29 Through 35
Steps 29 Through 35

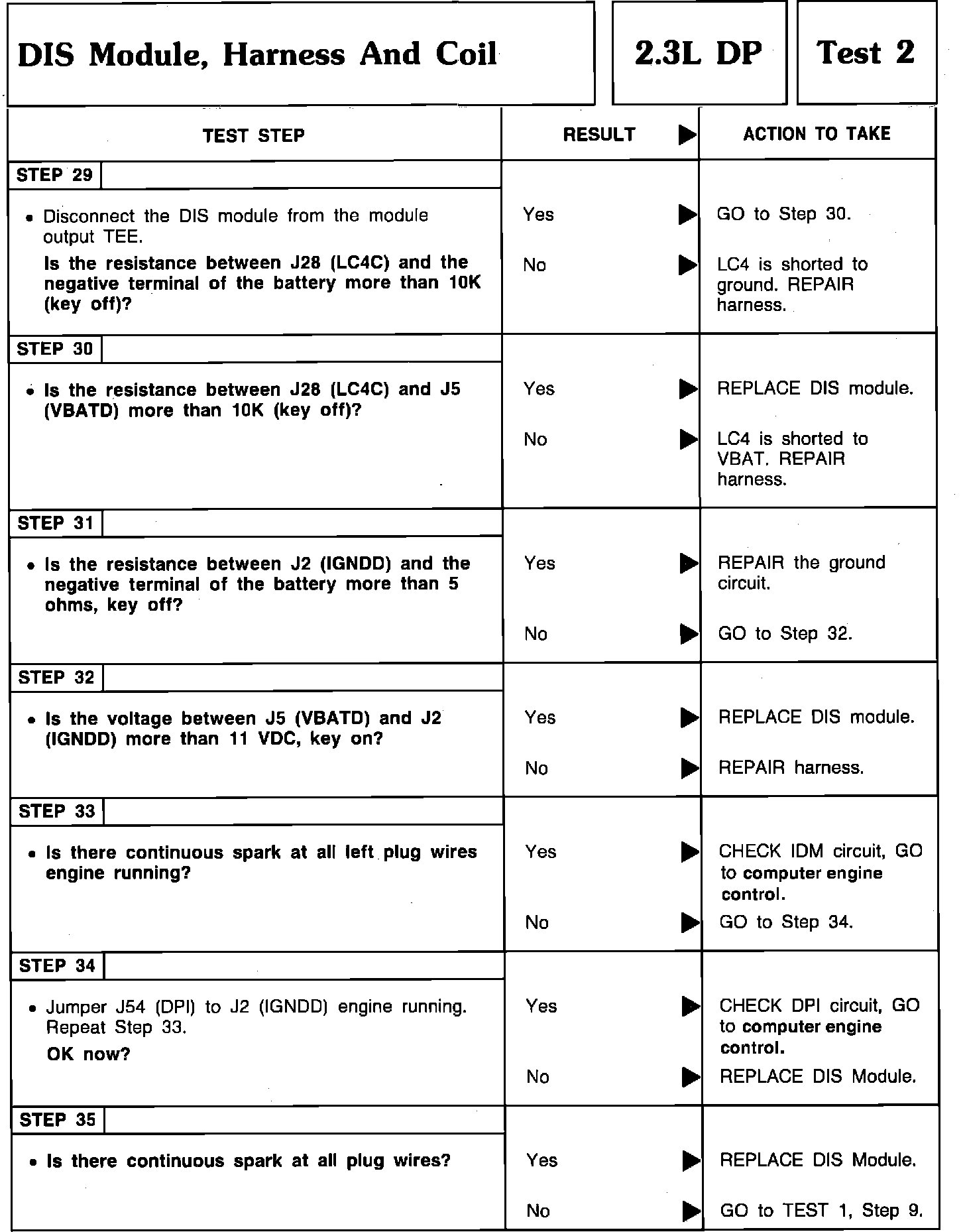

DIS Module, Harness & Coil Steps 29 thru 35:
