Electrical Diagrams

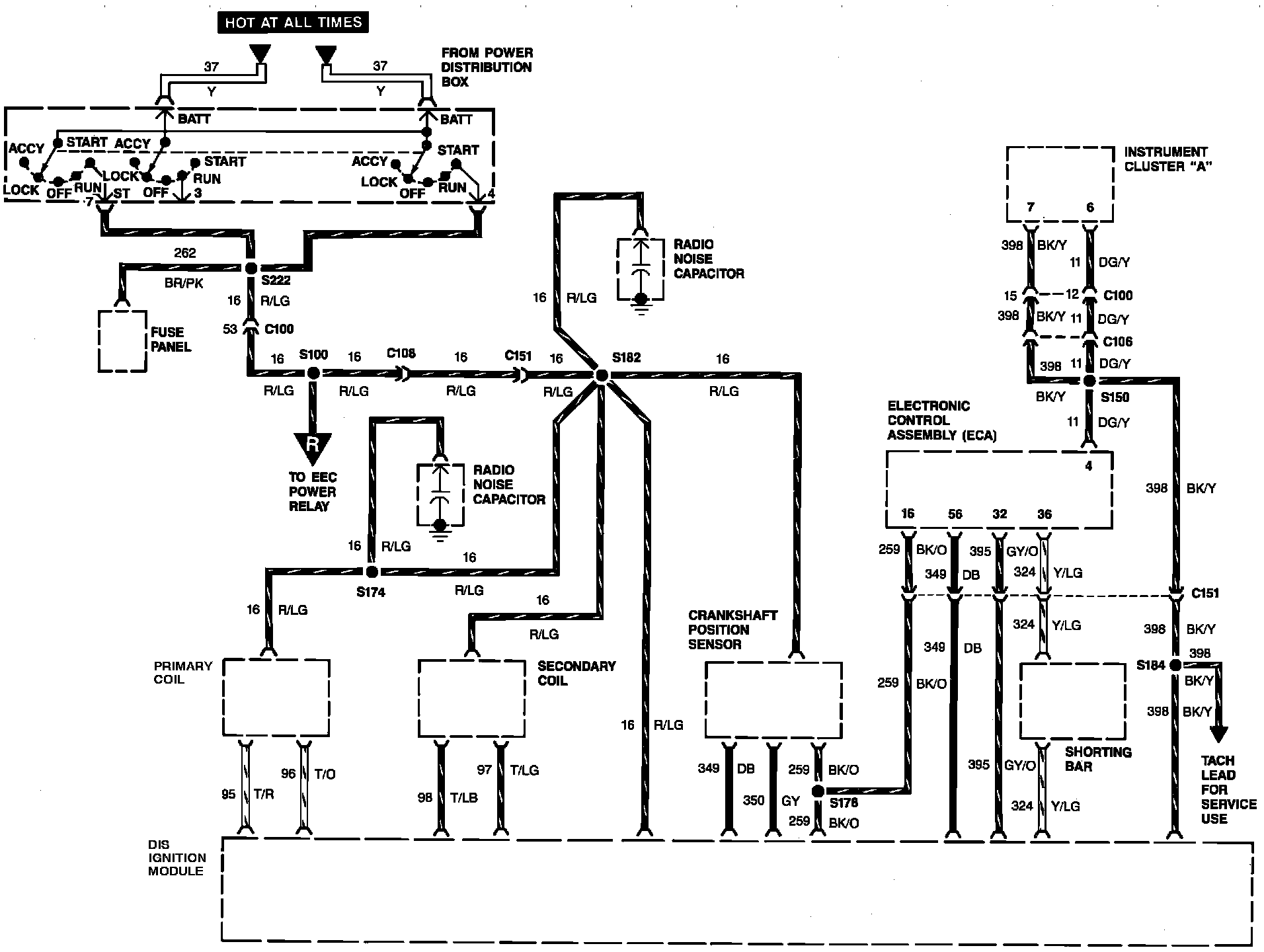

Ignition System:

Electronic Engine Control:

Circuit 324 Y/LG is the SPOUT signal, the first image shows the shorting bar.
For the remainder of the Computer and Control Systems wiring diagrams, refer to Diagrams
