Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
1989
>>
Ranger 4WD L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
Engine Controls

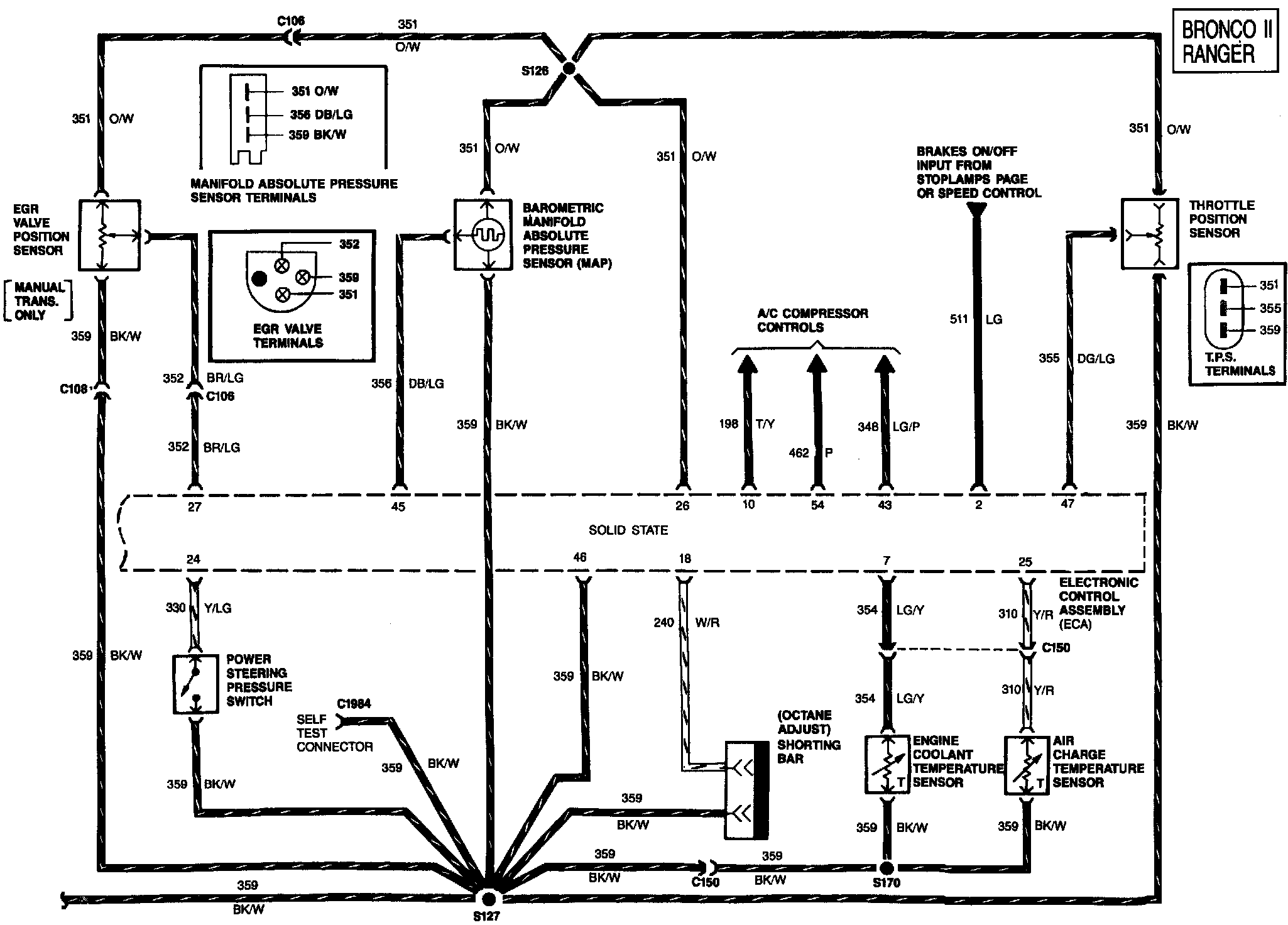

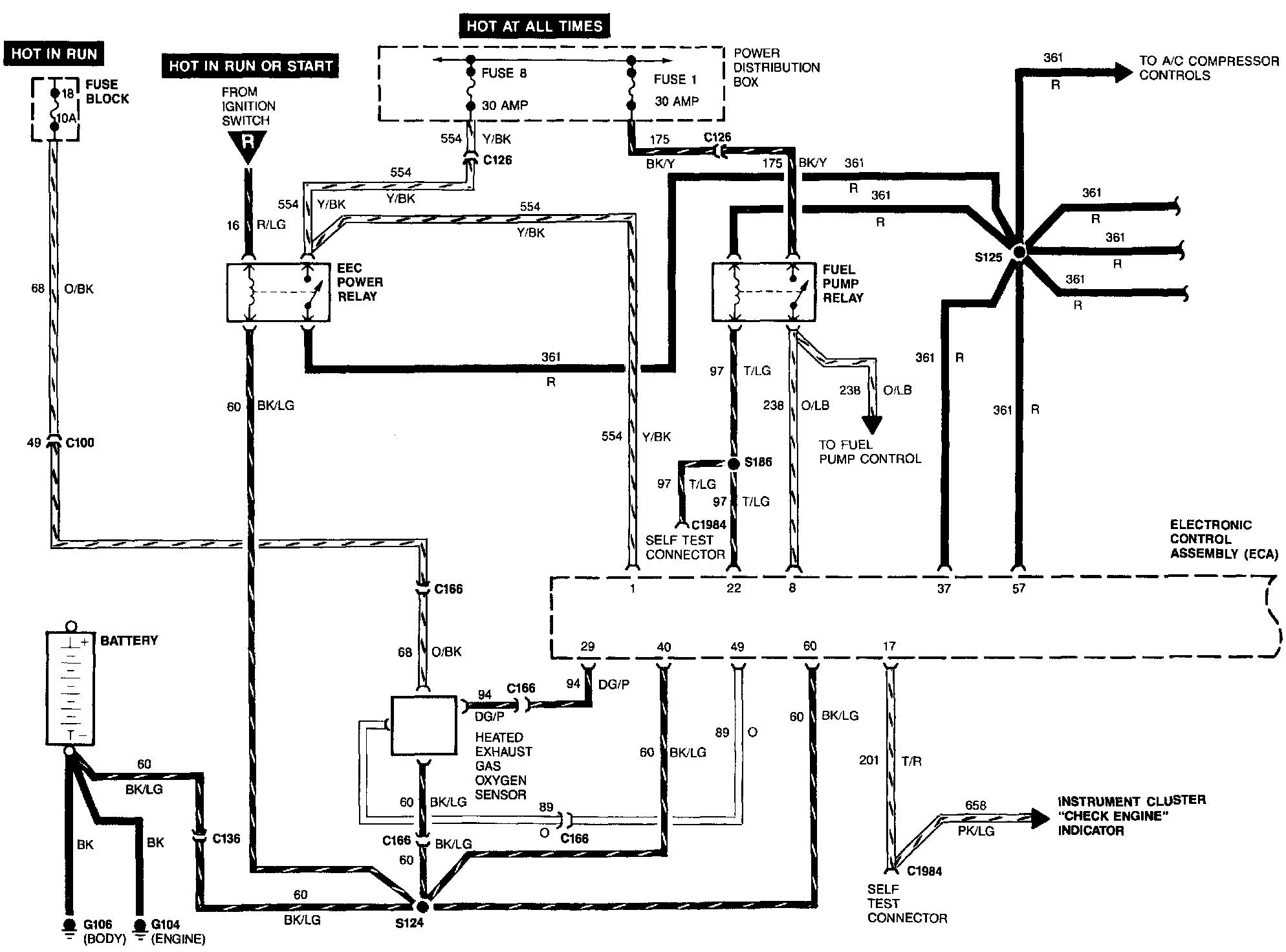

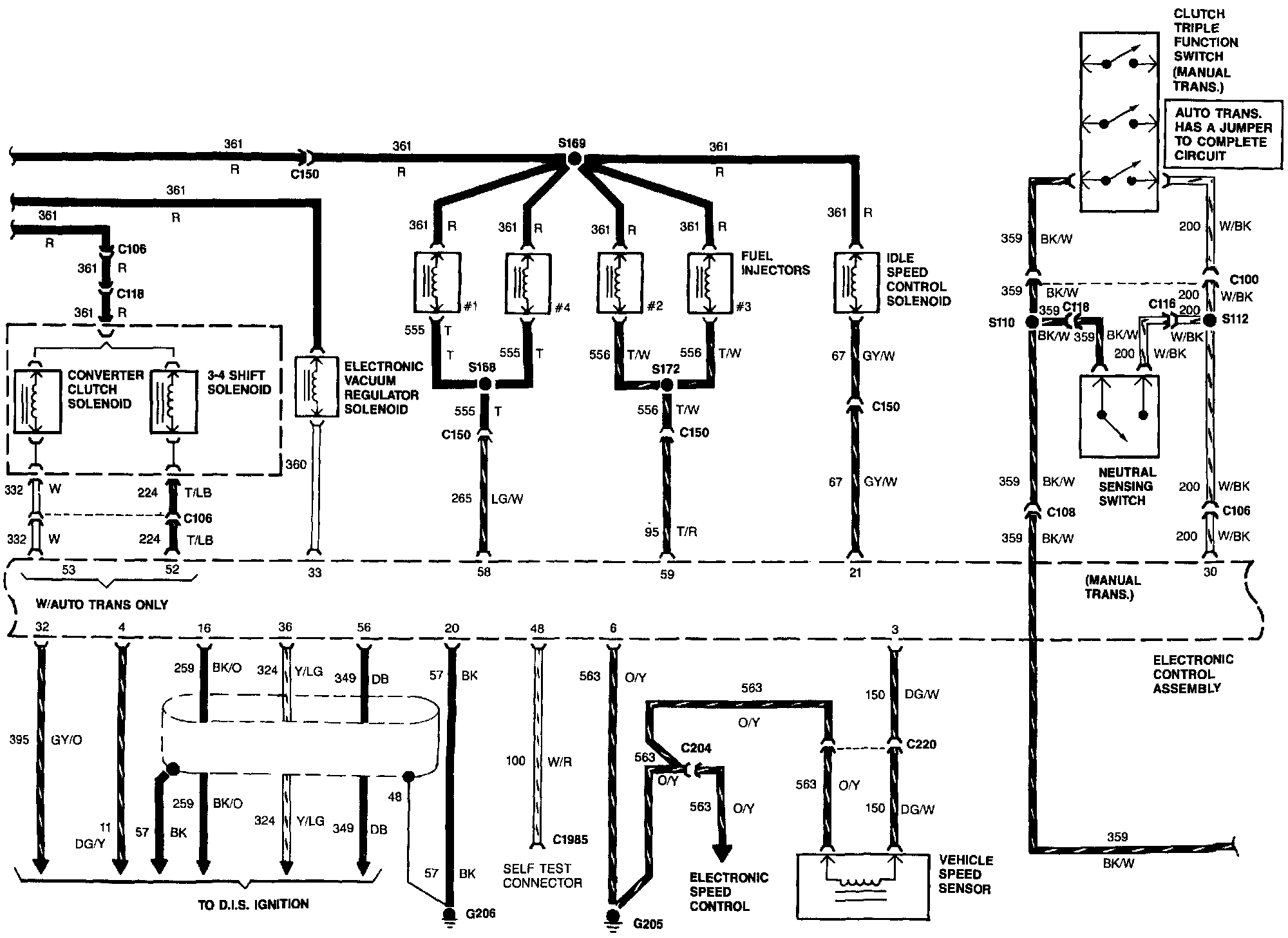

Electronic Engine Control:
Electronic Engine Control:
Vs/Electronic Engine Control:
